IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
C.
Leaf
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 08000 0031

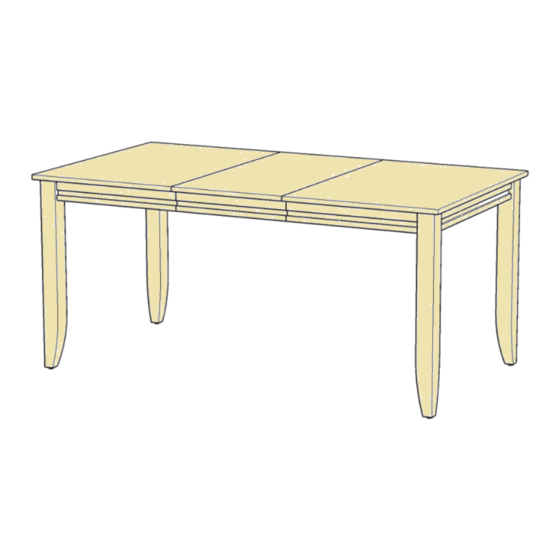

Dining Table
Spring Washer
16 pcs. (+1 extra)
Flat Washer
16 pcs. (+1 extra)
B.
Top
1 pc.
D.
Table Slide
2 pcs.
M8x45
Head Cap Bolt
8 pcs. (+1 extra)
M8x60
Head Cap Bolt (long)
8 pcs. (+1 extra)
888-680-7460, 877-831-0319
E.
Leg
4 pcs.
M3.5x45
Wood Screw
16 pcs. (+1 extra)
