IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

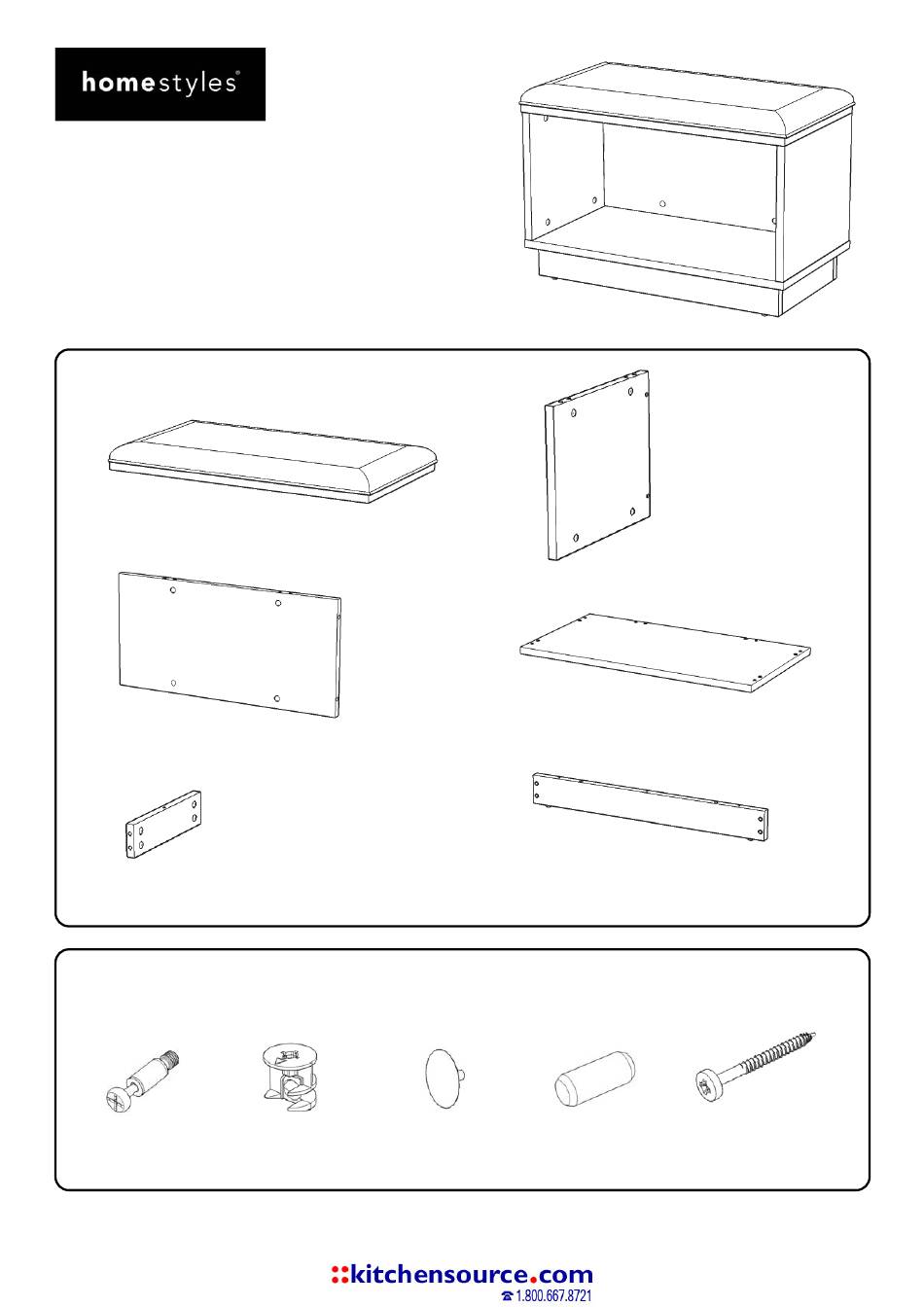

Part List
A.
Cushion
1 pc.
C.
Back Panel
1 pc.
E.
Plinth
2 Pcs.
Hardware List
Cam Lock Screw
20 pcs. (+1 extra)
Tool(s) required for assembly: Phillips screwdriver, Level
9
20 08000 0027
Storage Bench
Cam Lock
Plastic Cap
20 pcs. (+2 extra)
12 pcs. (+2 extra)
B.
Side Panel
2 Pcs.
D.
Base
1 Pc.
F.
Plinth
2 Pcs.
M3.5x64
Wood Screw
Dowel
8 pcs.(+1 extra)
20 pcs. (+2 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 08000 0027
Summary of Contents for Homestyles 20 08000 0027
- Page 1 20 08000 0027 Storage Bench IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/4 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/4 STEP 3 Wood Screw Place Base (D) upside down on a soft cloth. Insert Dowels into pre-drilled holes in Base (D). Attach unit to Base (D) with Wood Screws. (See Figure 3) Dowel Figure 3 Cam Lock Plastic Cap STEP 4 Cam Lock Screw...
- Page 4 Assembly Instructions 4/4 Cam Lock Screw STEP 5 Place Cushion (A) upside down on a soft cloth. Insert Cam Lock Screws into pre-drilled holes in Top (A). Dowel Cam Lock Plastic Cap STEP 6 Insert Dowels into pre-drilled holes in unit. Attach Cushion (A) to unit with Cam Locks.
- Page 5 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
