IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

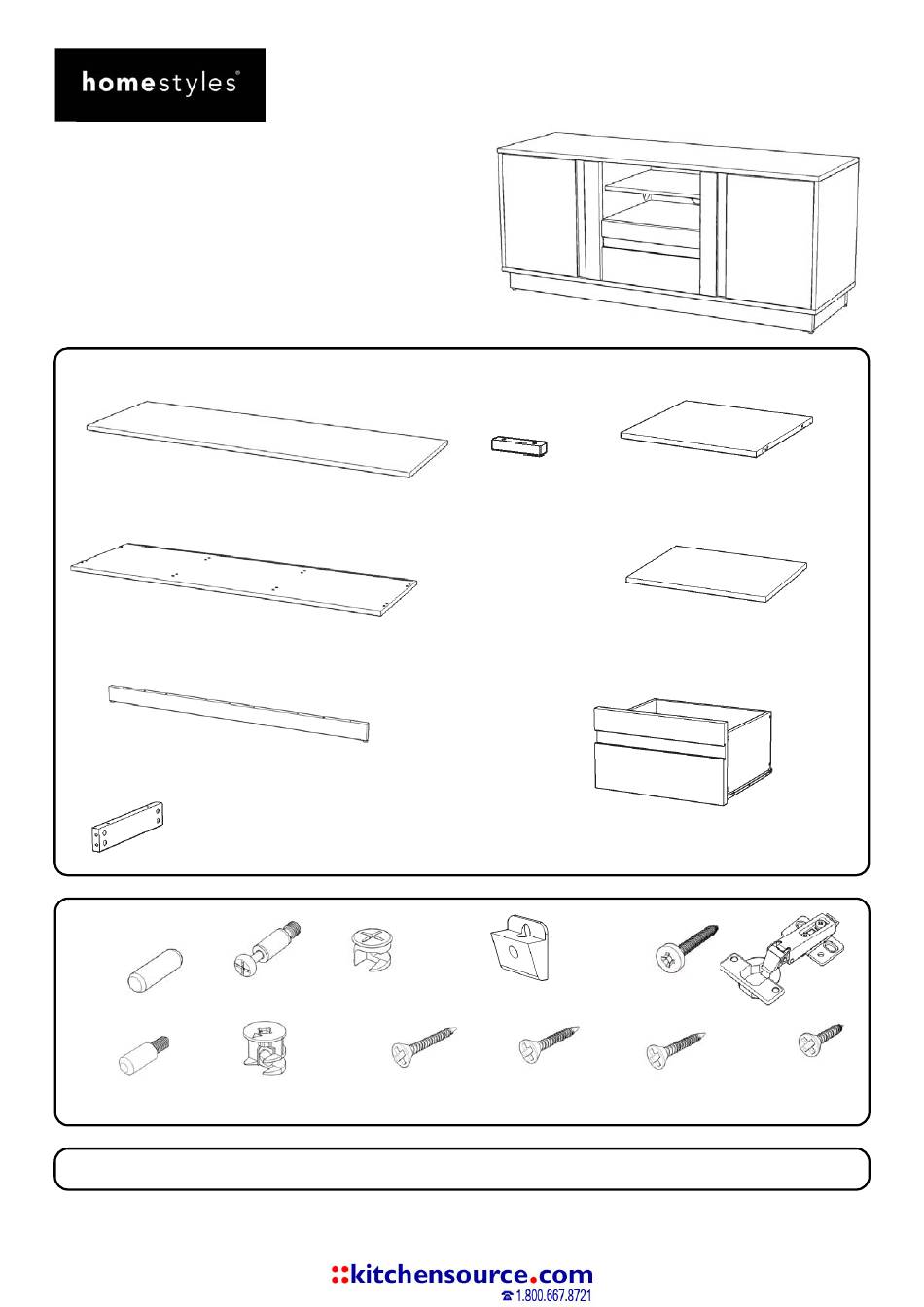

Part List
A.
Top
1 pc.
I.
Base
1 pc.
J.
Plinth
2 pcs.
K.
Plinth
2 pcs.
Hardware List
Dowel
Cam Lock Screw
26 pcs. (+1 extra)
26 pcs. (+2 extra)
Adjustable Pin
Cam Lock
20 pcs. (+1 extra)
20 pcs. (+6 extra)
Carton 20 08000 0102 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
9
20 08000 0101
Entertainment Stand
Cam Lock (small)
6 pcs. (+1 extra)
M3.5x38
Wood Screw
8 pcs. (+1 extra)
L.
Cleat
1 pc.
O.
Drawer
1 pc.
Refer to later page(s) of these
instructions for drawer assembly.
M3.5x64
Plastic Clip
Wood Screw (long)
1 pcs. (+1 extra)
6
16 pcs. (+1 extra)
M3x20
Wood Screw
M3.5x25
for Plastic Clip
Wood Screw (short)
1 pcs. (+1 extra)
6
7 pcs. (+1 extra)
F.
Shelf
1 pc.
N.
Shelf
5 pcs.
Hinge
4 pcs.
M3.5x14
Wood Screw
for Hinge
24 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles 20 08000 0101
Summary of Contents for Homestyles 20 08000 0101
- Page 1 20 08000 0101 Entertainment Stand IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/8 Cam Lock Dowel STEP 3 Place Top (A) upside down on a soft cloth. Attach Side Panels (B), (C) and unit to Top (A) with Dowels and Cam Locks. Wood Screw Dowel STEP 4 Slide Back Panels (G) and (H) into position.
- Page 4 Assembly Instructions 4/8 Cam Lock Figure 4 STEP 5 Attach Plinths (J) to Plinths (K) with Cam Locks. (See Figure 4) Wood Screw (long) Dowel STEP 6 Attach unit from Step 5 to unit from Step 4 with Dowels and Wood Screws (long) into pre-drilled holes.
- Page 5 Assembly Instructions 5/8 Drawer (O) STEP 7 Attach Drawer Sides (O3) and (O4) to Wood Screw (short) Drawer Back (O2) with Wood Screws (short). Wood Screw (short) STEP 8 Slide Drawer Bottom (O5) into grooves in Drawer Sides (O3) and (O4) until it meets Drawer Back (O2).
- Page 6 Assembly Instructions 6/8 Hinge Wood Screw for Hinge Figure 5 STEP 10 Place Doors (M) upside down on a soft cloth. Attach Hinges to Doors (M) with Wood Screws for Hinge into pre-drilled holes, then tighten. (See Figure 5) Wood Screw for Hinge STEP 11 Attach Doors (M) to unit with Wood Screws for Hinge.
- Page 7 Assembly Instructions 7/8 Adjustable Pin Figure 7 STEP 12 Insert Adjustable Pins into side panels and middle panels at desired level. (See Figure 7) Place Shelves (N) into position. Wood Screw for Plastic Clip STEP 13 Level unit by adjusting the adjustable levelers on bottom of unit.
-
Page 8: Hardware List
Assembly Instructions 8/8 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 15 Pre-drilled hole Anchor in wall Bracket Wall Screw on wall at top of unit Place unit at desired location. - Page 9 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
