1142INT TWO-BUTTON TRANSMITTER
Installation Guide

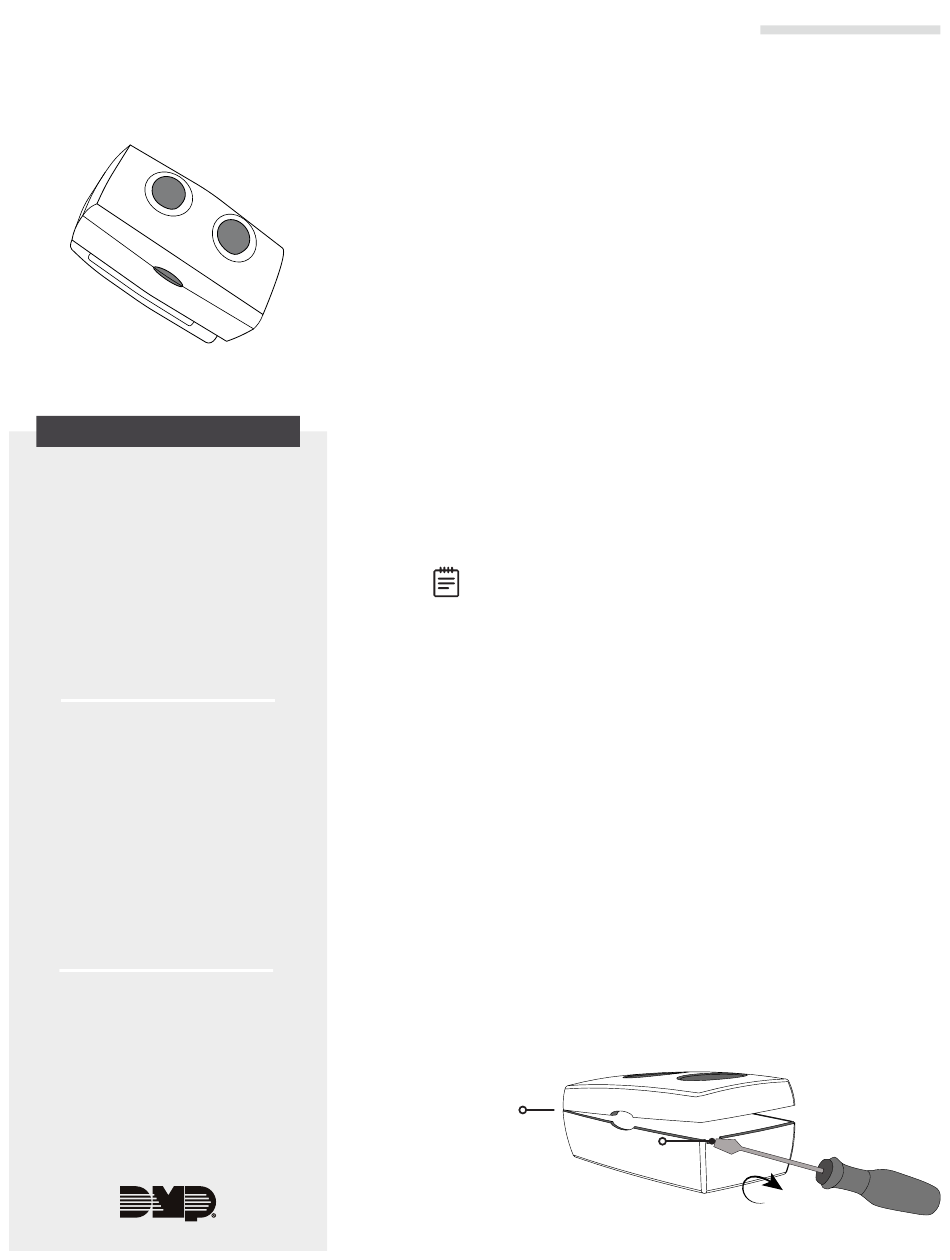

Figure 1: 1142INT Two-Button Transmitter
GET STARTED
The 1142INT is a wireless two-button
hold-up transmitter designed for
installation under the counter.
The 1142INT features 128-bit AES
encryption.
The 1142INT unit provides two
buttons that, when pressed at the
same time, send a panic message
to the control panel. The buttons
also provide an LED that can be
programmed to provide visual
indication that a panic alarm has
been transmitted.
Compatibility
• 1100XINT Wireless Receivers
Version 700 and Higher
• 1100DINT Wireless Receivers
Version 700 and Higher
• XT30INT Series Panels Version
693 and Higher
• XTLtouchINT/XTLplusINT Series
Panels Version 693 and Higher
• XR150INT/XR550INT Series
Panels Version 693 and Higher
What is Included?
• One 1142INT Two-Button
Transmitter
• One 3.0 V Lithium CR123
Battery
• Hardware Pack
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
If using an XT Series International Panel, enter 665 (PRO) at
1.
the keypad to access the PROGRAMMER menu. If using an
XR Series International Panel, enter 6653 (PROG).
In ZONE INFORMATION, enter the wireless ZONE NO:.
2.
3. Enter the zone name.
4. Select PN (panic) as the ZONE TYPE.
5. At the NEXT ZN? prompt, select NO.
6. Select YES when WIRELESS? displays.
Enter the eight-digit SERIAL# and press CMD.
7.
Enter in the SUPRVSN TIME (supervision time) and press
8.
CMD.
Note: For applications where the transmitter may be taken off-
site, set the supervision time to zero (0).
9. At LED OPER (operation), select YES to activate or NO
to not active the LED when a panic signal is transmitted
or acknowledged by the receiver. The LED pulses for five
minutes after the acknowledgment is received from the
panel.
At the NEXT ZN? prompt, select YES if you are
10.
finished programming the zone. Select NO if you would like
to access additional programming options.
11. In SYSTEM OPTIONS, at the 1100 ENCRYPTION prompt,
select ALL to only add encrypted wireless devices to the
system. Select BOTH to allow both encrypted and non-
encrypted wireless devices to be programmed.
12. The default passphrase appears at ENTER PASSPHRASE.
Press CMD to keep the default. Press any select key or
area to change the passphrase and enter an 8-character
hexadecimal string (0-9, A-F).
2
OPEN THE 1142INT TRANSMITTER
Because of the strength and the snap-on design of the plastic,
the 1142INT can only be opened by using a 3/16" slotted tip
screwdriver.
1. Insert the screwdriver in Tab 1 and twist it clockwise as seen
in Figure 2.
2. Insert the screwdriver in Tab 2 and twist it counterclockwise
until the housing completely opens.
Tab 2
Tab 1
Figure 1: Open the 1142INT
