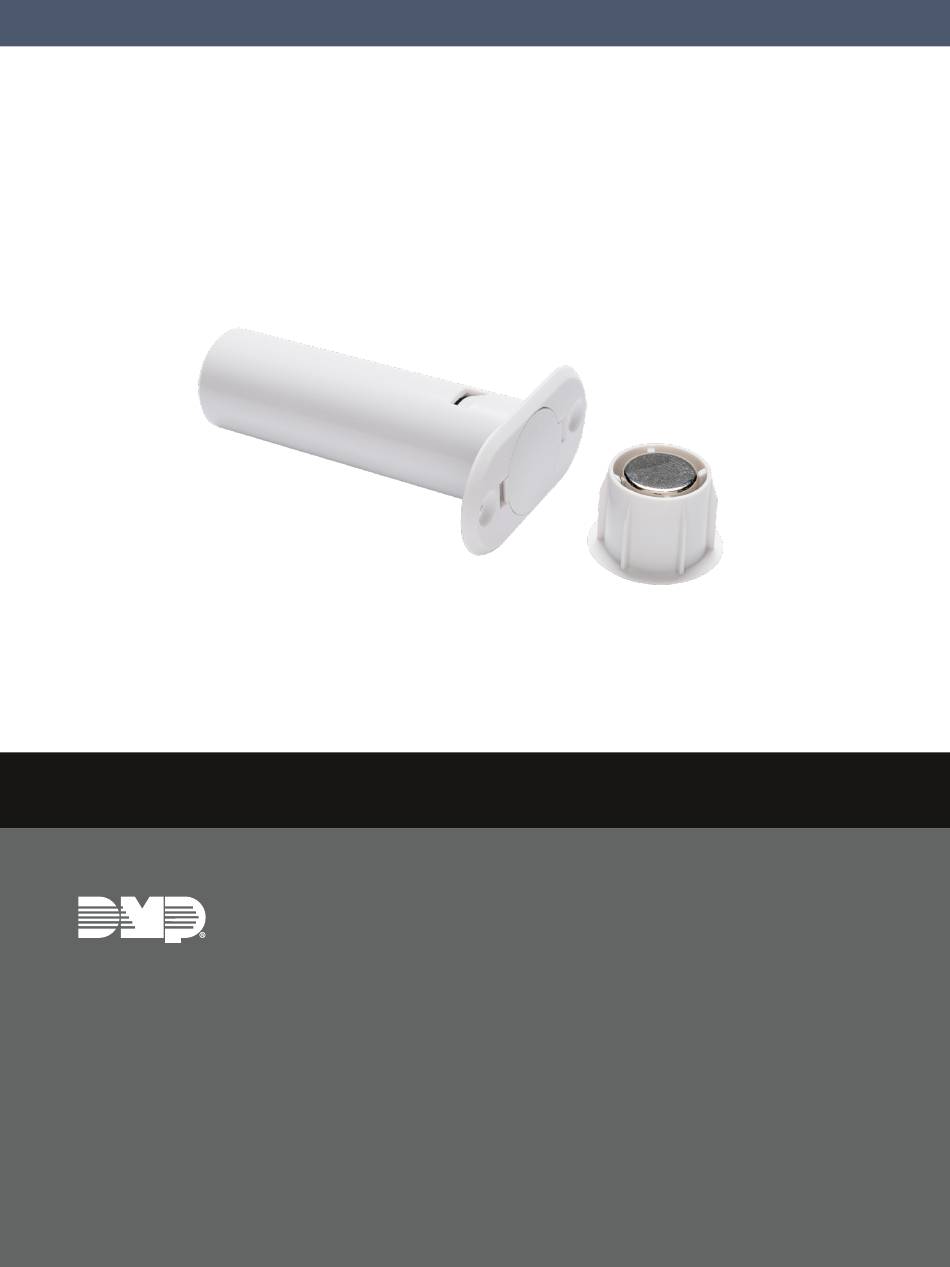

- Page 1 INSTALLATION AND PROGRAMMING GUIDE 1132 Recessed Contact...
- Page 2 The 1132 is a wireless recessed contact that provides concealed protection for doors, windows, or any other application needing a discreet solution. As with all DMP 1100 Series transmitters, the onboard LED provides built‑in survey capability to allow for single‑person installations, eliminating the requirement for an external survey kit. The 1132 transmits Normal, Alarm, and Low Battery conditions.
- Page 3 PROGRAM THE PANEL Refer to the panel programming guide as needed. After completing each of the following steps, press CMD to advance to the next prompt. At a keypad, enter 6653 (PROG) to access the Programmer Menu. At ZONE INFORMATION, enter the wireless zone number. At *UNUSED*, enter the zone name.
- Page 4 INSTALL THE TRANSMITTER Install the Battery Use only 3.6V 1/2 AA Lithium batteries. Grasp the PCB and remove it from the housing. Place the battery into the battery tray with the positive end of the battery facing the transmitter PCB. Slide the battery tray and PCB into the housing.
- Page 5 Mount the Transmitter and Magnet To install the transmitter, use a 3/4 inch drill bit and drill a hole at least 2 3/4 inch deep in the frame at the desired location. Caution: Avoid drilling in areas where electrical wiring runs through the wall. Insert the transmitter housing into the hole until the flange is flush with the door jamb.
- Page 6 The keypad displays SENSORS OFF followed by SENSORS ON. REFERENCE Compatibility ▶ All 1100 Series Wireless Receivers ▶ All Panels with Built‑In 1100 Series Wireless Receivers Patents ▶ U. S. Patent No. 7,239,236 1132 Installation and Programming Guide | Digital Monitoring Products...
- Page 7 SPECIFICATIONS Battery Life Expectancy 5 years (normal operation) Type 3.6V Lithium 1/2 AA Battery Frequency Range 905‑924 MHz Dimensions Transmitter Housing 2.50 L x 0.75 DIA in 0.98 L x 0.30 DIA cm Magnet Housing 0.63 L x 0.75 DIA in 0.25 L x 0.30 DIA cm Housing Material Flame retardant ABS...
