DMP Electronics 1103 Series Installation Manual

1103 SERIES WIRELESS
UNIVERSAL TRANSMITTER
Installation Guide

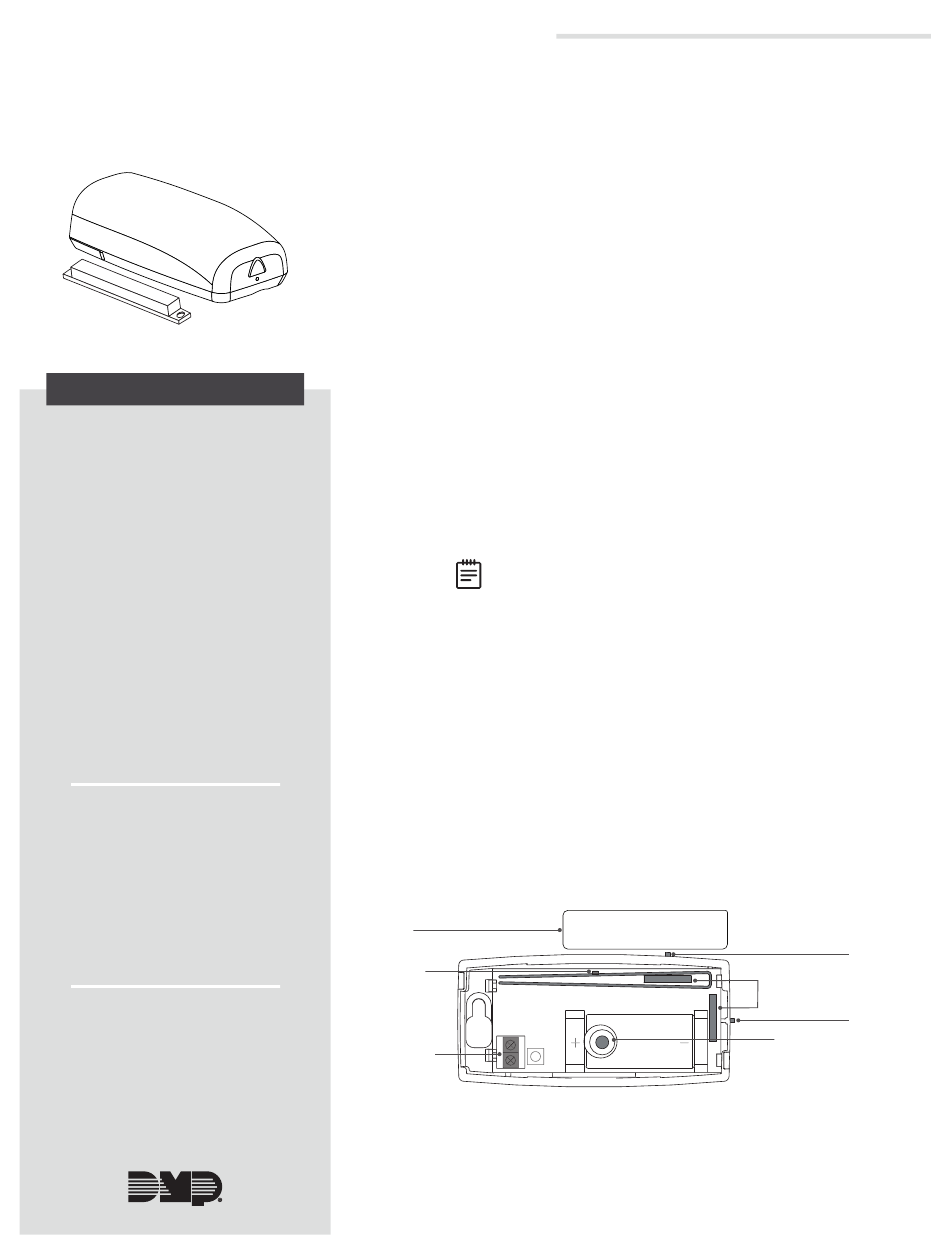

Figure 1: 1103 Universal Transmitter
DESCRIPTION
The 1103 Series Wireless Universal
Transmitters are two-way
supervisory wireless transmitters
typically used for commercial
fire or burglary door and window
applications. The 1103E features
128-bit AES encryption.
The transmitter provides a cover
tamper, magnetic reed switch,
and an onboard terminal block for
external contact wiring. Both sets
of contacts can be programmed
to operate at the same time. This
allows two independent zones to
operate from one 1103.
The 1103 Series also features
Disarm/Disable functionality. When
this option is enabled, Zone Tripped
messages are disabled when the
system is disarmed.
Compatibility
All DMP XR Series panels and all 1100
Series Wireless Receivers. For details
about XT Series compatibility, refer to
"Compatibility".
To enable encryption on 1103E models,
Version 183 is required for XT and
XR Series panels and Version 300 is
required for Wireless Receivers.
What is Included?
• One 1103 Transmitter
• One Commercial Magnet
• One 3 V lithium CR123A battery
• One 470K EOL Resistor
• Hardware pack
1

PROGRAM THE PANEL

Refer to the panel programming guide as needed. After completing each of
the following steps, press CMD to advance to the next prompt.
At a keypad, enter 6653 (PROG) to access the Programmer Menu.
1.
2. (1103E only) Go to SYSTEM OPTIONS. At 1100 ENCRYPTION, select
ALL to only add encrypted wireless devices to the system. Select
BOTH to allow both encrypted and non-encrypted wireless devices
to be programmed.
3. (1103E only) The default passphrase appears at the ENTER
PASSPHRASE prompt. Press CMD to keep the default. Press
any select key or area to change the passphrase and enter an
8-character hexadecimal string (0-9, A-F).
At ZONE INFORMATION, enter the wireless zone number.
4.
5. At *UNUSED*, enter the zone name.
At ZONE TYPE, press any select key or area and select the zone
6.
type.
7. At the NEXT ZN? prompt, select NO.
8. When WIRELESS? displays, select YES.
At SERIAL#, enter the eight-digit device serial number.
9.
10. At CONTACT, select either INTERNAL or EXTERNAL.
Note: Use consecutive zone numbers if using both internal and
external contacts. Program the external contact first if using both
internal and external contacts with Disarm/Disable functionality
At SUPRVSN TIME, enter a supervision time. Default is 240.
11.
12. At DISARM DISABLE, select NO or YES.
13. At the NEXT ZONE prompt, select YES if you are finished
programming the zone. Select NO if you would like to access
additional programming options.
14. To save panel programming, go to STOP and press CM
2

INSTALL THE BATTERY

Use a 3.0 V lithium battery, a DMP Model CR123A battery, or an equivalent
model from Sony or Murata. For listed installations, use either an Energizer®
123 battery or a CR123A battery manufactured by Panasonic or Tekcell.
1. Push the button on the end of the transmitter and separate the two
halves.
2. Observing polarity, place the battery in the holder and press it into
place. Refer to Figure 2 during installation.
Magnet
Red Survey
LED
External Contact
Terminal Block
Figure 2: Transmitter Components
Internal Contact
Magnetic Reed Switches
Battery Location
Mounting Hole
D.
Magnet Alignment
Marker
Magnet Alignment
Marker
