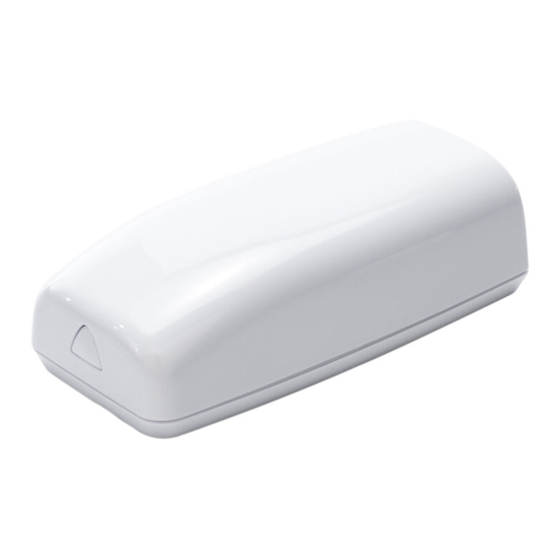

- Page 1 INSTALLATION GUIDE 1101 Series Wireless Univeral Transmitter...
- Page 2 Both sets of contacts, internal and external, can be programmed to operate at the same time. This allows two independent zones to operate from one 1101. The 1101 Series also features Disarm/Disable functionality. When this option is enabled, Zone Tripped messages are disabled when the system is disarmed.
- Page 3 Push the button on the end of the transmitter and separate the two halves. Observing polarity, place the battery in the holder and press it into place. Refer to Figure 1 during installation. 1101 Series Installation Guide | Digital Monitoring Products...
- Page 4 Place and hold the magnet cover directly on the door closest to the magnetic reed switch, no more than 1/2” (1.3 cm) apart from the transmitter. Figure 4: Commercial Installation Use the provided #4 screws to mount the cover. See Figure 4. Figure 5: Placement Options 1101 Series Installation Guide | Digital Monitoring Products...
- Page 5 Once the battery is replaced, a sensor reset is required at the keypad to clear the LOBAT message. On an LCD keypad, press and hold 2 for two seconds. On a graphic touchscreen keypad, press RESET. Enter your user code, if required. The keypad displays SENSORS OFF followed by SENSORS ON. 1101 Series Installation Guide | Digital Monitoring Products...
- Page 6 Household Burglar Alarm System Units Accessory Magnetically Activated Switch or Door Contact Transmitter ANSI/UL 634 Connections and Switches for use with Burglar Alarm Systems Accessory Patents ▶ U. S. Patent No. 7,239,236 1101 Series Installation Guide | Digital Monitoring Products...
- Page 7 FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made by the user and not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
