DMP Electronics 1107 Installation Manual

1107 MICRO WINDOW TRANSMITTER
Installation Guide

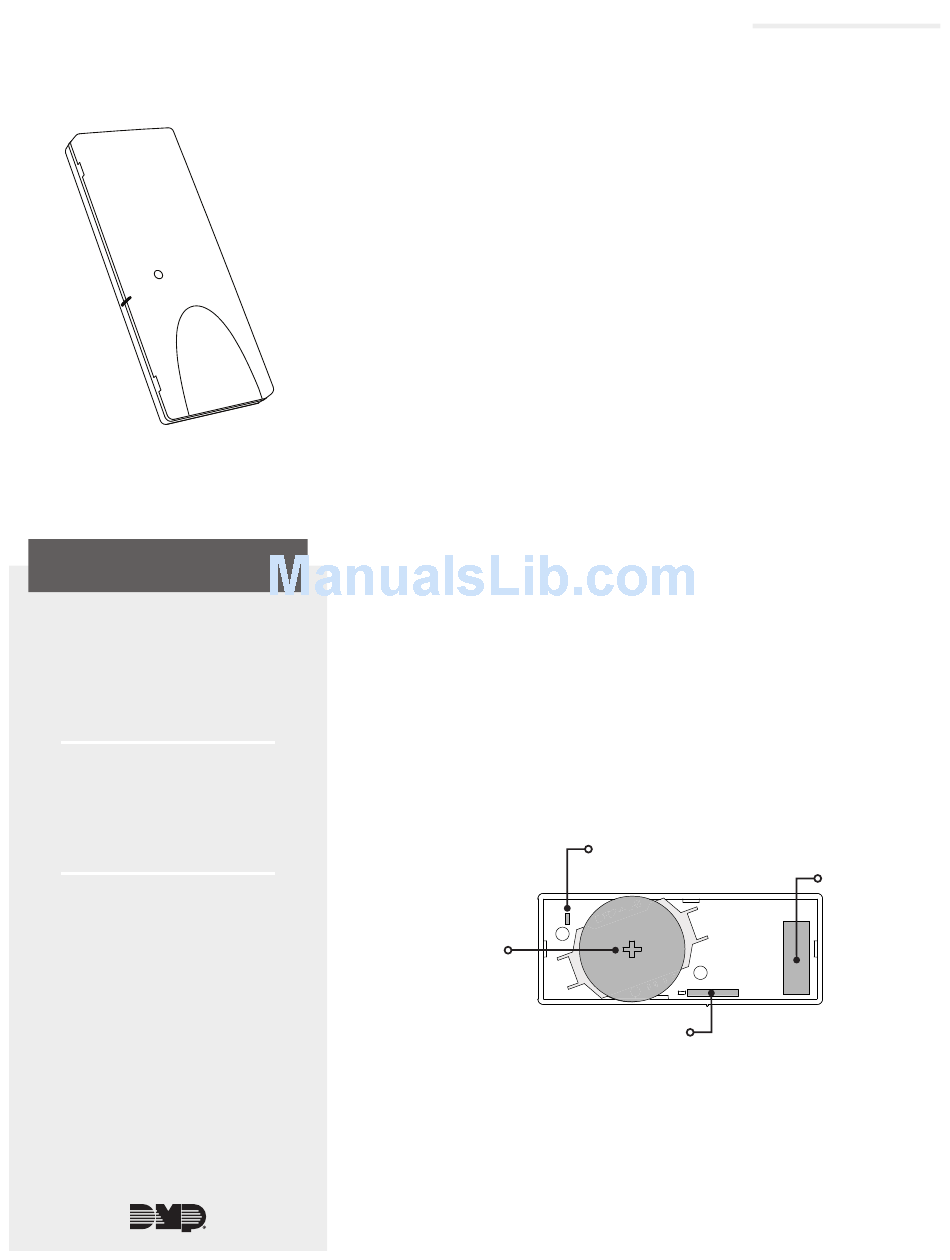

Figure 1: 1107 Micro
Window Transmitter
DESCRIPTION
The 1107 Micro Window Transmitter is
a low-profile 1100 Series transmitter
that can be used on windows. It is
powered by a 3V coin cell battery
and contains a single reed switch.
Compatibility
All DMP 1100 Series Wireless
Receivers and burglary panels.

What is Included?

• 1107 transmitter PCB
mounted in a two-part
housing
• One magnet with
a standard and a
commercial housing
• One CR2430 3V coin cell
Lithium battery
• Double-sided tape
1
PROGRAM THE PANEL
When programming the 1107 in the panel, refer to the panel
programming guide as needed.
In ZONE INFORMATION, enter the wireless ZONE number.
1.
Enter the ZONE NAME.
2.
Select NT (Night) as the ZONE TYPE.
3.
Select the AREA.
4.
At the NEXT ZONE prompt, select NO.
5.
Select YES when WIRELESS? displays.
6.
Enter the eight-digit SERIAL# and press CMD. See Figure
7.
2 for the serial number location.
Enter the SUPRVSN TIME and press CMD.
8.
At the NEXT ZONE prompt, select YES if you are finished
9.
programming the zone. Select NO if you would like to
access additional programming options.
2
INSTALL THE BATTERY
After the transmitter has been programmed into the panel, install
the battery. Use a 3.0V lithium battery, DMP Model CR2432, or
the equivalent battery from a local retail outlet. Keep in mind,
when setting up a wireless system, program zones and connect
the receiver before installing batteries in the transmitters.
1. Insert a small screwdriver into each notch in the housing
cover and lift until the cover comes off. Do not twist the
screwdriver.
2. Observing polarity, place the battery in the holder with
the positive (+) side up. Press it into place. See Figure 2
for the battery location.
Battery
Location
Figure 2: Battery Location and
Survey
LED
Internal
Reed Switch
PCB Features
Serial
Number
