DMP Electronics 1141 Installation Manual

1141 WALL BUTTON TRANSMITTER
Installation Guide

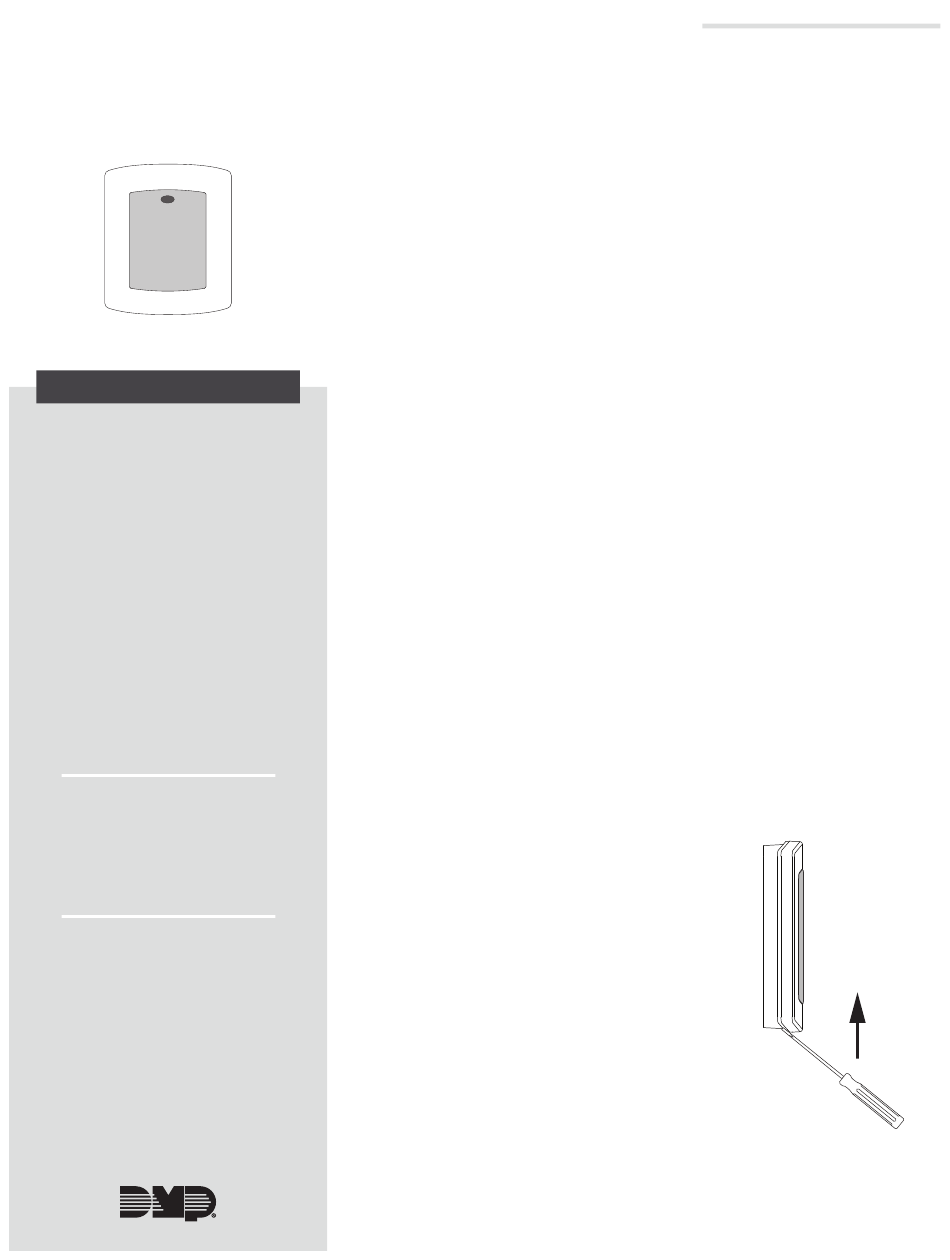

Figure 1: 1141 Wireless Wall Button
DESCRIPTION
The 1141 Wall Button is a one-button
wireless transmitter. The transmitter
may be used for a variety of
applications such as arming,
disarming, toggling an output,
activating a Z-Wave favorite, or
activating a panic or emergency
alarm.
The 1141 features a water-resistant
button (when installed with
double-sided tape) with a
status LED. Double-sided tape
is not included. If activated in
programming, the LED provides
visual indication that a message has
been transmitted and received by
the panel. The 1141 receives power
from two supplied 3.0 V lithium
batteries.
Compatibility
• All 1100 Series Wireless Receivers
and panels with built-In 1100
Series Wireless Receivers
What is Included?
• One 1141 Wall Button Transmitter
• Two batteries (3.0 V lithium
CR2430)
• Hardware pack
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
After completing each of the following steps, press CMD to
advance to the next prompt.
1. At a keypad, enter 6653 (PROG) to access the Programmer
Menu.
At ZONE INFORMATION, enter the wireless zone number.
2.
At *UNUSED*, enter the zone name.
3.
4. At ZONE TYPE, press any select key or area and select the
zone type.
5. At the NEXT ZN? prompt, select NO.
When WIRELESS? displays, select YES.
6.
7. At SERIAL#, enter the eight-digit device serial number.
8. At SUPRVSN TIME, enter a supervision time. Default is 240.
9. At LED OPER, select one of the following options:
• YES: The LED blinks when the button is pressed, then
once every second for five minutes to confirm that a
message was sent
• NO: The LED blinks once when the button is pressed to
confirm that a message was sent
10. At the NEXT ZN? prompt, select YES if you are finished
programming the zone. Select NO if you would like to access
additional programming options.
11. To save panel programming, go to STOP and press CMD.
2
INSTALL THE BATTERY
Refer to Figures 2, 3, and 4 during battery installation.
1. Open the 1141 by inserting a
small flat head screwdriver in
the tab.
2. Gently pull upward on the
screwdriver handle until the
housing completely opens.
3. Press the top and bottom PCB
snaps and carefully lift the
bottom of the PCB out of the
housing. Do not disassemble
the button and gasket from the
top housing.
4. Observing polarity, insert the
included batteries into the
holder and press them into
place.
5. Insert the bottom of the PCB
into the bottom PCB snap.
6. Lift up the top PCB snap and press the PCB into place.
Do not snap the transmitter cover back onto the base until after
mounting the 1141.
Insert small
screwdriver
and lift to
remove top
housing.
Do not twist.
Figure 2: Removing the
Housing
