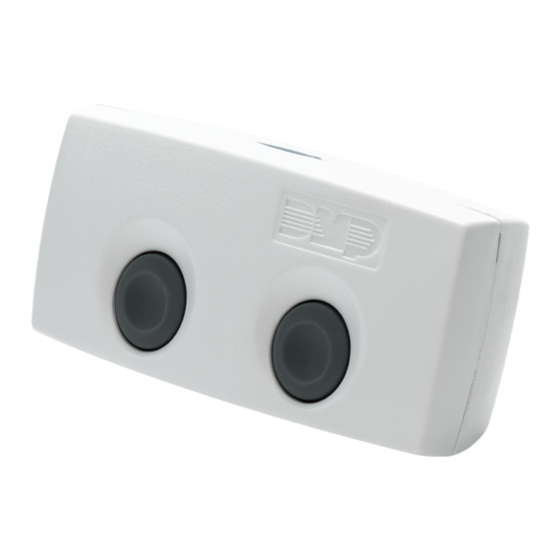

- Page 1 INSTALLATION GUIDE 1142 Series Wireless Two-Button Transmitter...
- Page 2 Both 1142 Series units provide two buttons that, when pressed at the same time, send a panic message to the control panel. They also provide an LED that can be programmed to provide visual indication that a panic alarm has been transmitted.
- Page 3 Insert the screwdriver in Tab 1 and twist it clockwise as seen in Figure 2. Figure 1: Open the 1142 Insert the screwdriver in Tab 2 and twist it counterclockwise until the housing completely opens. 1142 Series Installation Guide | Digital Monitoring Products...
- Page 4 With the 1142 already open, observe polarity and place the battery in the holder and press it into place. Select a Location The 1142 Series Wireless Two-Button Transmitter provides a Survey LED Antenna capability to allow one person to confirm communication with the wireless Tamper Switch receiver or panel while the cover is removed.
- Page 5 At the keypad, enter 8144 (WALK) and select WLS. If the transmitter fails to check in at the keypad, ensure that it is wired properly and check for sources of interference such as metal objects and electronic equipment. 1142 Series Installation Guide | Digital Monitoring Products...
- Page 6 Flame retardant ABS CERTIFICATIONS ▶ FCC Part 15 Registration ID CCKPC0191 ▶ Industry Canada Registration ID 5251A-PC0191 Underwriters Laboratory (UL) Listed ANSI/UL 636 Holdup Alarm Units and Systems Accessory Patents U.S. Patent No. 7,239,236 1142 Series Installation Guide | Digital Monitoring Products...
- Page 7 FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made by the user and not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
