DMP Electronics 1144INT Series Installation Manual

1144INT SERIES KEY FOB
TRANSMITTERS
Installation Guide
Figure 1: 1144INT Series Key Fob
Transmitter
DESCRIPTION
The 1144INT Series Wireless Key
Fob transmitters are available
in the following configurations:
1144‑1INT One‑Button,
1144‑2INT Two‑Button, and
1144‑4INT Four‑Button.
Each 1144INT Series Wireless Key Fob
features a durable water‑resistant
housing designed to be clipped to a key
ring or lanyard, an ergonomic button
design for ease of use, and a status
feedback LED for visual confirmation.
The button status LED responds with
specific color‑coded LED displays to
indicate system status.
The key fobs feature 128‑bit AES
encryption.
Compatibility
• 1100XINT Wireless Receiver v700
and Higher
• 1100DINT Wireless Receiver v700
and Higher
• XT30INTSeries Panel v700 and
Higher
• XR150INT/XR550INT Series Panel
v693 and Higher
What is Included?
• One Key Fob Transmitter
• One Sony® CR2430 3.0 V Lithium
Coin Cell Battery
• Peel‑off Button ID Labels
• Serial Number Label
OPERATION
Each button on the key fob can be individually programmed for one
of nine different actions.

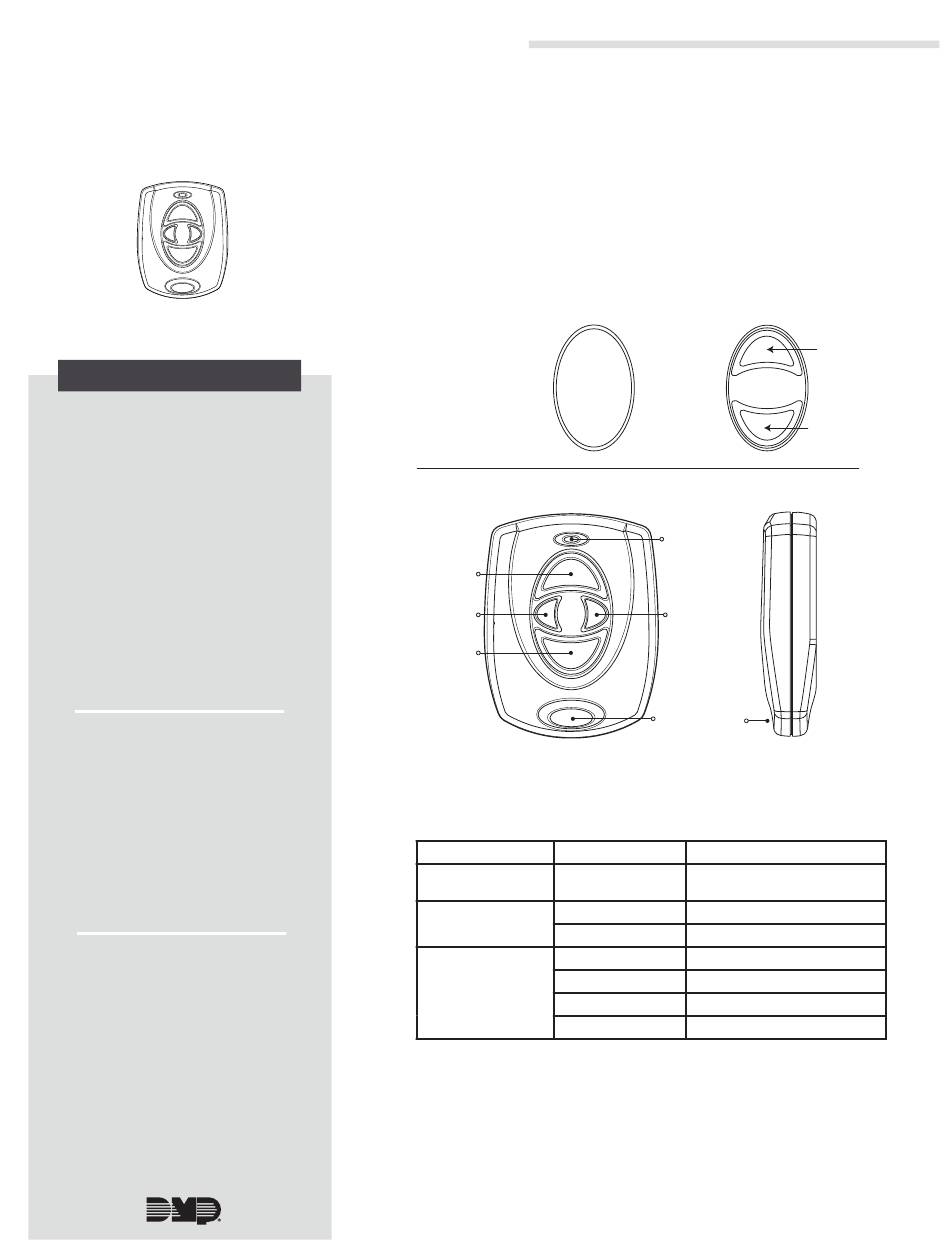

Figure 2 shows the key fob button configurations. Table 1 shows the
default programming for each button.
Front View
Top Button
Left Button
Bottom Button
Figure 2: 1144INT Series Key Fob Transmitters
Key Fob Model
1144‑1INT
One‑Button
1144‑2INT
Two‑Button
1144‑4INT
Four‑Button
Table 1: Default Key Fob Programming
1144-1INT
2-Button Layout
1-Button Layout
One (Top)
Button
1144-4INT 4-Button Layout
LED
Front
Right Button
Connect Key Ring or
Lanyard Here
Button Position Default Programming
Top Panic
Top Arm
Bottom Disarm
Top Arm
Bottom Disarm
Left Panic
Right Arm Area 1 or Perimeter
1144-2INT
Top
Button
Bottom
Button
Side View
Back
