DMP Electronics 1142INT Installation Manual

1142 INTERNATIONAL
WIRELESS TWO-BUTTON TRANSMITTER
Installation Guide

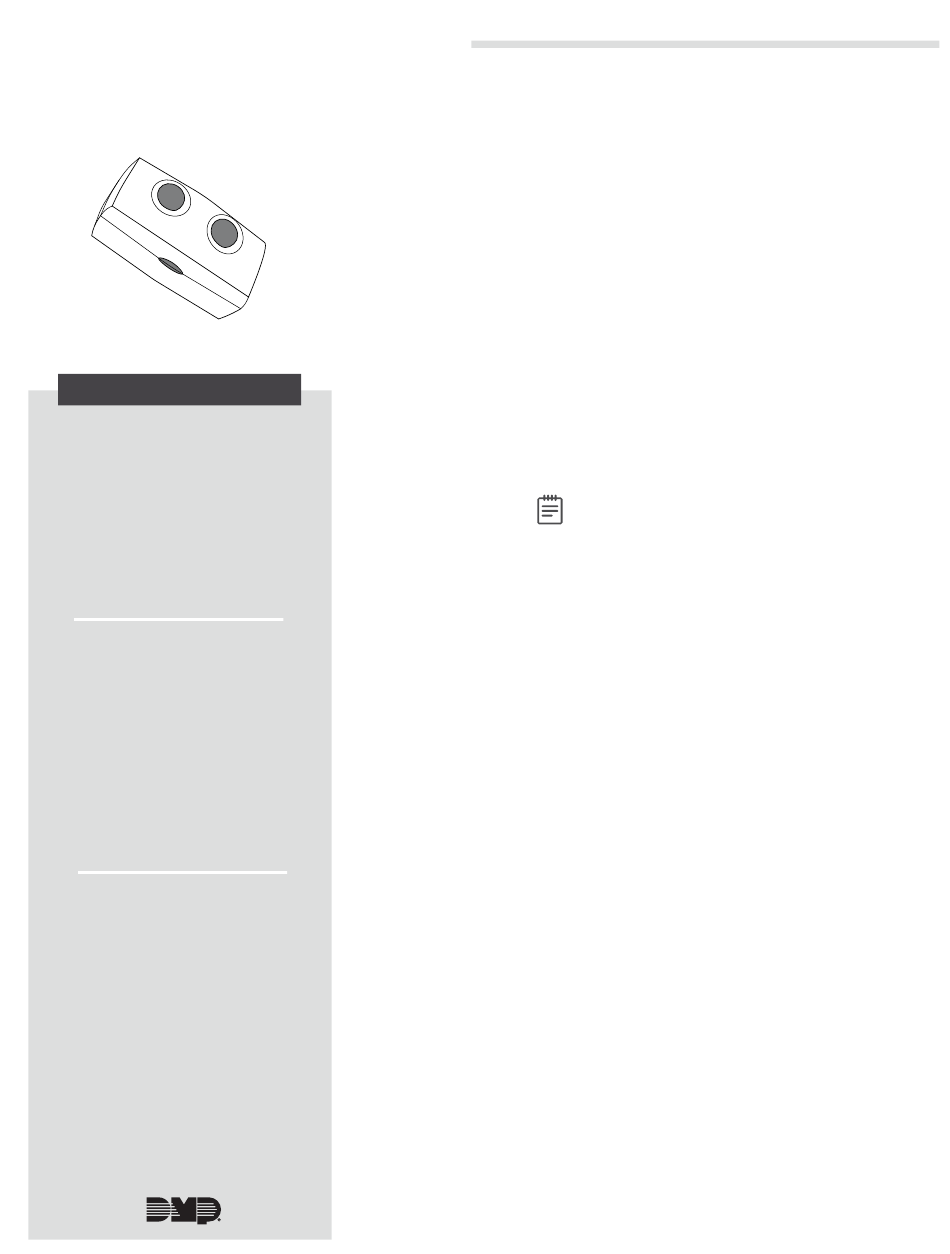

Figure 1: 1142INT Wireless
Two-Button Transmitter
DESCRIPTION
The 1142INT is a wireless two‑button
hold‑up transmitter designed for
installation under the counter. The
1142INT features 128‑bit AES encryption.
The 1142INT unit provides two buttons
that, when pressed at the same time,
send a panic message to the control
panel. The buttons also provide an LED
that can be programmed to provide
visual indication that a panic alarm has
been transmitted.
Compatibility
• 1100XINT Wireless Receivers
Version 700 and Higher
• 1100DINT Wireless Receivers
Version 700 and Higher
• XT30INT/XT50INT Series Panels
Version 693 and Higher
• XTLplusINT/XTLtouchINT Series
Panels Version 693 and Higher
• XR150INT/XR550INT Series Panels
Version 693 and Higher
What is Included?
• One 1142INT Two‑Button Panic
Transmitter
• One 3.0 V Lithium CR123A Battery
• Hardware Pack
1
PROGRAM THE PANEL
When programming the 1142INT in the panel, refer to
the panel programming guide as needed. For your
convenience, an additional pre‑printed serial number
label is included.
In ZONE INFORMATION, enter the wireless
1.
ZONE NO:.
2. Enter the zone name.
3. Select PN (panic) as the ZONE TYPE.
4. At the NEXT ZN? prompt, select NO.
5. Select YES when WIRELESS? displays.
6. Enter the eight‑digit SERIAL# and press CMD.
Enter in the SUPRVSN TIME (supervision time)
7.
and press CMD.
Note: For applications where the
transmitter may be taken off‑site, set the
supervision time to zero (0).
8. At LED OPER (operation), select YES to activate
or NO to not activate the LED when a panic
signal is transmitted or acknowledged by the
receiver. The LED pulses for five minutes after
the acknowledgement is received from the
panel.
9. At the NEXT ZN? prompt, select YES if you
are finished programming the zone. Select
NO if you would like to access additional
programming options.
10. In SYSTEM OPTIONS, at the 1100 ENCRYPTION
prompt, select ALL to only add encrypted
wireless devices to the system. Select BOTH
to allow both encrypted and non‑encrypted
wireless devices to be programmed.
11. The default passphrase appears at
ENTER PASSPHRASE. Press CMD to keep the
default. Press any select key or area to change
the passphrase and enter an 8‑character
hexadecimal string (0‑9, A‑F).
