4.4.3 C (Connection)

Set the Connection on this screen.
Refer to 3.1 Connection for details of the Connection.
Select C
Select C0 to C31.
Right-click to copy
and paste only
when the setting
values are normal.
Table 21. C (Connection) Setting Parameters
ITEM
Mode
CH name / CH comment
Protocol
IP address
Port address
Sampling rate
Timeout
Modbus/TCP
SLMP

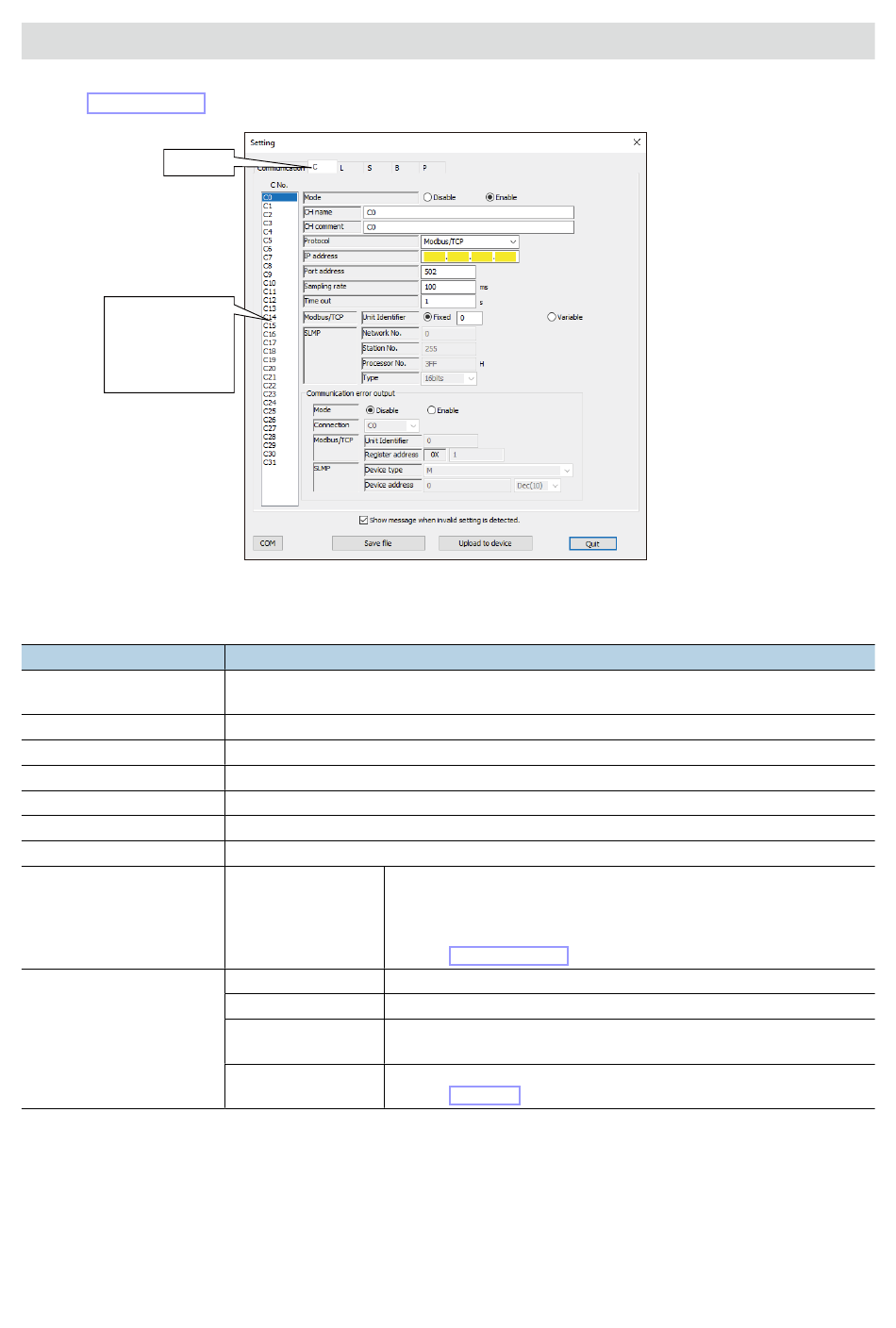

Figure 9. C (Connection) Setting Screen
Enable / Disable Connection.
Following parameters are configurable when Enable is selected.
Enter the CH name and comment in 32 characters or less.
Select Modbus/TCP or SLMP.
Set the IP address of the connecting device.
Set the connecting port address from 0 to 65535.
Set the sampling rate of the Connection from 0 to 30000 (msec.).
Set the communication timeout from 1 to 60 (sec.)
Unit Identifier Select Fixed / Variable.
When Fixed is seleced, set the common unit identifier to Connection.
When Variable is selected, set the unit identifier individually for each
internal register.
Refer to 3.4 Modbus/TCP
Network No. Set the network No. of the programable controller.
Station No. Set the station No. of the programable controller.
Processor No. Set the processor no. of the programmable controller in the hexa-
decimal number from 0x0000 to 0xFFFF.
Type Select the sub-command type of SLMP from 16-bits or 32-bits.
Refer to 3.5 SLMP
DESCRIPTION
JC-IO USERS MANUAL EM-9044-B 21
