Connection Diagram; Wiring Instructions; Screw Terminal - M-system R7E-MS4 Instruction Manual

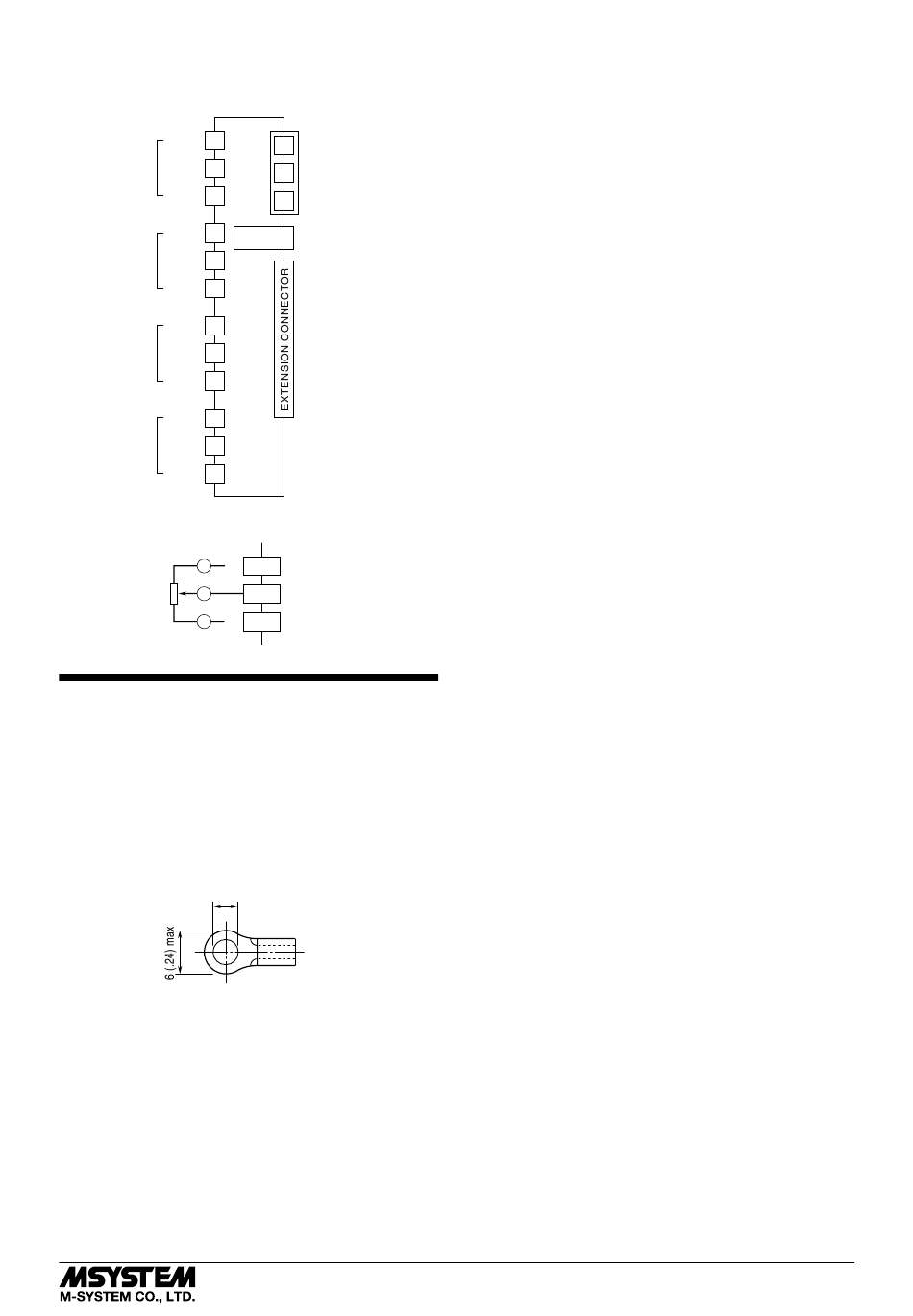

■ CONNECTION DIAGRAM

Note: In order to improve EMC performance, bond the FG terminal to ground.
Caution: FG terminal is NOT a protective conductor terminal.
INPUT 0
10
H0
11
S0
2
L0
INPUT 1
12
H1
13
S1
4
L1
INPUT 2
15
H2
16
S2
7
L2
INPUT 3
17
H3
18
S3
9
L3
■ Input Connection Example
POTENTIOMETER
max.
+
3
2
–
1
min.

WIRING INSTRUCTIONS

■ SCREW TERMINAL

Torque: 0.5 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable.
Applicable wire size: 0.25 to 1.65 mm
Recommended manufacturer: Japan Solderless Terminal
MFG. Co., Ltd, Nichifu Co., Ltd
3.3 (.13) max
6
24V DC
7
0V
3
FG
RJ-45
Modbus/TCP
CONNECTOR
Hn
Sn
Ln
(AWG 22 to 16)
2
mm (inch)
