5.2 Monitoring

5.2.1 Monitoring Index Screen

Click [Monitoring] to show the monitoring index screen.

5.2.2 Monitoring Screen (L)

Click [L] to show the monitoring screen for L register.
This screen shows the list of L register.
Clicking the "L" button while monitoring the list of L registers the automatic update cycle can be set from 1 to
999 seconds.
This screen can manipulate output data manually, so in case of emargency, parameters are configurable by
manual operation. Click [Control] button of each channel and input the value to the input dialog, then click OK.
The background of the channel under manual operation turns to yellow, as shown in the figure below.
Click [Control End] button to finish manual operation and returns to I/O communicating status.
The manual operation status is not retained in the power failure.
Refer to 2.2 Internal Register or the relationship with SWAP.
Click

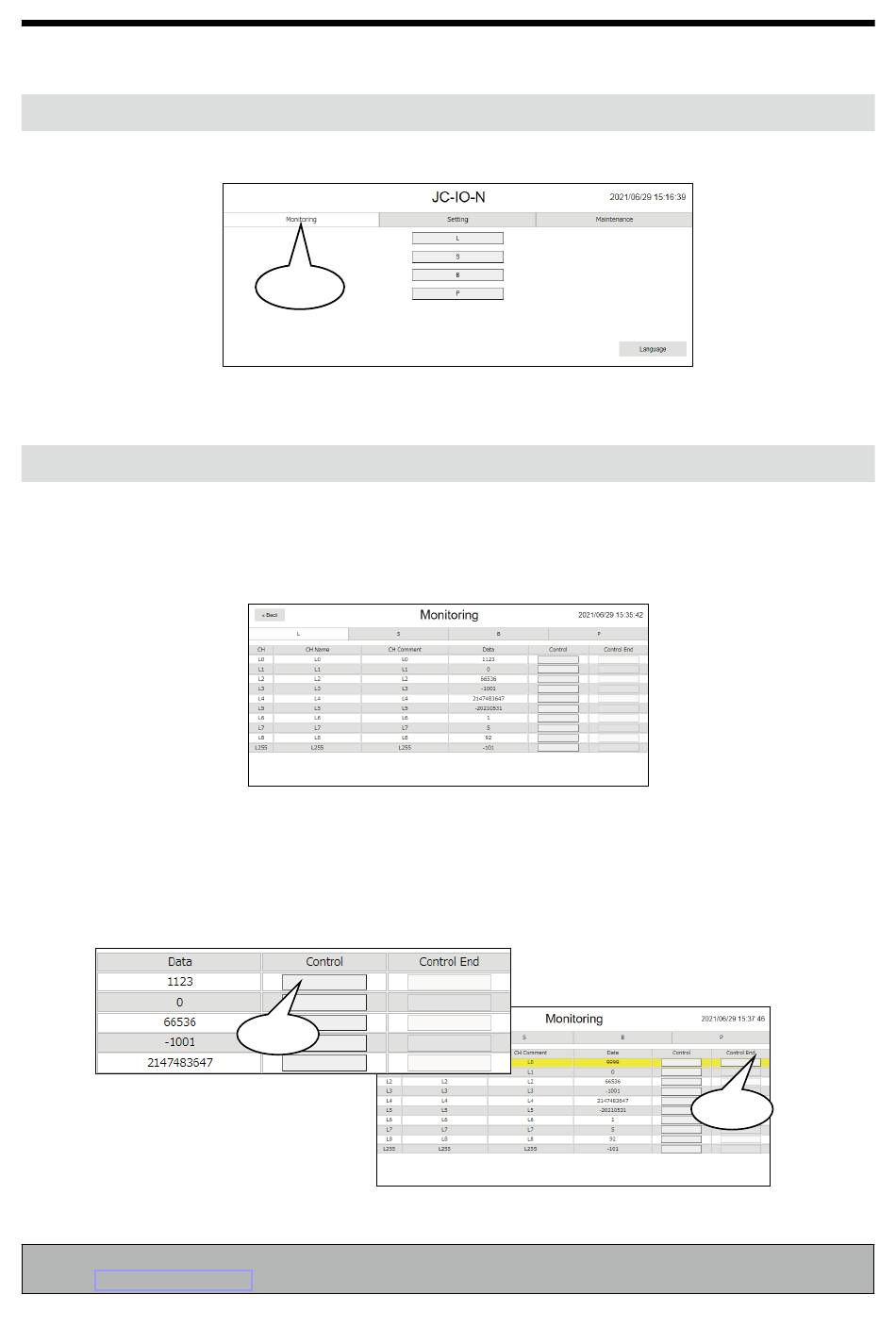

Figure 18. Monitoring Index Screen
Figure 19. Monitoring Screen (L)
Click
Figure 20. Monitoring Screen (L) Manual Operation
Click
