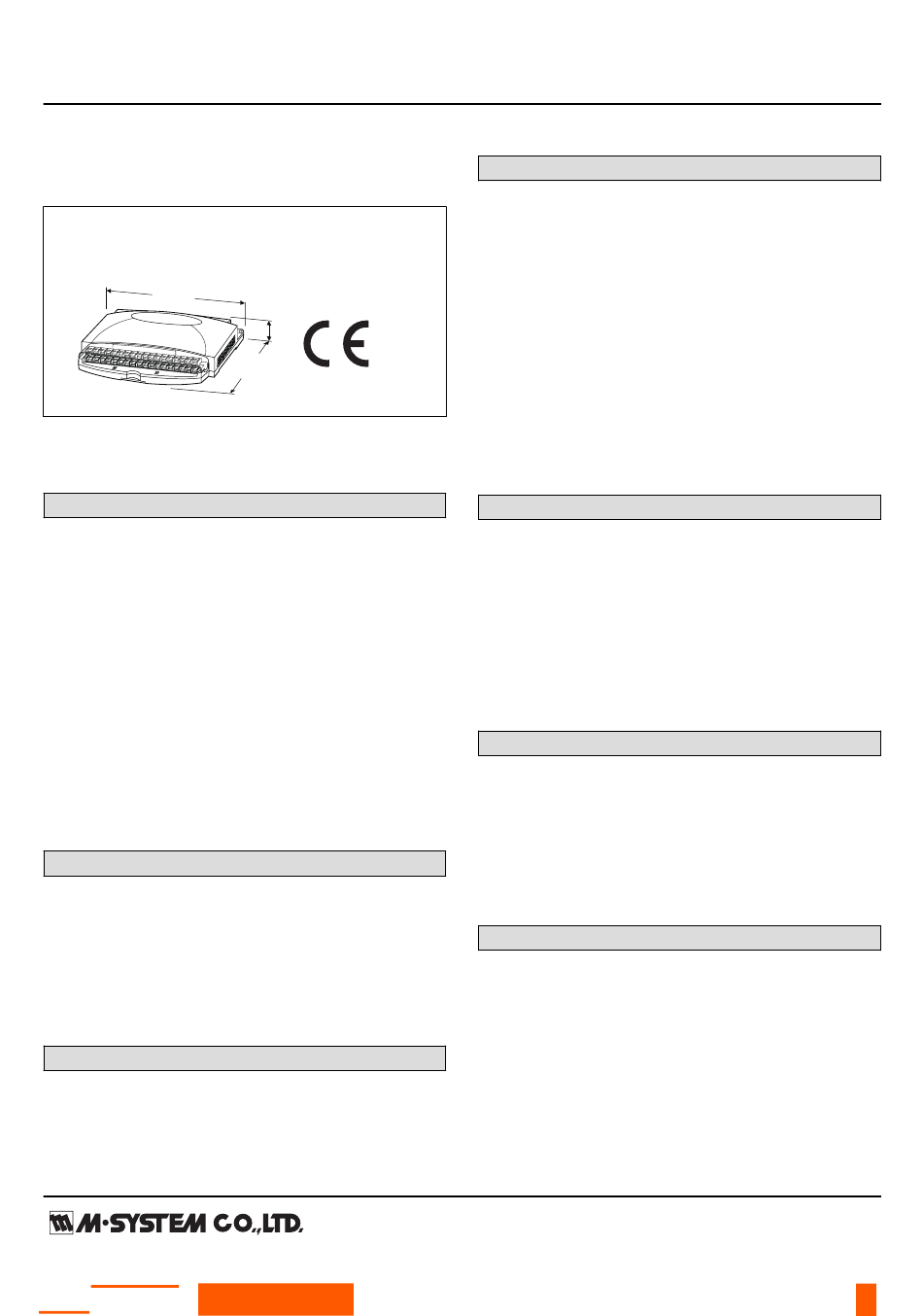

Remote I/O R1M Series
THERMOCOUPLE & DC INPUT MODULE
(16 points)
Functions & Features
• 16-point thermocouple or DC inputs
• Easy system expansion via Modbus RTU
175 (6.89)
MODEL: R1M-GH2T-[1]
ORDERING INFORMATION
• Code number: R1M-GH2T-[1]
Specify a code from below for [1]
e.g. R1M-GH2T-M2
FIELD TERMINAL TYPE
T: M3 screw terminals
[1] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
RELATED PRODUCTS
• Resistor module (model: REM3-250)
• R1X configurator software (model: R1CON)
Downloadable at M-System's web site.
A dedicated cable is required to connect the module to the
PC. Please refer to the internet software download site or
the users manual for the PC configurator for applicable
cable types.
GENERAL SPECIFICATIONS
Connection
Power input, transmission: Euro type connector terminal
RS-232-C: 9-pin D-sub connector (male)
I/O: M3 screw terminals
Isolation: Input to RS-232-C or RS-485 to power
Address setting: Rotary switch; 1 – F (15 nodes)
SEN TRONIC
AG
Produkte, Support und Service
40
(1.57)
115
(4.53)
mm (inch)
Rugghölzli 2
CH - 5453 Busslingen
MODEL: R1M-GH
RUN indicator LED: Green light blinks in normal conditions.
COMMUNICATION
Baud rate: 38.4 kbps
Communication: Half-duplex, asynchronous, no procedure
Protocol: Modbus RTU
Protocol: Modbus RTU
Refer to Modbus Protocol Reference Guide (EM-5650) for
supported functions.
■ RS-232-C
Standard: Conforms to RS-232-C, EIA
Transmission distance: 10 meters max.
■ RS-485
Standard: Conforms to RS-485, EIA
Transmission distance: 500 meters max.
Transmission media: Shielded twisted-pair cable (CPEV-S
0.9 dia.)
INPUT SPECIFICATIONS
Input: Thermocouple or DC input, 16 points
(Common negative for DC input)
Measuring Range:
±20 V, ±5 V, ±1 V, ±0.8 V, ±0.2 V, ±50 mV, ±10 mV
Input resistance: 300 kΩ
Thermocouple types: PR, K, E, J, T, B, R, S, C, N, U, L, P
Sampling rate: 100 millisec./16 points
• Trigger input: Dry contact; ON detected at ≤1.5 V
Sensing: Approx. 5 V DC @ 1 mA
INSTALLATION
Power Consumption
•AC: Approx. 10 VA
•DC: Approx. 7 W
Operating temperature: -5 to +60°C (23 to 140°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Mounting: Surface or DIN rail
Weight: 400 g (0.88 lbs)
PERFORMANCE (% of measuring range)
Accuracy
DC input: ±0.3 %
Thermocouple input: See the table on the end of this
section.
Cold junction compensation error: ±3°C or ±5.4°F max.
(at 20°C ±10°C or 68°F ±18°F)
Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)
±0.05 %/°C (±0.03 %/°F) for 10 mV range
Insulation resistance: ≥100 MΩ with 500 V DC
Dielectric strength: 2000 V AC @ 1 minute (input to RS-232-
C or RS-485 to power to ground)
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
mailbox@sentronic.com
www.sentronic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R1M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for M-system R1M Series

  • Page 1 MODEL: R1M-GH RUN indicator LED: Green light blinks in normal conditions. Remote I/O R1M Series COMMUNICATION THERMOCOUPLE & DC INPUT MODULE Baud rate: 38.4 kbps (16 points) Communication: Half-duplex, asynchronous, no procedure Functions & Features Protocol: Modbus RTU • 16-point thermocouple or DC inputs Protocol: Modbus RTU •...
  • Page 2: Standards And Approvals

    MODEL: R1M-GH Thermocouple Accuracy USABLE RANGE ACCURACY °C °F (PR) 0 to 1770 32 to 3218 ±0.5* K (CA) -270 to +1370 -454 to +2498 ±0.3 E (CRC) -270 to +1000 -454 to +1832 ±0.7 J (IC) -210 to +1200 -346 to +2192 ±0.7 T (CC)
  • Page 3: Connection Diagram

    MODEL: R1M-GH ■ RS-232-C INTERFACE ABBR. PIN NO. EXPLANATION OF FUNCTION BA (SD) Transmitted Data BB (RD) Received Data AB (SG) Signal Common CB (CS) Clear to Send CA (RS) Request to Send Not Used. DO NOT connect. Connecting may cause malfunctions.
  • Page 4: Modbus Wiring Connection

    MODEL: R1M-GH MODBUS WIRING CONNECTION RS-485 RS-485 RS-232-C *1. Internal terminating resistor is used when the device is at the end of a transmission line. *2. Install shielded cables to all sections and ground them at single point. MODBUS COMMUNICATION ■...
  • Page 5 MODEL: R1M-GH DATA ADDRESS ■ TYPE DATA NAME ADDRESS FORMAT Coil (0X) 1 – 32 DO * 33 – 48 Cold junction compensation SW (0: Disable, 1: Enable) * Input Status (1X) 1 – 32 DI * 33 – 48 ADC overrange Input Register 1 –...
  • Page 6 MODEL: R1M-GH ■ INPUT REGISTERS DESCRIPTION (1) ANALOG INPUT IN % (30001 to 30016; 30001 to 30008 for J3) Indicates analog input values in percentage for each channel (1 – 16; 1 – 8 for J3). INPUT TYPE & RANGE A/D DATA (Decimal) ±20V ±20000...
  • Page 7 MODEL: R1M-GH ■ INPUT REGISTERS DESCRIPTION Indicates I/O type for each channel. The data are 16-bit integer values. MODEL I/O TYPE SELECTION USABLE RANGE NOTES R1MS-GH3 DC input 0X00 -10 to 10 V -10 to 10 V R2M-2G3 R1M-GH2 DC input 0X00 -20 to 20 V -22.7 to 22.7 V...
  • Page 8: System Configuration Examples

    MODEL: R1M-GH SYSTEM CONFIGURATION EXAMPLES RS-232-C RS-232-C/RS-485 Converter (model: R2K-1) RS-485 TC/DC Inputs (model: R1M-GH) Contact Inputs Contact Outputs (model: R1M-A1) (model: R1M-D1) When the cable distance between the PC and the R1Ms is long, insert an RS-232-C/RS-485 Converter for isolation. Specifications are subject to change without notice.
  • Page 9: Points Of Caution

    • Locate the power input rating marked on the product and confirm its operational range as indicated below: Thank you for choosing M-System. Before use, please check 100 – 240V AC rating: 85 – 264V, 47 – 66 Hz, approx. 10VA contents of the package you received as outlined below.
  • Page 10: Component Identification

    R1M-GH COMPONENT IDENTIFICATION INSTALLATION ■ TOP VIEW ■ DIN RAIL MOUNTING Set the body so that its DIN rail adaptor is at the bottom. Pull T5 T6 T7 T1 T2 T3 T4 DIN Rail down the DIN rail adaptor. 35mm wide Position the upper hook at the rear side on the DIN rail and push in the lower.
  • Page 11: Terminal Connections

    R1M-GH TERMINAL CONNECTIONS Connect the module referring to the connection diagram. Attach the CJC sensor together with input wiring to the input screw terminals. The sensor is calibrated for each particular module and not interchangeable with another. Check the serial numbers of the module and sensor. DC INPUT T/C INPUT Output...
  • Page 12: Adjustment Procedure

    4) DIP SW setting: Check that all switches are set correct- signal for the respective input signal remains within accu- racy described in the data sheet. When the output is out of tolerance, please contact M-System’s Sales Office or repre- sentatives. ADJUSTMENT PROCEDURE...
