4.4.7 B (1-bit)

Select B
Select B0 to B511.
Right-click to copy
and paste only
when the setting
values are normal.
Possible to paste
the setting values
copied by "Paste
(+1)" with the
effective register
and device number
increased by 1.
Table 24. B (1-bit) Setting Parameters
ITEM
Mode
CH name / CH comment
Data type
Input
Output
Figure 12.
Enable / Disable B register.
Following parameters are configurable when Enable is selected.
Enter the CH name and comment of B register in 32 characters or less.
Select SHORT / USHORT.
(Use to set manually from web server)
Connection Select from C0 to C31, L0 to L255, S0 to S255.
Register Modbus/TCP
SLMP
Bit position When L or S is selected to Connection, specify the bit position.
Connection Select from C0 to C31.
Register Modbus/TCP
SLMP
Invert

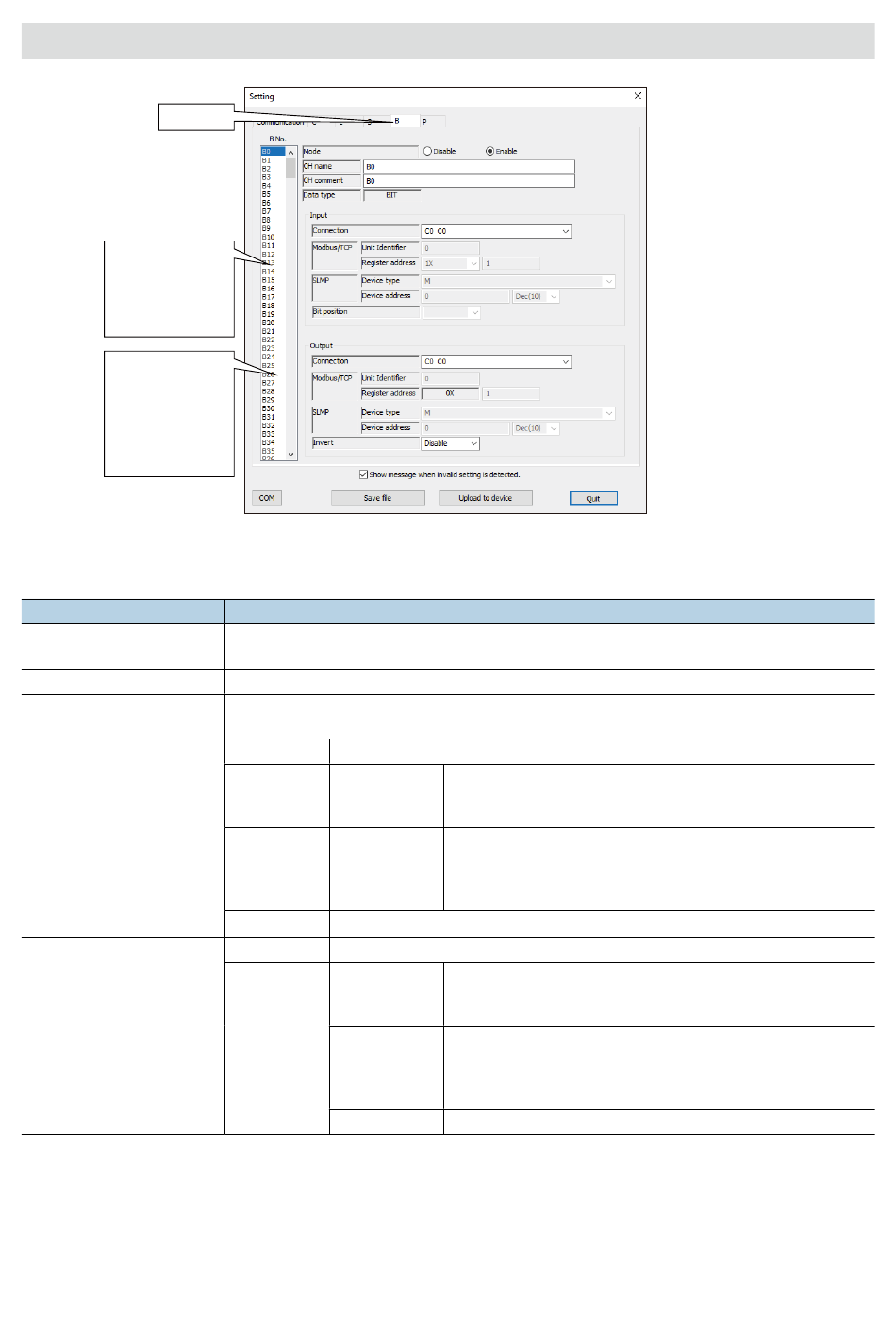

B (1-bit) Setting Screen
DESCRIPTION
When C is selected to Connection and the protocol is set to
Modbus/TCP, set the input register. When the unit identifier
is set to variable, set the unit identification number.
When C is selected to Connection and the protocol is set to
SLMP, set the input device.
The display format for device address can be switched
between octal, decimal, and hexadecimal.
When the protocol of the specified Connection is set to
Modbus/TCP, set the output register. When the unit identifier
is set to variable, set the unit identification number.
When the protocol of the specified Connection is set to
SLMP, set the output device.
The display format for device address can be switched
between octal, decimal, and hexadecimal.
Invert the output when Enable is selected.
