5.2.3 Monitoring Screen (S)

Click [S] to show the monitoring screen for S register.
This screen shows the list of S register.
Clicking the "S" button while monitoring the list of S registers the automatic update cycle can be set from 1 to
999 seconds.

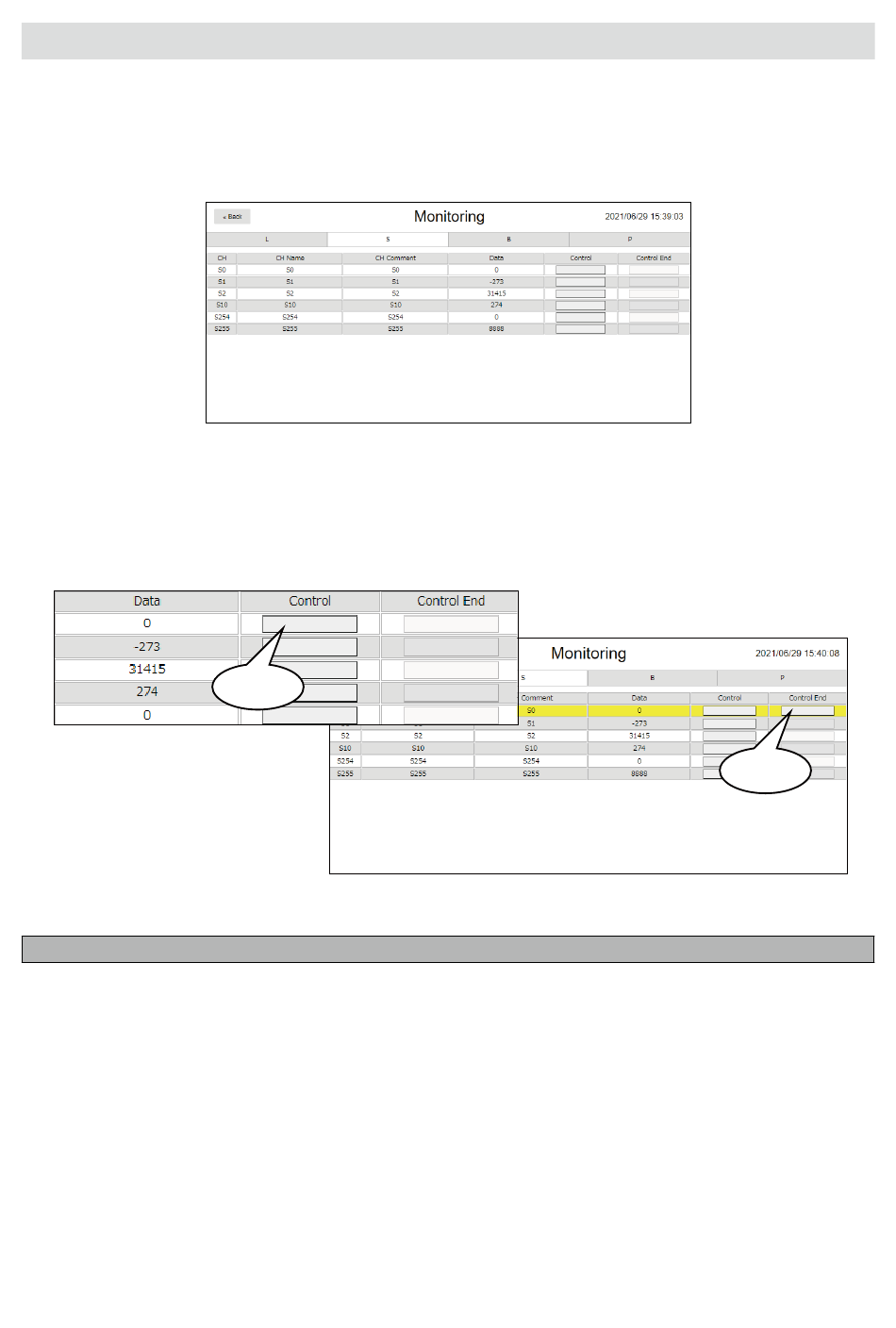

Figure 21. Monitoring Screen (S)
This screen can manipulate output data manually, so in case of emargency, parameters are configurable by
manual operation. Click [Control] button of each channel and input the value to the input dialog, then click OK.
The background of the channel under manual operation turns to yellow, as shown in the figure below.
Click [Control End] button to finish manual operation and returns to I/O communicating status.
Click
Click
Figure 22. Monitoring Screen (S) Manual Operation
The manual operation status is not retained when the power failure.
