L (32-Bit) - M-system JC-IO User Manual

4.4.5 L (32-bit)

Select L
Select L0 to L225.
Right-click to copy
and paste only
when the setting
values are normal.
Possible to paste
the setting values
copied by "Paste
(+1)" with the
effective register
and device number
increased by 1.
Table 22. L (32-bit) setting Parameters
ITEM
Mode
CH name / CH comment
Data type
Input

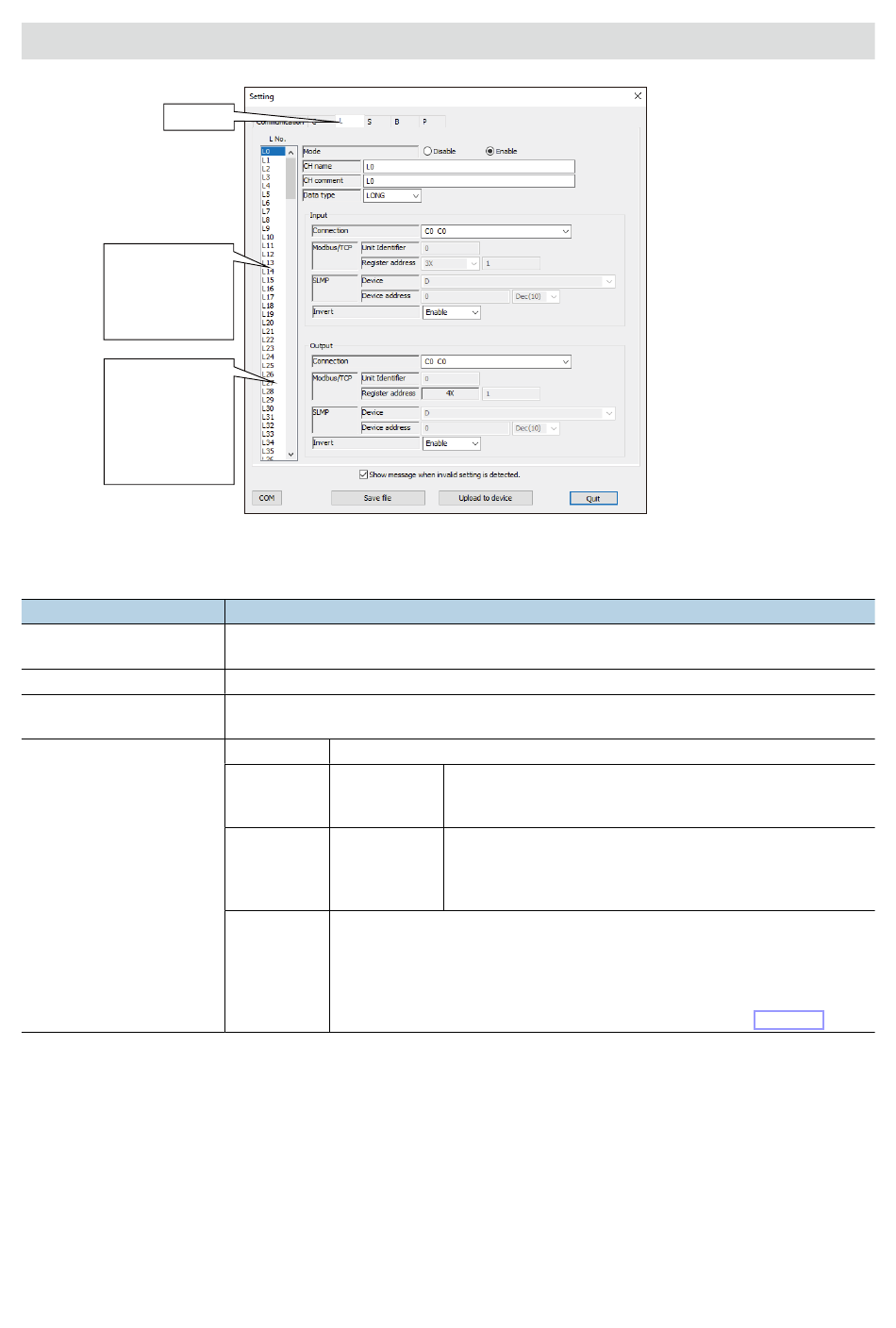

Figure 10. L (32-bit) Setting Screen
Enable / Disable L register.
Following parameters are configurable when Enable is selected.
Enter the CH name and comment of L register in 32 characters or less.
Select from LONG / ULONG / FLOAT.
(Use to manual setting from web server)
Connection Select from C0 to C31
Register Modbus/TCP
SLMP
SWAP Select Enable / Disable.
Modubus/TCP
Eneble: small address is lower, large address is upper
Disable: small address is upper, large address is lower
SLMP
Differs between PLC and device. Set in necessary. Refer to 3.5 SLMP
DESCRIPTION
When the protocol of the specified Connection is set to
Modbus/TCP, set the input register. When the unit identifier
is set to variable, set the unit identification number.
When the protocol of the specified Connection is set to
SLMP, set the input device.
The display format for device address can be switched
between octal, decimal, and hexadecimal.
