5.2.4 Monitoring Screen (B)

Clock [B] to show the monitoring screen for B.
This screen shows the list of B register.
Clicking the "B" button while monitoring the list of B registers the automatic update cycle can be set from 1 to
999 seconds.
This screen can manipulate output data manually, so in case of emargency, parameters are configurable by
manual operation. Click [Control] button of each channel and input the value to the input dialog, then click OK.
The background of the channel under manual operation turns to yellow, as shown in the figure below.
Click [Control End] button to finish manual operation and returns to I/O communicating status.
The manual operation status is not retained when the power failure.
When the output is set to "Invert", set the value before invert.

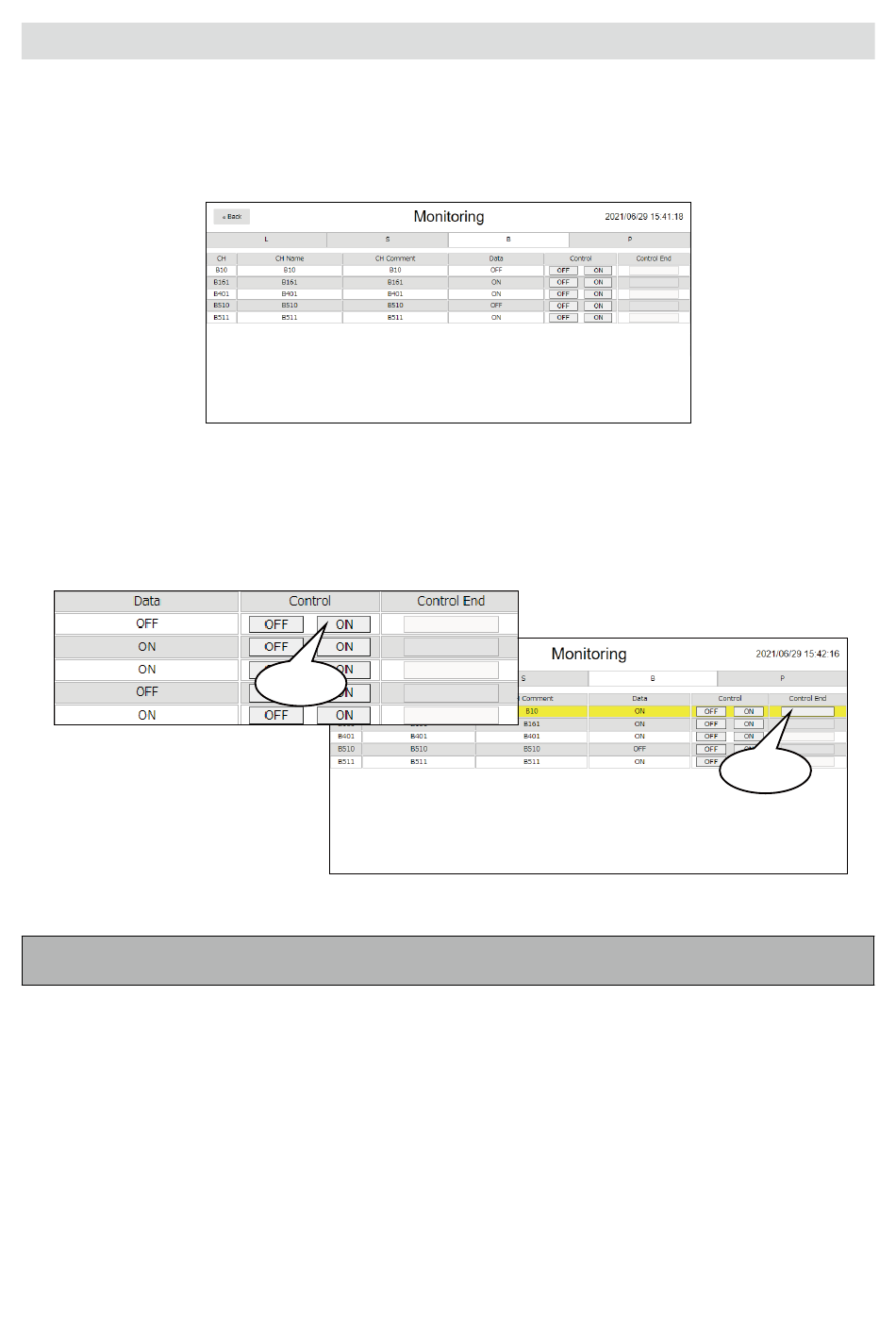

Figure 23. Monitoring Screen (B)
Click
Figure 24. Monitoring Screen (B) Manual Operation
