Universal Space Checky Monkey Operation Manual

Hide thumbs Also See for Checky Monkey:
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Checky Monkey and is the answer not in the manual?

Questions and answers

Related Manuals for Universal Space Checky Monkey

Summary of Contents for Universal Space Checky Monkey

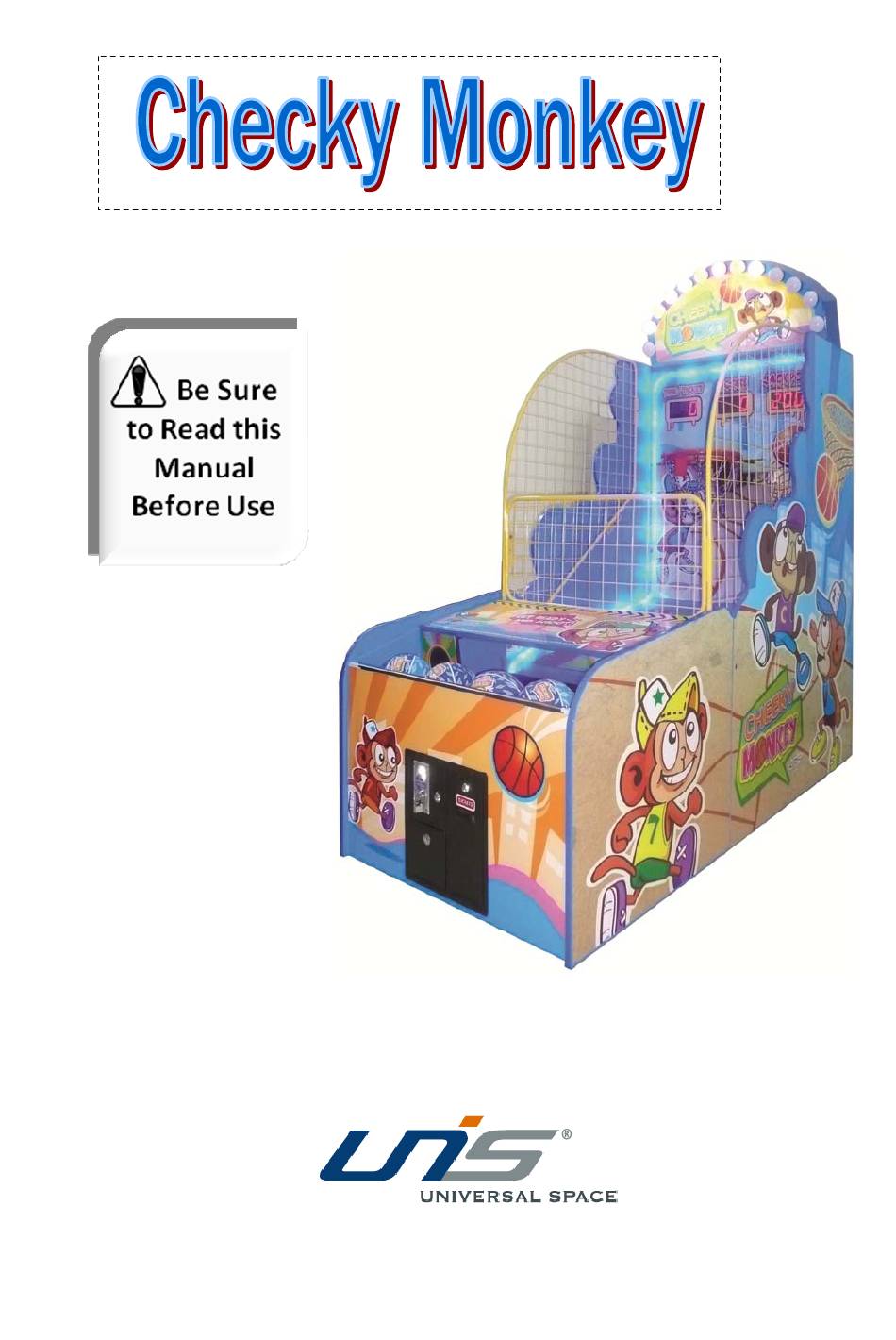

  • Page 1 Operation Manual www.universal-space.com...
  • Page 2 Operation Manual CONTENT Important Safety Instructions ................. 1 1. SPECIFICATIONS ..................... 5 2. PACKAGE CONTENTS ....................6 3. PART NAMES ......................7 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ......................13 6. GAME OPTION ....................... 14 7.
  • Page 3 Operation Manual Thank you for purchasing [ Check Monkey ] from UNIVERSAL SPACE. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.

  • Page 4: Important Safety Instructions

    Operation Manual IMPORTANT SAFETY INSTRUCTIONS To ensure the safe usage of this product, carefully read and understand these instructions before operating your game. Save these instructions for future reference. Use this product only as described in this manual. Other uses not recommended may cause fire, electric shock or personal injury.
  • Page 5 Operation Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: •...

  • Page 6: Specifications

    Operation Manual 1. SPECIFICATIONS Rated power supply： 110V 50/60Hz Mix. Power consumption： ： 140W Max. Power consumption： 160W Dimensions： W1840×D870×H2030(mm) Weight： About 189Kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 7: Package Contents

    Operation Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: • 1 x Body Assembly • Following accessories Part No. Name Spec. Qty. Illustration Note C118-804-000 AC power 10A/250V 1.8m T3A/250V Choose by C118-416-000 Fuse （T6A/125V）...

  • Page 8: Part Names

    Operation Manual 3. PART NAMES FRONT VIEW Header ASSY. JP LED Socre LED Time/ticket LED R_side net Front net Swing Assy. Ball gate upper board L_side net R_speaker Ball gate L_speaker Coin door Assy.

  • Page 9: Rear View

    Operation Manual 3. PART NAMES REAR VIEW Back door(up) Back door(down) Cabinet Wire box...

  • Page 10: Setup And Installation

    Operation Manual 4. SET UP & INSTALLATION Notice This product is an indoor game machine. Do not install outdoors. Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid Place the unit on a dry level surface Ventilation openings in the back of the unit must not be obstructed by objects or by wall.

  • Page 11: Level Adjustment

    Operation Manual 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause a malfunction. To fix the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.

  • Page 12: Transporting The Game

    Operation Manual 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. Leveler Caster Move NOTICE • Be careful not to damage the machine during transport. •...

  • Page 13: Connecting Power

    Operation Manual 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine. • Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.

  • Page 14: How To Play

    Operation Manual 5. HOW TO PLAY Insert coin(s). Game starts.Balls release. Time is counting down. Rim is not moving. 2 points per shot. Time is up. Pay out tickets if not passing the Stage 1. Get the required points to pass the next stage. Time is counting down.

  • Page 15: Game Option

    Operation Manual 6. GAME OPTION 6.1 Switches control singal efer the attached I/O chart and the schematic. To adjust DIP, please refer the the I/O chart. The initial setting is in capitalization. Main board ：...

  • Page 16: Test Method

    Operation Manual 6. GAME OPTION To test method: Press the TEST button in the mainboard. LED Display: BONUS LED<2>3-1 Time LED<1>7-5 Score LED<1>3-1 Test method： Testing LED displays is normal or not when it shows< 1.2.3.4.5.6.7.8.> Press TEST button again and LED displays 1, it shows the LED 1and LED2 of 1# in DIP SW state.
  • Page 17 Operation Manual 6. GAME OPTION 6.2 Parameter setting: DIP Ajdust 1（SW1） （1）Coin(s) per game DIP Ajdust（SW1） Item Content Note Coin(s) per game （2）BONUS DIP Ajdust（SW1） Item Content Note BONUS （3）BONUS+ DIP Ajdust（SW1） Item Content Note BONUS...
  • Page 18 Operation Manual 6. GAME OPTION Score memory (4） Note DIP Ajdust（SW1） Item Content Score memory DIP Ajdust 2（SW2） Game play time(s) （5） DIP Ajdust（SW2） Item Content Note Game play time(s) （6）Points for passing DIP Ajdust（SW2） Item Content Note Points for passing...
  • Page 19 Operation Manual 6. GAME OPTION （7）Merey ticket Note DIP Ajdust（SW1） Item Content Merey ticket DIP Ajdust 3（SW3） Game play time(s) （8） DIP Ajdust（SW2） Item Content Note Game play time(s) （9）Adding points for passing DIP Ajdust（SW2） Item Content Note Adding points for passing...
  • Page 20 Operation Manual 6. GAME OPTION （10）Points per ticket Note DIP Ajdust（SW1） Item Content Points per ticket DIP Ajdust 4 (SW4） （11）Max .ticket per play Note DIP Ajdust（SW4） Item Content Infinity Max .ticket per play No pay Demo NO Demo w/t motion Demo OFF...
  • Page 21 Operation Manual 6. GAME OPTION Input & output parts： (12) Input part： Input Content Input Content Input Content Input Content J9-1 Ticket reset J9-11 J9-21 J9-31 J9-2 Rim signal J9-22 J9-32 J9-3 Ball gate SW J9-13 J9-23 J9-33 J9-4 Ball test 1 J9-14 J9-24 J9-34...
  • Page 22 Operation Manual 6. GAME OPTION Vol Pot Interface Coin Mech Interface Ticker Mech Interface Speaker Interface J20-1 POT_L J19-1 1#Coin lock J21-1 Ticket drive J27-1 Speaker _L+ J20-2 POT_L J19-2 1#SW signal J21-2 Ticket signal J27-2 Speaker _L - J20-3 POT_R J19-3 J21-3...

  • Page 23: Maintenance, Inspection

    Operation Manual 7. MAINTENANCE, INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 24: Overall Construction

    Operation Manual 8. OVERALL CONSTRUCTION 8.1 Main Assembly：...
  • Page 25 Operation Manual 8. OVERALL CONSTRUCTION Part No. Code Name Qty. Spec. Note WPXH-04-00 Header Assy. C118-001-000 Assembly 22204030007 C118-401-000 Φ60 lamp-chimney 60*60 white WPXH-00-05 C118-101-000 R_side net δ14 WPXH-00-04 C118-102-000 Front net δ14 WPXH-00-11M C118-501-000 Ball gate board Plywood δ15 WPXH-00-08 C118-103-000 Speaker net...
  • Page 26 Operation Manual 8. OVERALL CONSTRUCTION 8.2 Coin door Assembly: Part No. Code Name Qty. Spec. Note 25300171001 Lock C118-402-000 WPXH-01-26 C118-110-000 Lock board 171 Q235 δ2.5 25302222001 Lock C118-403-000 2222 2310000006 C118-404-000 Ticket machine CL-022Q-386 22301000001 C118-405-000 Coin machine TY-JX-003 C118-111-000 Counter install board A Q235 δ1.5...
  • Page 27 Operation Manual 8. OVERALL CONSTRUCTION 8.3 Swing Assembly:...
  • Page 28 Operation Manual 8. OVERALL CONSTRUCTION 8.3 Swing Assembly:...
  • Page 29 Operation Manual 8. OVERALL CONSTRUCTION Part No. Code Name Qty. Spec. Note TY70-15/70JB100G1 23405000089 AC motor C118-406-000 0 220V WPXH-02-02 C118-114-000 Motor bracket δ2 WPXH-02-03 Connect pole C118-115-000 Welding parts WPXH-02-05 C118-116-000 Guide track B Q235 δ2 Guide shaft WPXH-02-08 C118-117000 δ18 WPXH-02-06...

  • Page 30: Header Assembly

    Operation Manual 8. OVERALL CONSTRUCTION 8.4 Header Assembly: Part No. Code Name Qty. Spec. Note WPXH-04-02 C118-130-000 Back board Q235 δ1.5 22006000018 C118-408-000 T5 tube MXT-Y14C 6400K 220V WPXH-04-01 C118-131-000 Cabinet Q235 δ1.5 WPXH-HM-01 C118-603-000 lamp-chimney δ3 Clarity PVC...
  • Page 31 Operation Manual 8. OVERALL CONSTRUCTION Assembly 8.5 Ball gate ：...
  • Page 32 Operation Manual 8. OVERALL CONSTRUCTION Part No. Code Name Qty. Spec. Note WPXH-03-03 Fixation board C118-132-000 Q235 δ1.5 WPXH-03-04 C118-604-000 Moving board Black POM δ6 WPXH-03-05 C118-133-000 Guide track Q235 WPXH-03-07M Ball gate board δ15 Plywood C118-506-000 23404000047 C118-409-000 DC motor ZGB37 DC12V WPXH-03-01 C118-134-000...
  • Page 33 Operation Manual 8. OVERALL CONSTRUCTION 8.6 Counter & Wire box： Coin counter Ticket counter - Volume+ Ticekt reset Fuse Part No. Code Name Qty. Spec. Note 23000000005 Counter C118-412-000 C-012 DC12V 22403000001 C118-413-000 Pot. knob Black 21709000002 C118-414-000 Pot. Conncet board VR.PCB C118-415-000 22402010002...

  • Page 34: Electrical Part

    Operation Manual 8. OVERALL CONSTRUCTION 8.7 Electrical part： 5•6 Part No. Code Name Qty. Spec. Note 21706000037 2.3” LED C118-801-000 LED23B3.PCB 21701000014 C118-802-000 Mainboard PLAY V9 21704000214 C118-803-000 Lamp control board LED CON-DDL.PCB(V1.1) C118-420-000 22140000002 Relay SSR-25DA C118-421-000 21901000018 Fuse Φ6×30mm T3A 250VAC C118-422-000 21902000015...
  • Page 35 Operation Manual 8. OVERALL CONSTRUCTION 8.8 Game menu： Front ：...
  • Page 36 Operation Manual 8. OVERALL CONSTRUCTION Back ：...
  • Page 37 Operation Manual 8. OVERALL CONSTRUCTION Part No. Code Name Spec. Qty. Note 602×782 δ3 C118-725-000 WPXH-HM-04 Playfield menu 848×978 δ3 C118-726-000 WPXH-HM-02 Main menu 960×580 δ3 C118-727-000 WPXH-HM-01 Header menu 30×6 (PVC100u) C118-728-000 TY-HM-01 Coin counter decal 30×6 (PVC100u) C118-729-000 TY-HM-02 Ticket counter decal 30×6 (PVC100u)
  • Page 38 Operation Manual Have Questions? Contact us! www.zs-shiyu.com www.universal-space.com Canada Office Parts & Service +1-905-477-2823 Email: service@universal-space.com...
