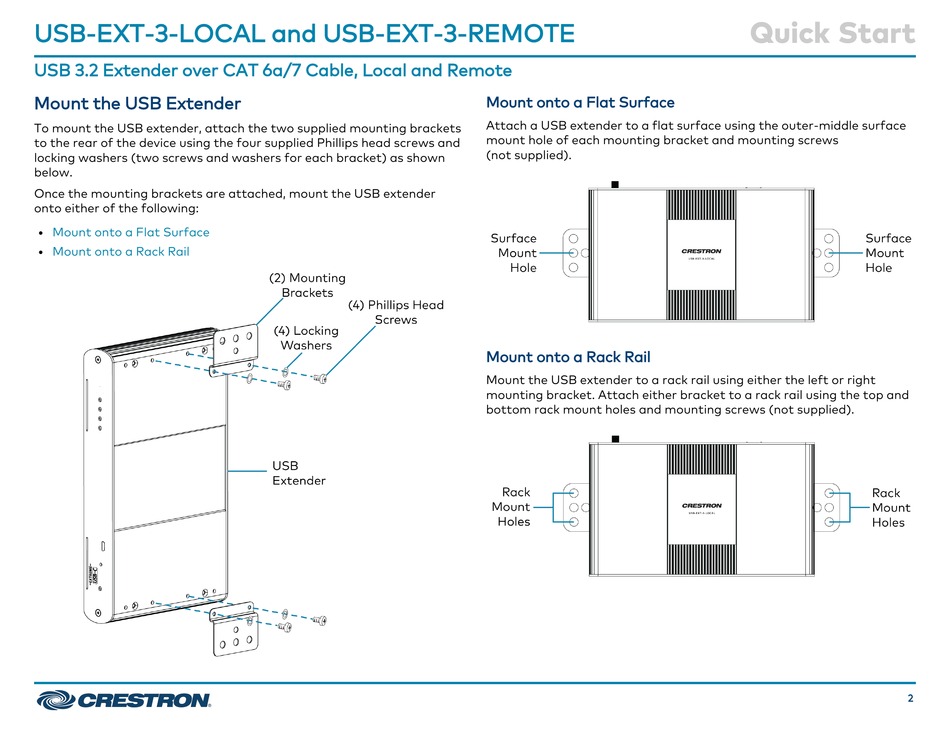

Crestron USB-EXT-3-LOCAL Quick Start Manual page 2

USB-EXT-3-LOCAL and USB-EXT-3-REMOTE
USB 3.2 Extender over CAT 6a/7 Cable, Local and Remote
Mount the USB Extender
To mount the USB extender, attach the two supplied mounting brackets
to the rear of the device using the four supplied Phillips head screws and
locking washers (two screws and washers for each bracket) as shown
below.
Once the mounting brackets are attached, mount the USB extender
onto either of the following:
Mount onto a Flat Surface
l
Mount onto a Rack Rail
l
Mount onto a Flat Surface
Attach a USB extender to a flat surface using the outer-middle surface
mount hole of each mounting bracket and mounting screws
(not supplied).
Mount onto a Rack Rail
Mount the USB extender to a rack rail using either the left or right
mounting bracket. Attach either bracket to a rack rail using the top and
bottom rack mount holes and mounting screws (not supplied).
Quick Start
2
