USB-EXT-2-LOCAL/USB-EXT-2-REMOTE
USB over Category Cable Extenders

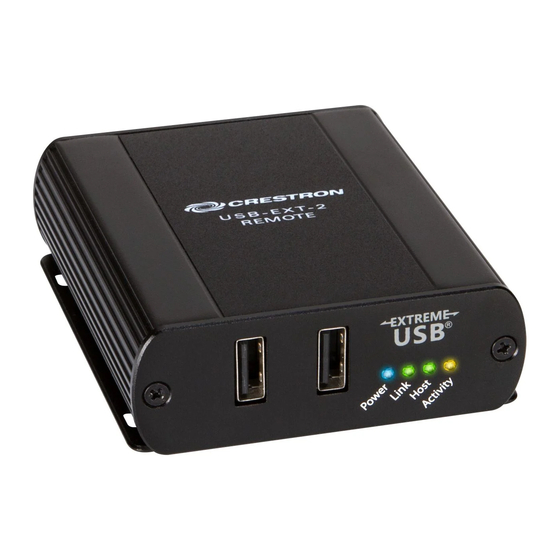

The Crestron® USB over Category Cable Extenders
and USB-EXT-2-REMOTE) deliver reliable, high-speed USB signal
extension for USB 1.1 and 2.0 devices in a conference room, classroom,
auditorium, command center, medical facility, public space, or residence.
Without requiring any special configuration or drivers, the USB extenders
enable wire runs up to 330 ft (100 m) over a single CAT5e (or better)
unshielded twisted-pair (UTP) cable. The USB extenders support most
USB device types and are plug-and-play compatible with computers
running Windows®, macOS®, and Linux® operating systems.
The USB-EXT-2-LOCAL and USB-EXT-2-REMOTE are functionally
similar. For simplicity within this guide, the term "USB extender" is used
except where noted. The USB extenders are also compatible with the USB
over Category Cable Extender Wall Plates (USB-EXT-2-LOCAL-1G and
USB-EXT-2-REMOTE-1G).
(USB-EXT-2-LOCAL
In the Box
USB-EXT-2-LOCAL or USB-EXT-2-REMOTE
1
Additional Items
1
Kit, Mounting Hardware
USB-EXT-2-REMOTE Only
1
Adapter, Power, 24 VDC, 1 A, 100-240 VAC
1
Power Cable, 6 ft (1.83 m)
USB-EXT-2-LOCAL Only
1
Cable, USB 2.0 A-B, 6 ft (1.83 m)
Quick Start
1
Advertisement
Related Manuals for Crestron USB-EXT-2-LOCAL
Summary of Contents for Crestron USB-EXT-2-LOCAL
- Page 1 Adapter, Power, 24 VDC, 1 A, 100-240 VAC except where noted. The USB extenders are also compatible with the USB Power Cable, 6 ft (1.83 m) over Category Cable Extender Wall Plates (USB-EXT-2-LOCAL-1G and USB-EXT-2-REMOTE-1G). USB-EXT-2-LOCAL Only Cable, USB 2.0 A-B, 6 ft (1.83 m)
- Page 2 1. Connect one RJ45 connector end of the CAT5e (or better) cable to the connect the other RJ45 connector end to the CAT wall outlet Link port on the USB-EXT-2-LOCAL, and then connect the other RJ45 near the USB device(s). Ensure that the two patch cables and connector end to the Link port on the USB-EXT-2-REMOTE.
- Page 3 Quick Start USB-EXT-2-LOCAL/USB-EXT-2-REMOTE USB over Category Cable Extenders...
- Page 4 Place onto a Flat Surface Place the USB-EXT-2-LOCAL on a secure, level surface near the host computer, and place the USB-EXT-2-REMOTE on a secure, level surface near the USB device(s). The rubber feet on the bottom of each extender help to prevent the extenders from shifting.
-
Page 5: Check The Installation
Check that the Activity, Host, Link, and Power LEDs light on both the 1. Install any software on the host computer that is required to operate USB-EXT-2-LOCAL and the USB-EXT-2-REMOTE. If the Host or Link the USB device(s). Refer to the USB device documentation for LEDs do not light, then the cabling between the USB extenders may be installation instructions. - Page 6 Quick Start USB-EXT-2-LOCAL/USB-EXT-2-REMOTE USB over Category Cable Extenders Additionally, check to see whether USB extender system has been installed correctly on the host computer. Refer to the below instructions. For Windows Software: 1. Open Device Manager. 2. Expand the Universal Serial Bus controllers node.
- Page 7 Quick Start USB-EXT-2-LOCAL/USB-EXT-2-REMOTE USB over Category Cable Extenders Troubleshoot the USB Extender The following table provides corrective actions for possible trouble situations. If further assistance is required, please contact a Crestron Customer service representative. Symptom Issue Action The USB device is attached to...
- Page 8 Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. macOS is either a trademark or registered trademark of Apple, Inc. in the United States and/or other www.crestron.com/model/6511094...
