Technical Specifications-Door Controller - Matrix COSEC PATH DCFE Quick Installation Manual

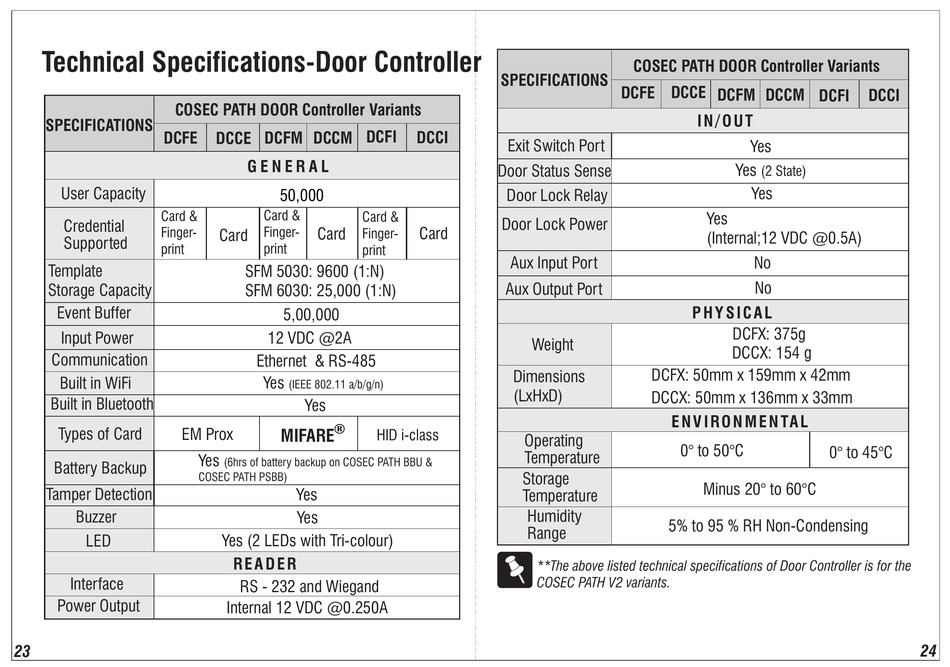

Technical Specifications-Door Controller

COSEC PATH DOOR Controller Variants
SPECIFICATIONS
DCFE
User Capacity
Card &
Credential
Finger-
Supported
print
Template
Storage Capacity
Event Buffer
Input Power
Communication
Built in WiFi
Built in Bluetooth
Types of Card EM Prox
Battery Backup
Tamper Detection
Buzzer
LED
Interface
Power Output
23
DCCE DCFM DCCM DCFI
G E N E R A L
50,000
Card &
Card &
Finger-
Card Finger-
Card
print
print
SFM 5030: 9600 (1:N)
SFM 6030: 25,000 (1:N)
5,00,000
12 VDC @2A
Ethernet & RS-485
Yes
(IEEE 802.11 a/b/g/n)
Yes
R
MIFARE HID i-class
Yes
(6hrs of battery backup on COSEC PATH BBU &
COSEC PATH PSBB)
Yes
Yes
Yes (2 LEDs with Tri-colour)
R E A D E R
RS - 232 and Wiegand
Internal 12 VDC @0.250A
SPECIFICATIONS
DCCI
Exit Switch Port
Door Status Sense
Door Lock Relay
Door Lock Power
Card
Aux Input Port
Aux Output Port
Weight
Dimensions
(LxHxD)
Operating
Temperature
Storage
Temperature
Humidity
Range
**The above listed technical specifications of Door Controller is for the
COSEC PATH V2 variants.
COSEC PATH DOOR Controller Variants
DCFE DCCE
DCFM DCCM
I N / O U T
Yes
Yes
(2 State)
Yes
Yes
(Internal;12 VDC @0.5A)
No
No
P H Y S I C A L
DCFX: 375g
DCCX: 154 g
DCFX: 50mm x 159mm x 42mm
DCCX: 50mm x 136mm x 33mm
E N V I R O N M E N TA L
0° to 50°C
Minus 20° to 60°C
5% to 95 % RH Non-Condensing
DCCI
DCFI
0° to 45°C
24
