Installation

Path can be installed as a Concealed and Non-concealed
wiring as described below.
A. Concealed Wiring
Step 1

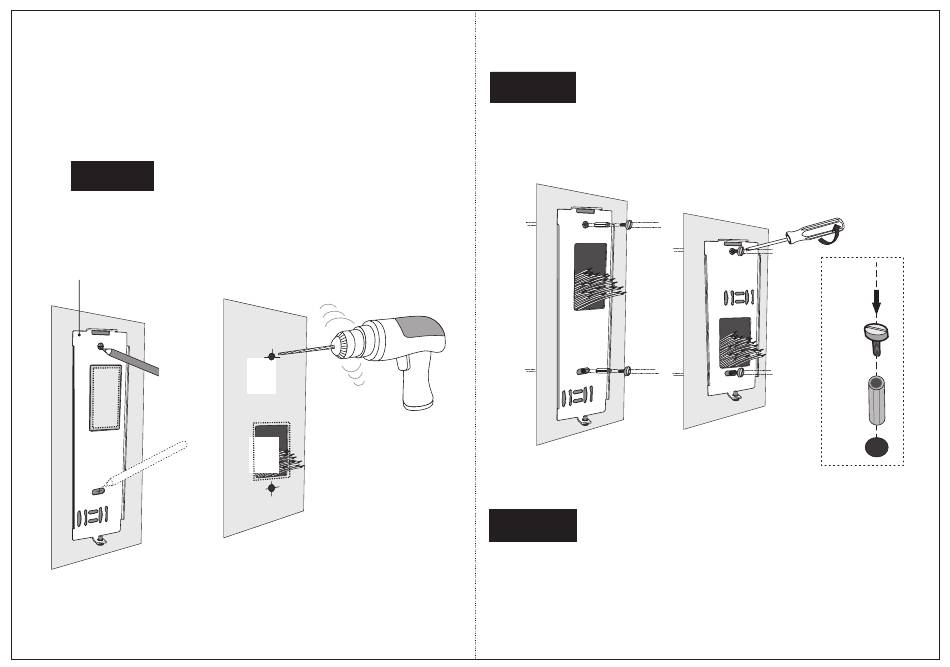

Trace holes A, B & C and Drill along the markings
as shown below.
Mounting
Plate
A
C
B
DCFX
11
A
C
B
DCCX
Step 2
Fix Mounting Plate with supplied screw grips & screws as
illustrated below.
A
C
B
DCFX
Step 3
1. Connect cables and lead them through the rectangular
opening on the wall.
A
C
Screw
Screw
B
grip
Hole
DCCX
