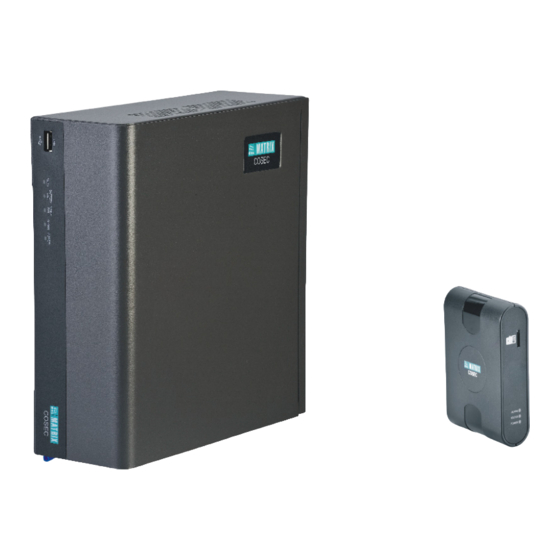

Matrix COSEC Panel Quick Start Manual

Site controller for multiple doors
Hide thumbs

Advertisement

Quick Links

PANEL
Quick Start
S E C U R I T Y S O L U T I O N S

Advertisement

loading
Need help?

Need help?

Do you have a question about the COSEC Panel and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix COSEC Panel

Summary of Contents for Matrix COSEC Panel

  • Page 1 PANEL Quick Start S E C U R I T Y S O L U T I O N S...
  • Page 3 S E C U R I T Y S O L U T I O N S COSEC PANEL The Site Controller for Multiple DOORs Quick Start...
  • Page 4 Documentation Disclaimer Matrix Comsec reserves the right to make changes in the design or components of the product as engineering and manufacturing may warrant. Specifications are subject to change without notice. This is a general documentation for all models of the product. The product may not support all the features and facilities described in the documentation.

  • Page 5: Table Of Contents

    Contents ......................i Introduction ....................1 Before You Start ....................2 Verify Package Content ..................2 Know Your COSEC PANEL ................3 Mounting and Wiring the ............ 5 Connecting the PANEL to the Monitoring PC ........... 11 Table of Contents...
  • Page 6 Table of Contents...

  • Page 7: Introduction

    Introduction Congratulations on choosing the Matrix COSEC PANEL. This quick start guide is meant to help you in completing the installation of the COSEC PANEL or PANEL Lite Hardware components as well as configuring its basic parameters. For detailed information on the installation and configuration of the COSEC system, you may refer the 'COSEC System Manual' a copy of which is available on the CD.

  • Page 8: Before You Start

    COSEC PANEL Quick Start Ethernet Cable CD containing System (RJ45) Manual and Quick Start Two Screw M 7/30 Two Screw Grip Warranty Card Set Mounting Template Matrix PANEL Quick Start...

  • Page 9: Know Your Cosec Panel

    • 5 LEDs. (Fault, Battery Fail, Mains Fail, Alarm, Power) • 1 Aux Output port • 1 Aux Input port The COSEC PANEL Lite model supports only 3 LEDs as compared to 5 on the PANEL. The COSEC PANEL communicates with the central COSEC application software and the connectivity with the application server is accomplished via TCP/IP network connection.
  • Page 10 Some PANEL DOORs connected to the PANEL on the Ethernet and others on the RS-485 loop. PANEL DOORs COSEC PANEL RS485 Ethernet Switch PANEL DOORs Connecting remote sites. Ethernet Switch COSEC Application Server Internet Router Router PANEL COSEC DOOR PANEL PANEL DOORs Up to 32 Matrix PANEL Quick Start...

  • Page 11: Mounting And Wiring The

    Mounting and Wiring Before installing the COSEC PANEL: The COSEC PANEL cabinet has been designed to be mounted on a wall without any additional enclosures. The COSEC PANEL enclosure ships pre-wired. The cabinet size is adequate to accommodate the battery backup supply and the necessary wiring connections for most applications.
  • Page 12 8 meters (25 feet) from any transmitting equipment. • Review the COSEC PANEL layout, cable runs, and power needs. • Mount the enclosure at the proper location on the wall. Use appropriate anchors for the mounting material.
  • Page 13 8 port terminal on the PANEL and in the case of the PANEL Lite on the face of the enclosure as shown. The COSEC PANEL enclosure has a knockout for routing the I/O and the communication cables coming into the enclosure. This knockout is located on the lower face of the PANEL enclosure.
  • Page 14 Replace the battery every two to two-and-a-half years, or more often if the PANEL and connected DOORs have a high rate of backup use. Step 4: Connecting the COSEC PANEL to the Ethernet The following diagram illustrates a typical COSEC System installation layout in a...
  • Page 15 The PANEL Lite however needs only a single wall anchor for mounting it on the wall. The holes are to be drilled in accordance with the following dimensions of the PANEL and the PANEL Lite. Matrix PANEL Quick Start...
  • Page 16 Once all the connections are checked, power up the PANEL which in turn will go through the booting process. The LEDs on the PANEL enclosure will flash twice followed by a beep to signal the end of the booting process. Matrix PANEL Quick Start...

  • Page 17: Connecting The Panel To The Monitoring Pc

    COSEC PANEL Application Server When configuring the IP addresses of the new COSEC PANEL, please ensure that you connect the PANELs one at a time on the network. This is to avoid conflict of IPs which would occur if two PANELs with the same default IP addresses are connected on the network.
  • Page 18 PANEL can be checked by passing the ping command. Go to the Command prompt and pass the following command: ping 192.168.50.1 On getting a response from the COSEC PANEL, proceed with the further configuration of the PANEL. Connecting to the COSEC Jeeves™ Web Server Now the user can access the on board COSEC Jeeves web server on the COSEC PANEL device using a Web Browser.
  • Page 19 On selecting the user level and entering the appropriate default password the user can access the start up page of the Web application. Configuring the COSEC PANEL Network Parameters The administrator needs to configure the IP address of the PANELs using the Network parameters option of the Web Jeeves application.
  • Page 20 Select the type of communication interface of the PANEL with the COSEC MONITOR application from the pull down list. The options available are Ethernet, WiFi and Mobile Broadband. Click Submit to send the new IP settings to the PANEL. Matrix PANEL Quick Start...
  • Page 21 Apart from the Network Parameters option, the administrator or any other user will have only read access to view the other options. A few of the Jeeves options are available for monitoring and control too, which has been described in the next section. Matrix PANEL Quick Start...
  • Page 22 Matrix PANEL Quick Start...
  • Page 23 Matrix PANEL Quick Start...
  • Page 24 S E C U R I T Y S O L U T I O N S MATRIX COMSEC Head Office: 394-GIDC, Makarpura, Vadodara - 390010, India. Ph:+91 265 2630555 E-mail: Support@MatrixComSec.com www.MatrixSecuSol.com...
