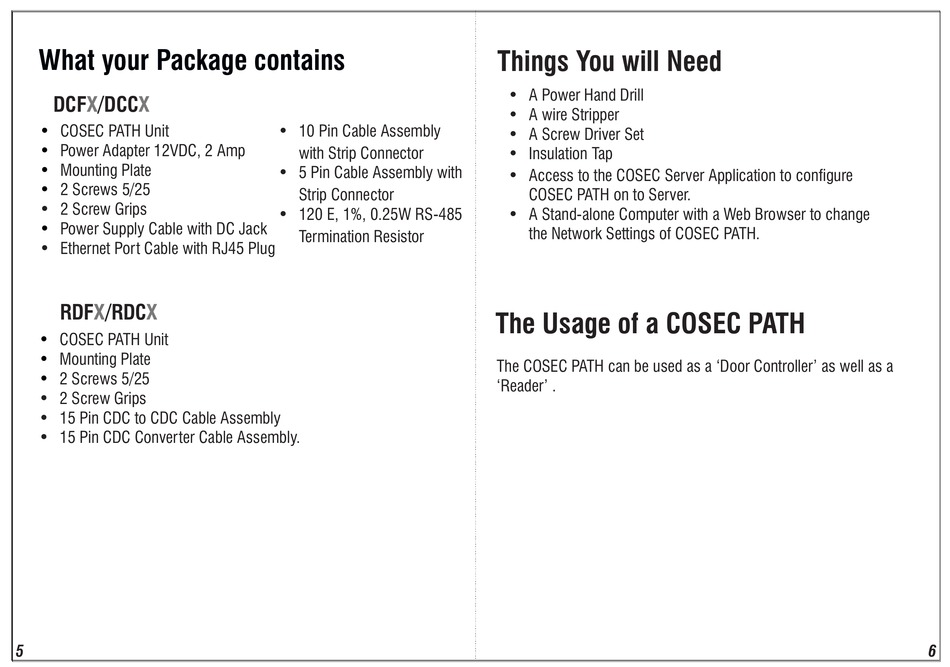

What your Package contains
DCF /DCC X X
Ÿ
COSEC PATH Unit
Ÿ
Power Adapter 12VDC, 2 Amp
Ÿ
Mounting Plate
Ÿ
2 Screws 5/25
Ÿ
2 Screw Grips
Ÿ
Power Supply Cable with DC Jack
Ÿ
Ethernet Port Cable with RJ45 Plug
RDF /RDC X X
Ÿ
COSEC PATH Unit
Ÿ
Mounting Plate
Ÿ
2 Screws 5/25
Ÿ
2 Screw Grips
Ÿ
15 Pin CDC to CDC Cable Assembly
Ÿ
15 Pin CDC Converter Cable Assembly.
5
Ÿ
10 Pin Cable Assembly
with Strip Connector
Ÿ
5 Pin Cable Assembly with
Strip Connector
Ÿ
120 E, 1%, 0.25W RS-485
Termination Resistor

Things You will Need

Ÿ
A Power Hand Drill
Ÿ
A wire Stripper
Ÿ
A Screw Driver Set
Ÿ
Insulation Tap
Ÿ
Access to the COSEC Server Application to configure
COSEC PATH on to Server.
Ÿ
A Stand-alone Computer with a Web Browser to change
the Network Settings of COSEC PATH.
The Usage of a COSEC PATH
The COSEC PATH can be used as a 'Door Controller' as well as a
'Reader' .
