B. Non-Concealed Wiring

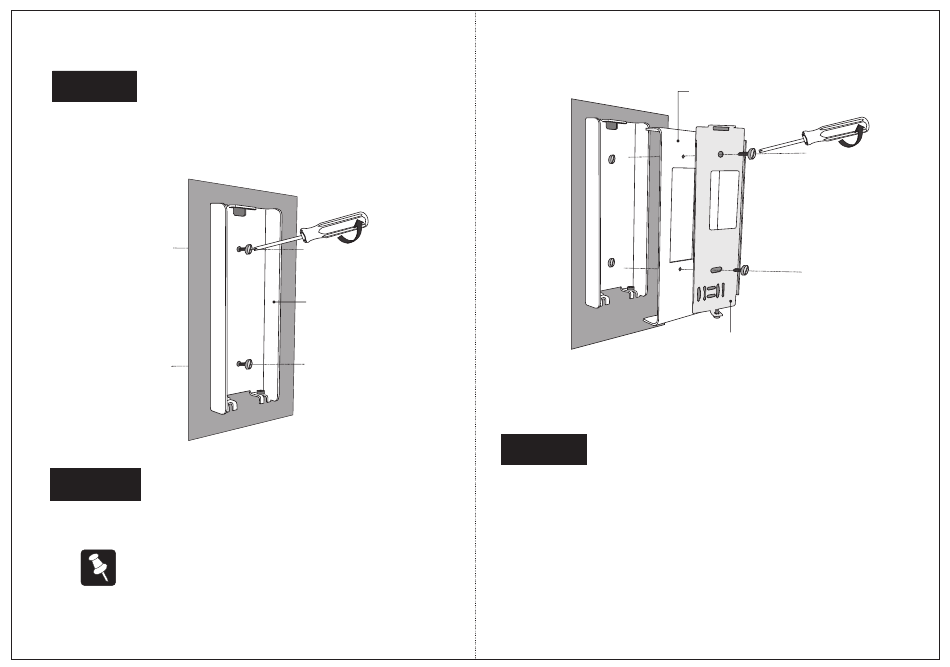

Step 1
Fix Duct Box Base Plate on Installation Surface using supplied
screws & screw grips as shown below.
Step 2
Fix the Mounting Plate on Duct Box Top Cover.
The duct box shown in the illustration is not a part of the product
package and must be purchased separately.
15
A
Duct Box
Base Plate
B
DCFX
A
B
DCFX
Step 3
Align the COSEC PATH on mounting plate and slide it downwards
as shown on Next Page.
Duct Box
Top Cover
Mounting
Plate
