DCFX
DCCX

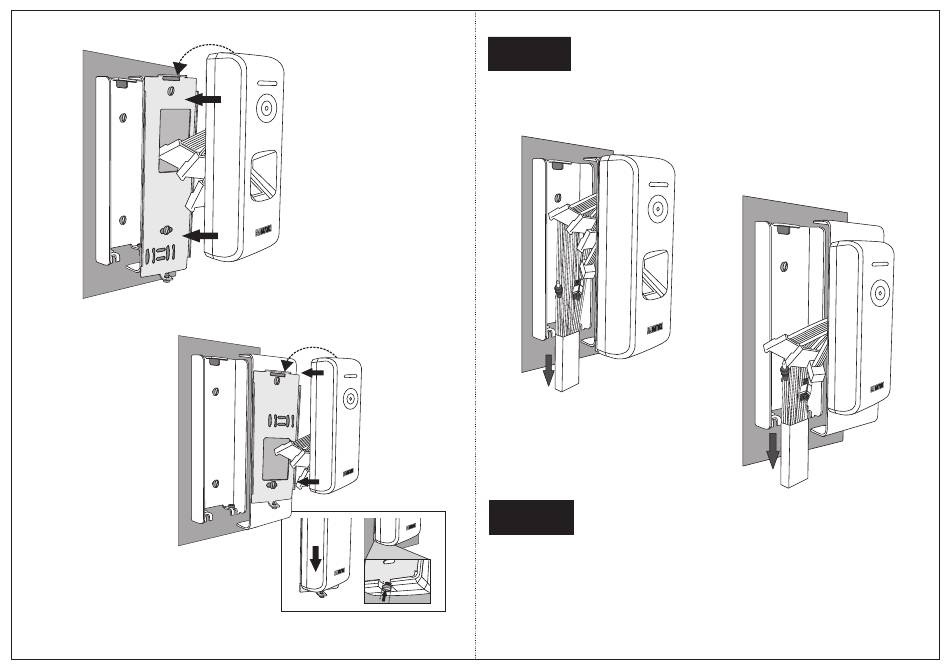

Step 4
Connect cables and lead them through the bottom opening of
Duct Box as shown below.
Cables
DCFX
Step 5
1. Fix the Top-Cover to Base Plate by sliding Mounting Hook of top-
cover into the Mounting Slot of base plate.
2. Tighten screws at the bottom as shown on Next Page.
DCCX
Cables
18
