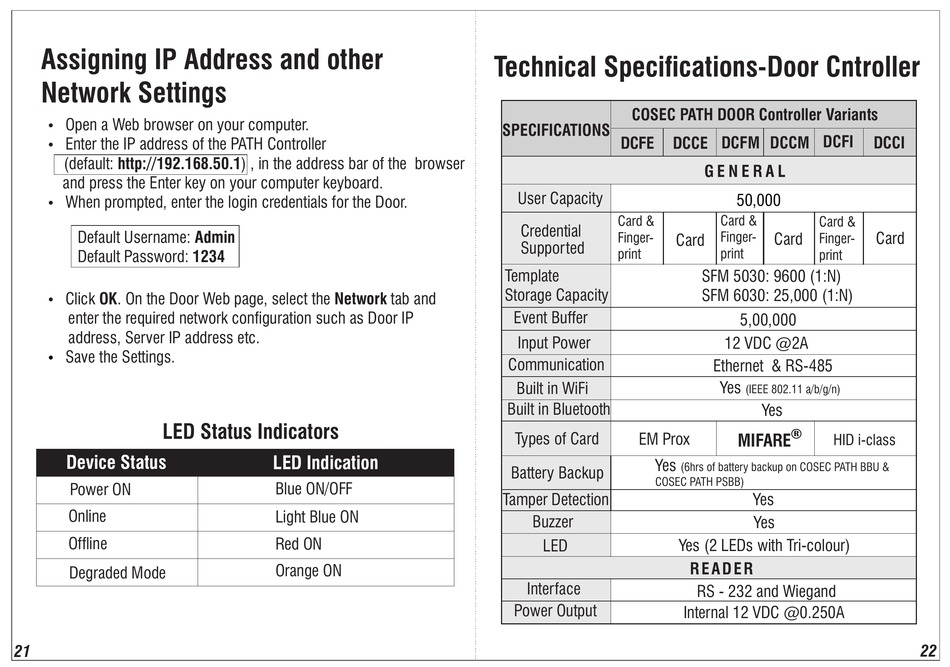

Assigning IP Address and other
Network Settings
Open a Web browser on your computer.
Ÿ
Enter the IP address of the PATH Controller
Ÿ
(default: http://192.168.50.1) , in the address bar of the browser
and press the Enter key on your computer keyboard.
When prompted, enter the login credentials for the Door.
Ÿ
Default Username: Admin
Default Password: 1234
Click OK. On the Door Web page, select the Network tab and
Ÿ
enter the required network configuration such as Door IP
address, Server IP address etc.
Save the Settings.
Ÿ
LED Status Indicators
Device Status
Power ON
Online
Offline
Degraded Mode
21
LED Indication
Blue ON/OFF
Light Blue ON
Red ON
Orange ON
Technical Specifications-Door Cntroller
COSEC PATH DOOR Controller Variants
SPECIFICATIONS
DCCE DCFM DCCM DCFI
DCFE
User Capacity
Card &
Credential
Finger-
Supported
print
Template
Storage Capacity
Event Buffer
Input Power
Communication
Built in WiFi
Built in Bluetooth
Types of Card
EM Prox
Yes
Battery Backup
COSEC PATH PSBB)
Tamper Detection
Buzzer
LED
Interface
Power Output
G E N E R A L
50,000
Card &
Card &
Finger-
Card Finger-
Card
print
print
SFM 5030: 9600 (1:N)
SFM 6030: 25,000 (1:N)
5,00,000
12 VDC @2A
Ethernet & RS-485
Yes
(IEEE 802.11 a/b/g/n)
Yes
R
MIFARE HID i-class
(6hrs of battery backup on COSEC PATH BBU &
Yes
Yes
Yes (2 LEDs with Tri-colour)
R E A D E R
RS - 232 and Wiegand
Internal 12 VDC @0.250A
DCCI
Card
22
