Assigning Ip Address And Other Network Settings - Matrix COSEC PATH DCFE Quick Installation Manual

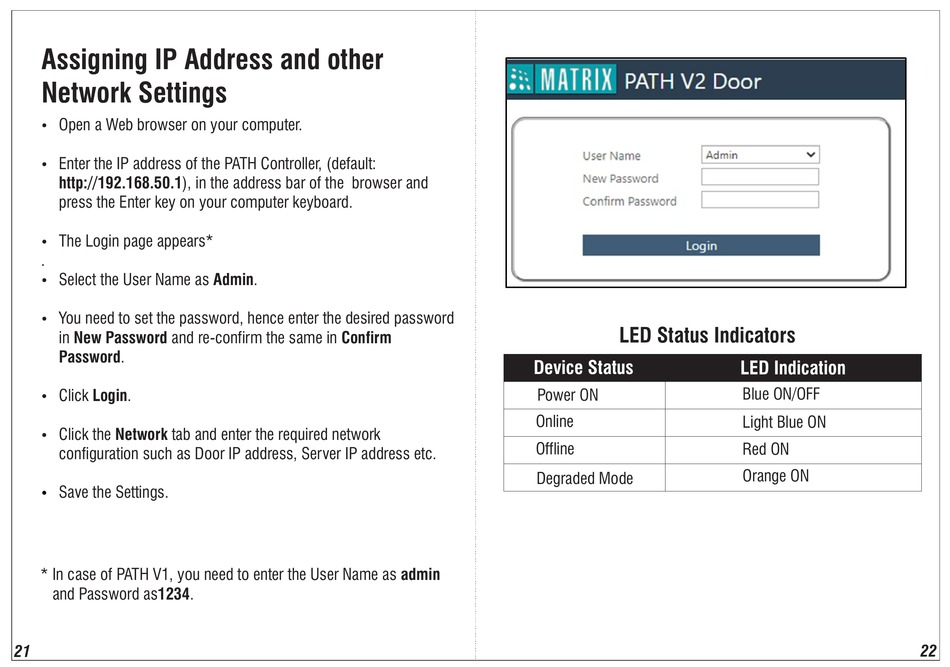

Assigning IP Address and other
Network Settings
Open a Web browser on your computer.
Ÿ
Enter the IP address of the PATH Controller, (default:
Ÿ
http://192.168.50.1), in the address bar of the browser and
press the Enter key on your computer keyboard.
The Login page appears*
Ÿ
.
Select the User Name as Admin.
Ÿ
You need to set the password, hence enter the desired password
Ÿ
in New Password and re-confirm the same in Confirm
Password.
Click Login.
Ÿ
Click the Network tab and enter the required network
Ÿ
configuration such as Door IP address, Server IP address etc.
Save the Settings.
Ÿ
* In case of PATH V1, you need to enter the User Name as admin
and Password as1234.
21
LED Status Indicators
Device Status
Power ON
Online
Offline
Degraded Mode
LED Indication
Blue ON/OFF
Light Blue ON
Red ON
Orange ON
22
