INSTALLATION AND OPERATION INSTRUCTIONS FOR
TRD-26 BESPOKE
TRD-30 BESPOKE
TRD-33 BESPOKE
TRD-38 BESPOKE
TRD-44 BESPOKE
TRD-48 BESPOKE
SAFETY INFORMATION
if the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

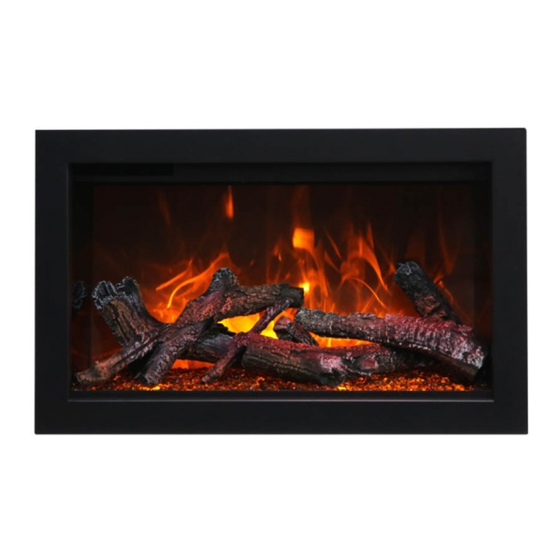

ELECTRIC FIREPLACE
www.amantii.com
BS2000026-1/EU4
BS2000030-1/EU4
BS2000033-1/EU4
BS2000038-1/EU4
BS2000044-1/EU4
BS2000048-1/EU4
WARNING
WARNING: This product can expose you to chemicals including
lead in the wiring, which is [are] known to the State of California
to cause birth defects of other reproductive harm. For more
information visit: www.p65warnings.ca.gov
01
Revised - 08.14.21
Advertisement
Table of Contents
Related Manuals for Amantii TRD-26 BESPOKE
Summary of Contents for Amantii TRD-26 BESPOKE
- Page 1 ELECTRIC FIREPLACE www.amantii.com INSTALLATION AND OPERATION INSTRUCTIONS FOR BS2000026-1/EU4 TRD-26 BESPOKE BS2000030-1/EU4 TRD-30 BESPOKE BS2000033-1/EU4 TRD-33 BESPOKE BS2000038-1/EU4 TRD-38 BESPOKE BS2000044-1/EU4 TRD-44 BESPOKE BS2000048-1/EU4 TRD-48 BESPOKE SAFETY INFORMATION WARNING if the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of depend- able and enjoyable service from your Amantii Electric Fireplace. IMPORTANT INSTRUCTIONS............................03 CAUTIONS..................................04... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS Please read the following instructions carefully before using the appliance. Caution - Fire, electric shock, physical injury and material damage hazards: To use the appliance, always follow the instructions for assembly, use and maintenance as well as usage cautions: 1. -
Page 4: Cautions
CAUTIONS Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or carrying out Do’s cleaning, maintenance. -
Page 5: Plug Installation
PLUG INSTALLATION Your power cord will come separate from the unit, please locate it when unpacking your fireplace. The plug contained inside the box is predetermined at the factory and according to orders placed by authorized dealers. Available are UK, European, Swiss & Australian plugs. Should you require any of these options please contact your dealer for purchase. -
Page 6: Product Specification
PRODUCT SPECIFICATION BS2000026-1/EU4 BS2000030-1/EU4 BS2000033-1/EU4 product model (TRD-26 BESPOKE) (TRD-30 BESPOKE) (TRD-33 BESPOKE) Voltage 220-240V AC 50Hz Watts 1700-2000W 5802-6826 L=70.9” Cord Length L=180 cm Appliance size 25 1/4”x 11 3/8” x 16 3/4” 29 3/8”x 11 3/8” x 19 1/8”... - Page 7 BS2000038-1/EU4 BS2000044-1/EU4 BS2000048-1/EU4 product model (TRD-38 BESPOKE) (TRD-44 BESPOKE) (TRD-48 BESPOKE) Voltage 220-240V AC 50Hz Watts 1700-2000W 5802-6826 L=70.9” Cord Length L=180 cm Appliance size 37 1/8”x 12 3/8” x 27 1/4” 43 1/4”x 13 3/4” x 31 5/8” 47 1/4”x 13 3/4” x 41 5/8” (W x D x H) 94.4 x 31.3 x 69.1 cm 109.8 x 34.8 x 80.3 cm...
-
Page 8: Installation- Built-In
INSTALLATION- BUILT-IN NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. Preparation 1. Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away from combustible materi- als such as curtains, drapes, furniture, bedding, paper,etc. - Page 9 4. Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make sure that the fireplace fits the wall opening well and there is no gap between the trim and the wall after installation) 5. Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side. Screw the appliance onto the wall 6.
-
Page 10: Installing The Decorative Media
INSTALLING THE DECORATIVE MEDIA 1. Unscrew 4 screws and take off the trim. (NOTE: Keep hold of the front glass as it may fall down automatically when the trim is removed.) Screws Located Here Magnetic Stones located here 2. Carefully remove the front glass panel once the trim has been removed. Use caution as the glass is now loose. 3.Pour the fire glass media into the tray. -
Page 11: Hardwire Installation
HARDWIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. If it is necessary to hardwire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring. -
Page 12: Manual Operation
MANUAL OPERATION The fireplace operates either by the touch panel located on the left front top side of the fireplace or by supplied remote control. Ensure that the ON / OFF Power Switch on the fireplace is in the ON position. Touch the control panel once to “wakes up”... -
Page 13: Remote Control Operation
REMOTE CONTROL OPERATION For the remote to function make sure the fireplace is plugged in and the ON / OFF Power Switch on the fireplace is in the ON position and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. Each time you press the button, there will be a beep tone emitted. - Page 14 Each time Speed Button is pressed, the speed of the flame will change. Three options are available: Medium- High- Low. The Moodlight Button turns the moodlight on and off. When in on position, the display screen of the remote control shows AD 1, when the number “1” flash, you can set the color of moodlight with keys.
-
Page 15: Energy Saving Function
7 day timer function NOTE: Ensure that the current time setting accurate, otherwise the effective time of the 7 day timer function will be different from what you set. Press the key once, 7 days from Monday to Sunday will display on the LCD screen of the remote control, press key within 5 seconds to enter 7 day timer function . -
Page 16: Trouble Shooting
TROUBLE SHOOTING Fault code Fault Cause Solution The heater overheating Call after-sales service. NTC is defective. Call after-sales service. If the vents are dirty or clogged. Unplug the power, The heater not working. clean the dust and debris of the vent area. Wait for 5 minutes, plug in and turn on the heater. -
Page 17: Replacement Parts
REPLACEMENT PARTS PART NUMBER BS2000026-1/EU4 BS2000030-1/EU4 BS2000033-1/EU4 BS2000038-1/EU4 BS2000044-1/EU4 BS2000048-1/EU4 DESCRIPTION (TRD-44 BESPOKE) (TRD-26 BESPOKE) (TRD-30 BESPOKE) (TRD-33 BESPOKE) (TRD-38 BESPOKE) (TRD-48 BESPOKE) LED STRIP 3000181230001961-33 30001812-38 30001859-44 FOR EMBER BED LED STRIP 30002059-33 30002056-38 30002059-44 FOR FLAME FRONT GLASS... -
Page 18: Exploded View
EXPLODED VIEW...
