INSTALLATION /OWNER'S MANUAL

40-TRU-VIEW-XL

(TV-190040-01)

50-TRU-VIEW-XL

(TV-190050-01)

60-TRU-VIEW-XL

(TV-190060-01)

72-TRU-VIEW-XL

(TV-190072-01)

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

TRU-VIEW-XL SERIES

Table of Contents

Need help?

Do you have a question about the TRU-VIEW-XL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Amantii TRU-VIEW-XL Series

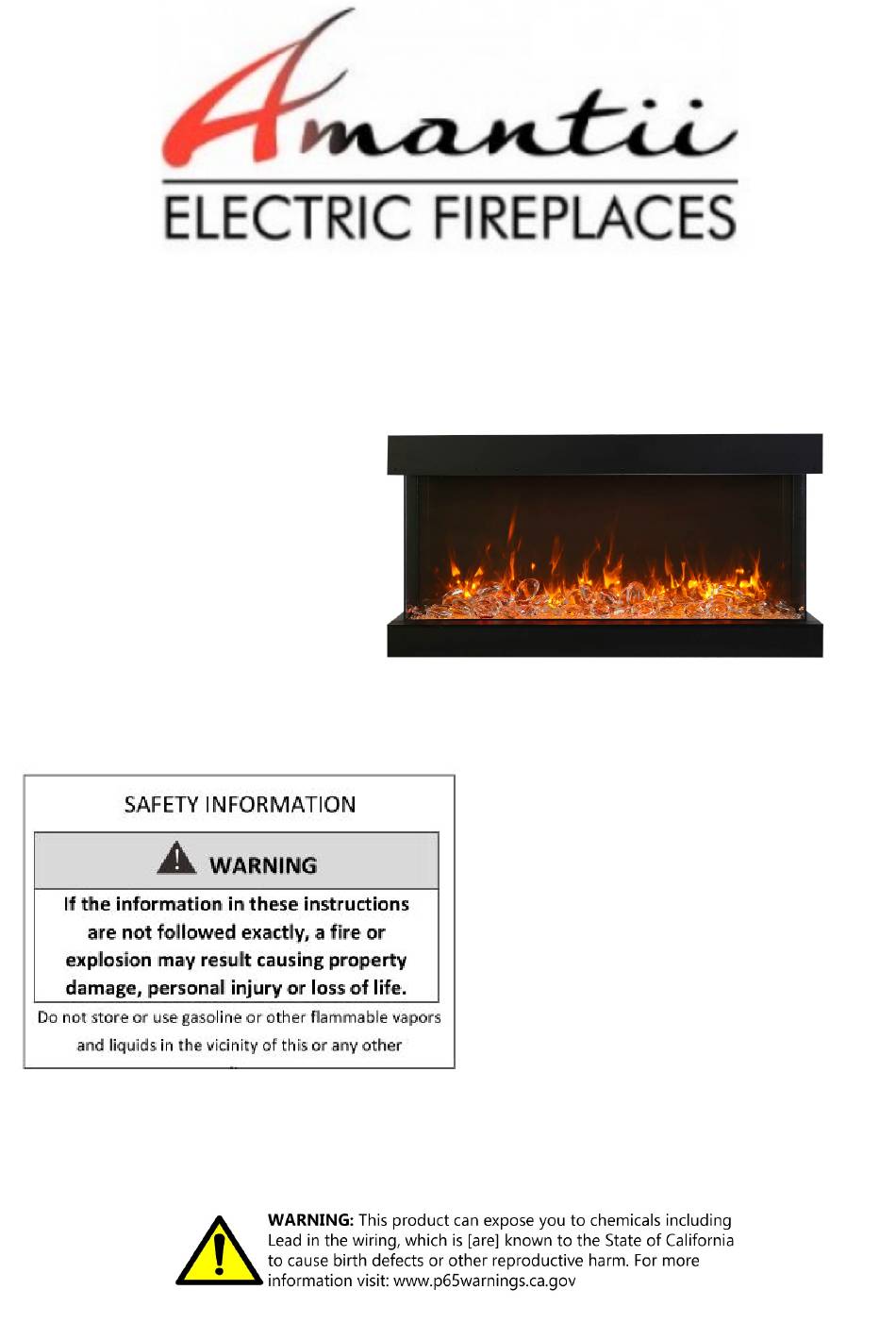

Page 1 INSTALLATION /OWNER’S MANUAL TRU-VIEW-XL SERIES 40-TRU-VIEW-XL (TV-190040-01) 50-TRU-VIEW-XL (TV-190050-01) 60-TRU-VIEW-XL (TV-190060-01) 72-TRU-VIEW-XL (TV-190072-01) INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS ............................FCC CAUTIONS ..................................
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use.
Page 4: Fcc Cautions
FCC CAUTIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 5: Unpacking And Testing The Appliance
UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components operate correctly.
Page 6: 40-Tru-View-Xl (Tv-190040-01)
40-TRU-VIEW-XL (TV-190040-01) Description Built-in Appliance This appliance been tested Voltage 120V AC 60Hz accordance with the UL Standard 2021 for Watts 1500W Max fixed and location dedicated electric room NO HEATER appliances in the United States and Canada. MOTOR HEATER If you need assistance during installation, Appliance Width 43 1/4”...
Page 7: 50-Tru-View-Xl (Tv-190050-01)
50-TRU-VIEW-XL (TV-190050-01) This appliance been tested Description Built-in Appliance accordance with the UL Standard 2021 for Voltage 120V AC 60Hz fixed and location dedicated electric room Watts 1500W Max appliances in the United States and Canada. NO HEATER If you need assistance during installation, MOTOR HEATER please contact your local dealer.
Page 8: 60-Tru-View-Xl (Tv-190060-01)
60-TRU-VIEW-XL (TV-190060-01) Model Number Build-in Appliance This appliance been tested accordance with the UL Standard 2021 for Voltage 120V AC 60Hz fixed and location dedicated electric room Watts 1500W Max appliances in the United States and Canada. NO HEATER If you need assistance during installation, MOTOR HEATER please contact your local dealer.
Page 9: 72-Tru-View-Xl (Tv-190072-01)
72-TRU-VIEW-XL (TV-190072-01) Description Built-in Appliance This appliance been tested accordance with the UL Standard 2021 for Voltage 120V AC 60Hz fixed and location dedicated electric room Watts 1500W Max appliances in the United States and Canada. NO HEATER If you need assistance during installation, MOTOR HEATER please contact your local dealer.
Page 10: For Bathroom Use
FOR BATHROOM USE If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is used it must be readily accessible. To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight and must be installed as to prevent water from entering unit.
Page 11: Safety Drill Screw Area
SAFETY DRILL SCREW AREA There is a safety drill screw area as show below. Please make sure that the fix screws are in this area. Sa fe ty d rill s cre w a re a (Da rk a re a ) OUTDOOR INSTALLATION This electric fireplace is suitable for installation in outdoor areas protected from direct water impingement.
Page 12: Installation
INSTALLATION The TRU-VIEW-XL models are designed to be built-in and allow for the finishing material (drywall, stone, tile, etc) to be built right down to the glass edge. The rough wall opening size of the fireplace: NOTE: Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance.
Page 13 framing plate framing plate 5. Make an opening for the fireplace according to requested measurement. 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
Page 14 8. Decorate the plywood or drywall with glazed fending bar and panel. tile, wallpaper, etc. 3. After the fending panel is removed, screw back the bar. Installation for Front and Right Side Viewing 1. To install the fireplace where the left side is close to a wall, and you want to view the fire from front and right side, take off the fending panel on the right.
Page 15 5. Make an opening for the fireplace according 7. After checking that the fireplace operates to requested measurement. properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
Page 16 Installation for Front and Left Side Viewing 1. Install the fireplace where the right side is close to a wall, and you want to view the fire from front and left side, take off the fending panel on the left. 4.
Page 17 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs. To fix the bottom of the fireplace and the wall studs with the 8.
Page 18: Hardwire Installation
HARDWIRE INSTALLATION 1. 120V, 40-TRU-VIEW-XL (TV-190040-01) only Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance.
Page 19 2. 120V, 50/60/72-TRU-VIEW-XL (TV-190050/60/72-01) only 2.1 WIRING DIAGRAM Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance on the top left corner. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS APPLIANCE OPERATION.
Page 20 3. 240V, 50/60/72-TRU-VIEW-XL (TV-190050/60/72-01) only 3.1 WIRING DIAGRAM Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance on the top left corner. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS APPLIANCE OPERATION.
Page 21: Media Options
Media Options The fireplace comes with no media. Consumers may purchase optional decorative media if they choose. See dealer for more details. Media Operation 1. Unscrew 2 screws and take off two brackets which 3. Take off the front glass panel and put it in safe place. are fending the front glass panel.
Page 22: Operation
OPERATION The Fireplace operates by using either the touch panel located on the upper left hand corner or by remote control. Plug the fireplace into a 15 Amp wall socket. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION 1.
Page 23: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the fireplace is plugged in and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes some time for the receiver to respond to the transmitter.
Page 24 third time to turn on the AUTO mode, press to set the temperature to switch temperature unit between Celsius and Fahrenheit. Press this button to adjust the speed of the flame. There are 3 options: High- Medium- Low. Press this button to turn on and off the ember bed light. When in ON position, the display screen of the remote control shows AD 1, when the number “1”...
Page 25 When the 7 day timer’s set, the icon will be displayed on the LCD screen of the remote control. Press again to cancel the 7 da y timer and the icon will disappears. NOTE: If the 7 day timing and the general timing are set at the same time, the system will respond to an earlier shutdown time.
Page 26: Wifi Operation
WIFI OPERATION INSTALL TuyaSmart life There are 2 ways to install TuyaSmart; 1. Search for “TuyaSmart life” in the APP store on your phone, download and install. 2. Scan the QR code below with your mobile phone. WIFI SETTING AND FIREPLACE OPERATION 1.
Page 27 FIG.4 3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds when the fireplace in standby mode. There will be 2 beeps come out from the fireplace and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then please confirm to go next.
Page 28 6. Now you are in the interface like FIG.7. You can operate the fireplace via Wi-fi. FIG.7...
Page 30: Exploded View
EXPLODED VIEW...
Page 31 Wiring Diagram...
Page 32: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary. Ember Ember LED’s are burnt out Inspect the ember bed LED’s and glowing or dimming replace them if necessary. Appliance turns off and Appliance has overheated and Turn off the main switch, allow...
Page 33: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:...
