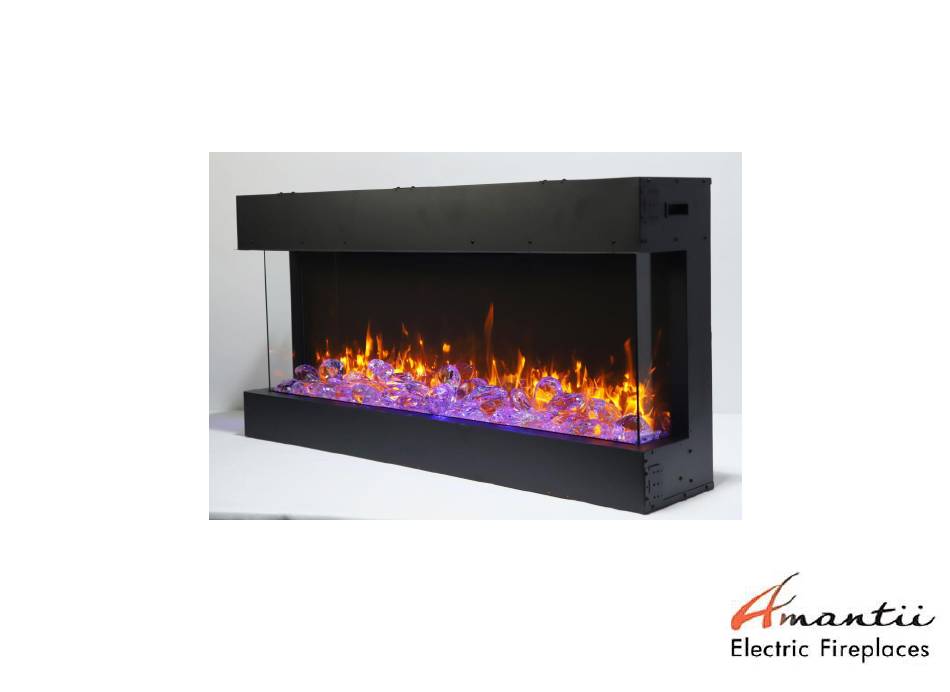

- Page 1 Fix your Fireplace TRV-SLIM/TRV-XL-XT...
- Page 2 Content • How to replace LED light • How to replace flicker motor • How to replace heating element • How to replace the PCB board • How to replace the signal receiver • How to replace the canopy light...
- Page 3 Replace LED light Step 1 Replace ember bed LED light Unscrew the screw Unscrew one screw on both sides and then to remove the front glass.
- Page 4 After two screws are removed, the front glass will fall out automatically. Front glass...
- Page 5 Step 2 Zoomed view Unscrew two screws on both sides and then to take off two bars and the ember bed glass panel...
- Page 6 After the screws and fending bars are removed, you can take off the ember bed glass panel and one black long steel bar with it.
- Page 7 Step 3 After the ember bed glass panel is removed, now you can replace the LED light for ember bed effect.(Replace flame light see STEP4)
- Page 8 Zoomed view Zoomed view Step 4 Unscrew 2 screws on the left and right sides of the fireplace (where the arrows marked) to take off the fending bars. After the bars are taken, you can remove two side glass panels.
- Page 9 Screws and fending bars Side glass panels After screws and fending bars are removed, now you can take off the side glass panels.
- Page 10 The front glass fending bar locates here Step 5 Unscrew the screws on the left and right sides from the front glass fending bar to take it off the fireplace...
- Page 11 Step 6 The top light locates here Unscrew 3 screws then unplug to take off the canopy light from the fireplace.
- Page 12 The back glass fending bar locates here Step7 Unscrew the screws and take off the back glass fending bar. (Zoomed picture in the next page)
- Page 13 Screws that fix Fending bar the fending bar...
- Page 14 Back glass Fending bar After fending bar is removed, now you can take Step 8 off the back glass panel. You come to here.
- Page 15 Step 9 Unscrew 2 screws each on left and right side to take off the flame stencil. And you can see the LED strips for flame. Replace those don’t work.
- Page 16 Replace the flicker motor Please follow Step 1 to 2 in replacing LED light, you come to here Motor for ember bed locates here...
- Page 17 Replace flicker motor for ember bed effect The flicker motor for ember bed effect is beneath the ember bed glass panel. Step 1 Unscrew screw then Unscrew the screws to take off the disconnect the flicker rod from the motor from the fireplace motor...
- Page 18 Please follow Step 1 to 9 in replacing LED light Unscrew 2 screws on left and right side to take off the flame stencil. And you can see the flame motor.
- Page 19 The flicker motor for flame effect is behind the flame stencil. Step 1 Unscrew screw then Unscrew the screws to take off the disconnect the flicker rod from the motor from the fireplace motor...
- Page 20 Replace the heating element Please follow Step 1 in replacing LED light, you come to here The heating element locates here...
- Page 21 Step 1 Unscrew the screws on the left and right sides from the front glass fending bar to take it off the fireplace...
- Page 22 Step 2 Unscrew 5 screws, then pull the heating element set down.
- Page 23 Step 3 Dismantle the heating element.
- Page 24 Unscrew 4 screws and you can separate the heater from the heating element set.
- Page 25 Step 4 Unplug and you can replace the heater.
- Page 26 Replace PCB board Please follow Step 1 to 2 in replacing LED light, you come to here The PCB board locates here...
- Page 27 Step 1 Unscrew 4 screws, then pull the control board down and the PCB board is fixed on it...
- Page 28 Step 2 Unplug, unscrew the 5 screws circled in red and replace the PCB board.
- Page 29 Replace signal receiver Please follow Step 1 to 8 in replacing LED light, you come to here The signal receiver locates here...
- Page 30 Step 1 Unscrew 2 screws...
- Page 31 Step 2 Please follow step1 in replace PCB board. Unplug and signal receiver from the PCB board and replace a new receiver.
- Page 32 Replace Canopy light Step 1 Unscrew the screw Unscrew one screw on both sides and then to remove the front glass.
- Page 33 The top light locates here Zoomed view Step 2 Unscrew 3 screws then unplug to replace the top light.
