INSTALLATION /OWNER'S MANUAL

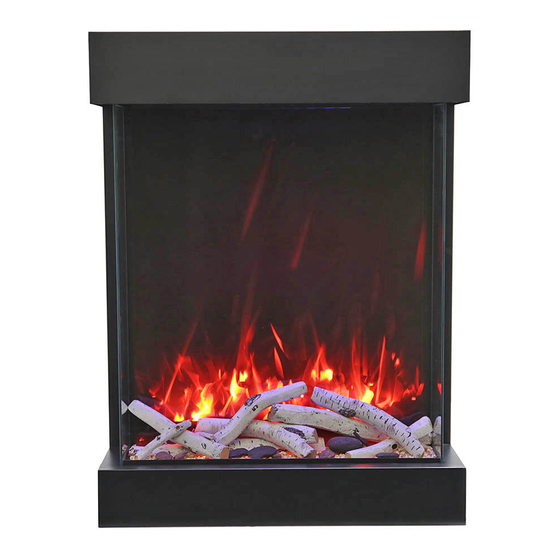

2939-TRU-VIEW-XL
( TV2939-1)
SAFETY INFORMATION
WARNING
For your safety, always comply with all
warnings and safety instructions
contained in this manual to prevent
personal injury or property damage.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this appliance.
INSTALLER: LEAVE OWNER'S MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN OWNER'S MANUAL FOR FUTURE REFERENCE.
Version:202210
Advertisement
Table of Contents
Related Manuals for Amantii 2939-TRU-VIEW-XL
Summary of Contents for Amantii 2939-TRU-VIEW-XL
- Page 1 INSTALLATION /OWNER’S MANUAL 2939-TRU-VIEW-XL ( TV2939-1) SAFETY INFORMATION WARNING For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS ............................FCC CAUTIONS .................................. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use. -
Page 4: Fcc Cautions
FCC CAUTIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Unpacking And Testing The Appliance
UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components operate correctly. -
Page 6: 2939-Tru-View-Xl (Tv2939-1)
2939-TRU-VIEW-XL (TV2939-1) This appliance has been tested in Description ELECTRIC FIREPLACE accordance with the UL Standard 2021 Voltage 120V AC 60Hz for fixed and location dedicated Watts 1500W Max electric room appliances in the United NO HEATER States and Canada. If you need... - Page 7 2939-TRU-VIEW-XL (TV2939-1) This appliance has been tested in Description ELECTRIC FIREPLACE accordance with the UL Standard 2021 Voltage 120V AC 60Hz for fixed and location dedicated Watts 1500W Max electric room appliances in the United NO HEATER States and Canada. If you need...
-
Page 8: Installation Wall-Mount
INSTALLATION WALL-MOUNT NOTE: Due to variables in installation location and materials, it is highly recommended that you consult your local builder before you install this appliance. 1. Select a location that is not prone to moisture and is located at least 0.91 m or 3 feet away from combustible materials such as curtains or drapes, furniture, bedding, paper, etc. -
Page 9: Installation Built-In
INSTALLATION BUILT-IN 1. Carefully remove the appliance from the box. Prior to installation, test to make sure the fireplace operates properly. 2. Get the bracket and framing from the parts kit, and screw them to the fireplace as shows below. bracket framing framing... - Page 10 3. Use the brackets you used in Step 2 to fix the completed mantel to the fireplace. 4. After checking that the fireplace operates properly, you may now decorate the surrounding area with a finish of your choice.
-
Page 11: Installation Outdoor
INSTALLATION OUTDOOR 2939-TRU-VIEW-XL electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance. -
Page 12: Hardwire Installation
HARD- WIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified technician should service and repair this electric appliance. -
Page 13: Media Options
MEDIA OPTIONS Your fireplace ships with a 10 piece Birch Log STEP 3: Remove the front glass panel to Set, two (2) bags of Smoke Glass, one (1) bag decorate your fireplace. Pour the decorative of Black Vermiculite and one (1) bag of White media into the tray. -
Page 14: Operation
OPERATION The Fireplace operates by using either the touch panel located on the upper right hand corner or by remote control. Plug the fireplace into a 15 Amp wall socket. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION Press to turn on and off the fireplace. -
Page 15: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the fireplace is plugged in and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes some time for the receiver to respond to the transmitter. - Page 16 AUTO means fireplace can automatically adjust to the temperature you set. When in AUTO, you can set the desired temperature with keys. You can switch temperature between Celsius and Fahrenheit with keys.When it is on Auto mode,fireplace operate at 1500W. Press this button to adjust the speed of the flame.
- Page 17 When the 7 day timer’s set, the icon will be displayed on the LCD screen of the remote control. Press again to cancel the 7 da y timer and the icon will disappears. NOTE: If the 7 day timing and the general timing are set at the same time, the system will respond to an earlier shutdown time.
-
Page 18: Wifi Operation
WIFI OPERATION INSTALL TuyaSmart life There are 2 ways to install TuyaSmart; 1. Search for “TuyaSmart life” in the APP store on your phone, download and install. 2. Scan the QR code below with your mobile phone. WIFI SETTING AND FIREPLACE OPERATION 1. - Page 19 FIG.4 3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds when the fireplace in standby mode. There will be 2 beeps come out from the fireplace and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then please confirm to go next.
- Page 20 6. Now you are in the interface like FIG.7. You can operate the fireplace via Wi-fi. FIG.7 NOTE: Turn off the flashing blue Wifi indicator light Touch the (power button) once, the blue light will stop flashing.
-
Page 21: Replacement Parts
REPLACEMENT PARTS Ref. Description Quantity Parts number Trim Not applicable Adjustable screws 10201505 Front glass bracket 3123010 10701373 Front glass Back glass 10702242 Tray glass 10702243 Side glass 10701374 Black glass - Left Not applicable Black glass - Right Not applicable Glass bracket - Left 3214010 Glass bracket - Right... -
Page 22: Exploded View
EXPLODED VIEW... -
Page 23: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out. Inspect the LED’s and replace them if necessary. Back black cloth is falling off Change a flicker and back black cloth. and rolled up in the flicker. Ember Ember LED’s are burnt out Inspect the ember bed LED’s and... -
Page 24: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:... -
Page 25: Warranty
Products covered by this limited warranty have been tested and inspected prior to shipment and, subject to the provisions of this warranty, Amantii warrants such products to be free from defects in material and workmanship for a period of five (5) years from the date of the first purchase of such products. - Page 26 The provisions of the United Nations Convention on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of products covered by this limited warranty. GENERAL Amantii reserves the right to make changes at any time without notice, in design, material, specifi cations, prices and the right to discontinue styles and products. GLASS...
