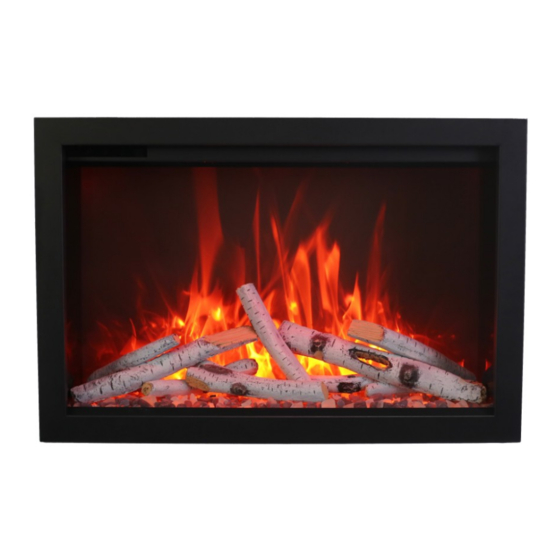

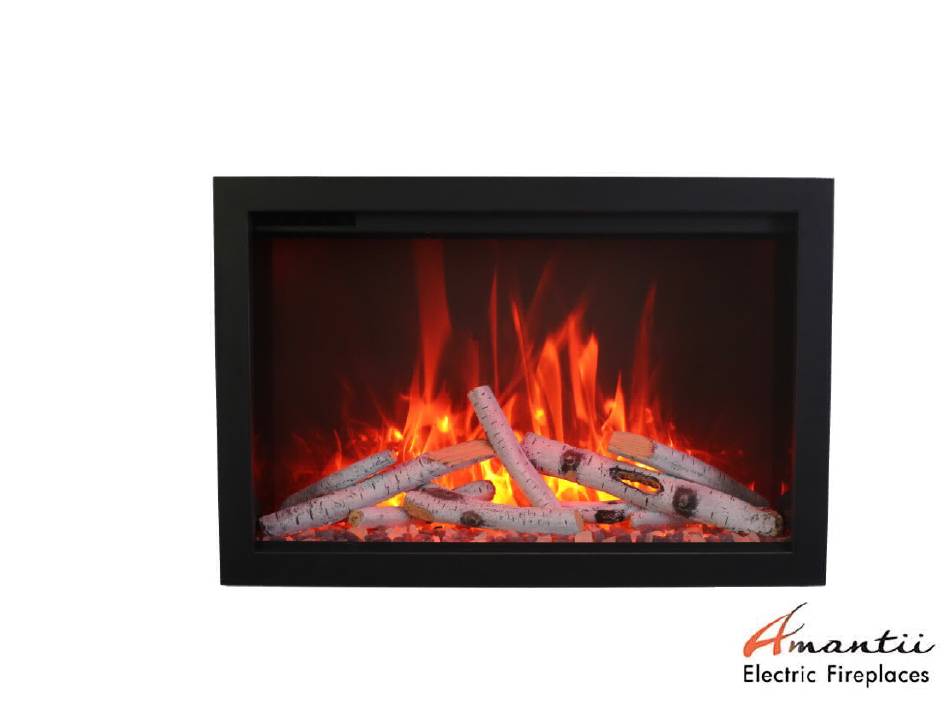

- Page 1 Fix your Fireplace TRD series...
- Page 2 Content • How to replace LED light (ember bed light and flame light • How to replace flicker motor • How to replace the PCB board • How to replace heating element • How to replace the touch panel • How to replace the canopy light •...
- Page 3 Replace LED light For ember bed Step 1 Unscrew 2 screws from the trim where marked red arrows. Horizontal view Front view...
- Page 4 Step 2 When the screws are removed, you can take off the trim. Please mind there are magnetic stones fixed at the bottom of the trim connecting the trim and the fireplace. The fireplace Magnetic stone The trim...
- Page 5 Step 3 When the trim is removed, you can take off the front glass panel.
- Page 6 Step 4 Unscrew the 2 screws on each side to take off the inner side metal piece fixing the ember bed glass panel. Inner side metal piece...
- Page 7 Step 5 After the inner side metal pieces are removed, you can take off the ember bed glass panel now.
- Page 8 Step 6 Now you can replace LED light for ember. Unplug to replace it.
- Page 9 LED light for the flame Step 7 Unscrew the screws to take off the metal bar fixing the back glass panel.
- Page 10 Step 8 After metal bar is removed, now you can take off the back glass. Back glass panel...
- Page 11 Step 9 Unscrew the screws to take off the flame stencil. Flame stencil...
- Page 12 Step 10 When the flame stencil is removed, you can see the LED light for the flame under it. Now you can replace the LED light for the flame.
- Page 13 Replace flicker motor for the flame Please follow Step 1 to 9 in replacing LED light. Flicker motor for the flame lies here...
- Page 14 Step 1 Step 2 Unscrew screw then Unscrew the screws to take off the disconnect the flicker rod from the motor from the fireplace motor...
- Page 15 Replace PCB Board Please follow Step 1 to 3 in replacing LED light. Step 1 Unscrew the screws on 4 sides to take off the top cover. Front Back Right Left...
- Page 16 Step 2 After the screws are removed, you can take off the top cover now. Top cover...
- Page 17 Step 3 Unscrew the screws to replace the PCB board.
- Page 18 Replace heating assembly Please follow Step 1 to 8 in replacing LED light. Step 1 Unscrew the screws to disconnect the heating assembly from the fireplace.
- Page 19 Step 2 Now you can take off the heating assembly from the fireplace. Unscrew the screws to take off the metal pieces from the heating assembly. Unplug to replace the heating assembly. Metal piece...
- Page 20 Replace the touch panel Please follow Step 1 to 3 in replacing LED light. Step 1 Unscrew the screws on 4 sides to take off the top cover. Front Back...
- Page 21 Step 2 Unscrew the screws take off the fireplace.
- Page 22 Step 3 Unplug to replace the touch panel.
- Page 23 Replace the canopy light Please follow Step 1 to 8 in replacing LED light. Step 1 Unscrew the screws to disconnect the canopy light from the fireplace.
- Page 24 Step 2 Step 3 Pull the canopy light out Unplug to replace the under the heating assembly canopy light...
- Page 25 Replace the signal receiver Please follow Step 1 to 8 in replacing LED light. Signal receiver lies here...
- Page 26 Step 2 Step 3 Unscrew the screws Plug to replace the signal receiver Plug for signal receiver...
