01.
INSTALLATION /
OWNERS MANUAL
SAFETY INFORMATION
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other.
CONSUMER: RETAIN THIS MANUAL FOR
FUTURE REFERENCE.
INSTALLER: LEAVE THIS MANUAL WITH
THE APPLIANCE.
Version:202309
WARNING: This product can expose you to chemicals including
lead in the wiring, which is [are] known to the State of California
to cause birth defects or other reproductive harm. For more
information visit: www.p65warnings.ca.gov
www.amantii.com

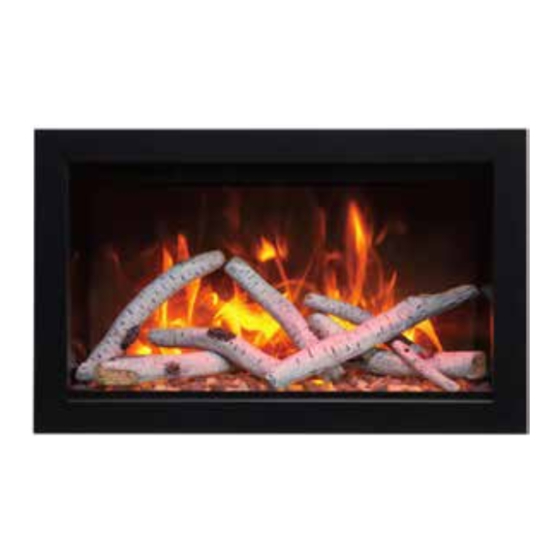

TRD LUMINA
WARNING
MODEL SKU:
01
ELECTRIC FIREPLACES
BS2000026-1
TRD-26-LUMINA
BS2000030-1
TRD-30-LUMINA
BS2000033-1
TRD-33-LUMINA
BS2000038-1
TRD-38-LUMINA
BS2000044-1
TRD-44-LUMINA
BS2000048-1
TRD-48-LUMINA
ELECTRIC FIREPLACES
Advertisement
Table of Contents
Related Manuals for Amantii TRD-26-LUMINA
Summary of Contents for Amantii TRD-26-LUMINA
- Page 1 ELECTRIC FIREPLACES INSTALLATION / OWNERS MANUAL MODEL SKU: TRD LUMINA BS2000026-1 TRD-26-LUMINA BS2000030-1 TRD-30-LUMINA BS2000033-1 TRD-33-LUMINA SAFETY INFORMATION BS2000038-1 TRD-38-LUMINA WARNING If the information in these instructions BS2000044-1 are not followed exactly, a fire or TRD-44-LUMINA explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii Electric Fireplace. IMPORTANT INSTRUCTIONS CAUTIONS... -
Page 3: Important Instructions
1. Read all instructions before installing or using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. If provid- ed, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater. -
Page 4: Cautions
CAUTIONS Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or carrying out cleaning, maintenance. -
Page 5: Fcc Cautions
FCC CAUTIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifcations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 6: Unpacking And Testing Appliance
UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components are operating correctly. - Page 7 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
-
Page 8: Product Specification
In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70 National Electrical Code in the United States. BS2000026-1 BS2000030-1 BS2000033-1 product model TRD-26-LUMINA TRD-30-LUMINA TRD-33-LUMINA Voltage 120V AC 60Hz Watts 1500W L=70.9”... - Page 9 BS2000038-1 BS2000044-1 BS2000048-1 product model TRD-38-LUMINA TRD-44-LUMINA TRD-48-LUMINA Voltage 120V AC 60Hz Watts 1500W L=70.9” Cord Length L=180 cm Appliance size 37 1/8”x 12 5/8” x 26 5/8” 43 1/4”x 14” x 31” 47 1/4”x 14” x 41 1/8” (W x D x H) 94.4 x 32.1 x 67.7 cm 109.8 x 35.6 x 78.9 cm 120 x 35.6 x 104.4 cm...
-
Page 10: Outdoor Installations
OUTDOOR INSTALLATIONS The Symmetry Bespoke Series electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance. -
Page 11: Installation- Built-In
INSTALLATION- BUILT-IN NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. PREPARATION Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away from combustible materials such as curtains, drapes, furniture, bedding, paper, etc. - Page 12 2. Carefully remove the front glass panel once the trim has been removed. Use caution as the glass is now loose. 3. Unscrew the 2 screws located on each side and take off the inner side steel panels. Inner side panels 4.
- Page 13 5. Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side. Screw the appliance onto the wall 6. Remove the trim following STEP 1. Screw back the inner side steel panels. 7.
-
Page 14: Hardwire Installation
HARDWIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. If it is necessary to hardwire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring. This appliance must be electrically connected and grounded in accordance with local codes, if hardwired. -
Page 15: Decorative Media Installation
DECORATIVE MEDIA INSTALLATION Consumers may purchase optional decorative media if they choose. See dealer for more details. 1. Unscrew 4 screws the quantity varies depending on the size of the unit and take off the trim. (NOTE: Keep hold of the front glass as it may fall down automatically when the trim is removed.) Screws Located Here Magnetic Stones located here 2. -
Page 16: Manual Operation
MANUAL OPERATION The fireplace operates either by the touch panel located on the left front top side of the fireplace or by supplied remote control. Ensure that the ON / OFF Power Switch on the fireplace is in the ON position. Touch the control panel once to “wakes up”... -
Page 17: Remote Control Operation
REMOTE CONTROL OPERATION For the remote to function make sure the fireplace is plugged in and the ON / OFF Power Switch on the fireplace is in the ON position and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. - Page 18 Each time Speed Button is pressed, the speed of the flame will change. Three options are available: Medium- High- Low. The Moodlight Button turns the moodlight on and off. When in on position, the display screen of the remote control shows AD 1, when the number “1” flash, you can set the color of moodlight with keys.
- Page 19 7 day timer function NOTE: Ensure that the current time setting accurate, otherwise the effective time of the 7 day timer function will be different from what you set. Press the key once, 7 days from Monday to Sunday will display on the LCD screen of the remote control, press key within 5 seconds to enter 7 day timer function .
-
Page 20: Trouble Shooting
TROUBLE SHOOTING Fault code Fault Cause Solution The heater overheating Call after-sales service. NTC is defective. Call after-sales service. If the vents are dirty or clogged. Unplug the power, The heater not working. clean the dust and debris of the vent area. Wait for 5 minutes, plug in and turn on the heater. -
Page 21: Wiring Diagram
WIRING DIAGRAM POWER PCB EMBER BED LIGHT XTL:26MHz ANTENNA WIFI PCB... -
Page 22: Exploded View
EXPLODED VIEW... -
Page 23: Electric Fireplace Warranty
Should a product or part covered by this limited warranty be proven to be defective, in material or workmanship, and during the two (2) year limited warranty period, Amantii will replace such defective product or part without charge. If Amantii is unable to replace such product, or if replacement is not commercially practicable or cannot be timely done, in its sole discretion Amantii may, in lieu of replacement, choose to refund the purchase price for such product or part. - Page 24 The provisions of the United Nations Convention on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of products covered by this limited warranty. GENERAL Amantii reserves the right to make changes at any time without notice, in design, material, specifi cations, prices and the right to discontinue styles and products. GLASS...
