- Page 1 SABRE SAW MODEL NO: CAT118 PART NO: 3110874 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0220 -rev 1...

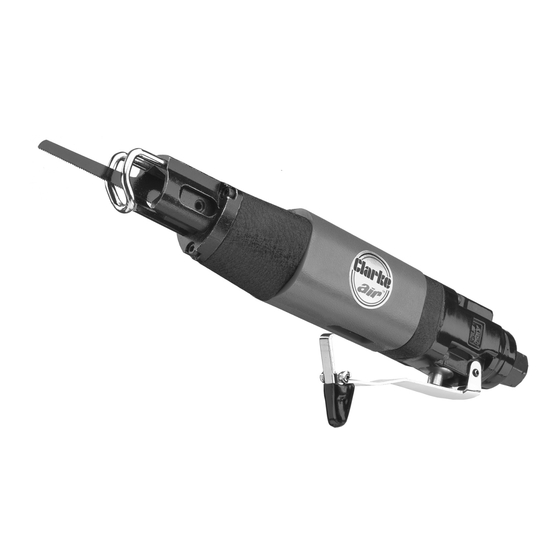

- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Sabre Saw. The CAT118 sabre saw is a compact and ergonomic tool for cutting steel sheet, reinforced fiberglass, aluminum, wood, etc, according to the blade being used. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately: - do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 • Moving to another work area. • Passing the saw to another person. 10. Never use the saw if it is defective or operating abnormally. 11. Always ensure the saw has stopped before putting it down. 12. The saw should be repaired if required by qualified service personnel. 13.
-
Page 5: Product Overview
PRODUCT OVERVIEW NO DESCRIPTION NO DESCRIPTION Blade Safety Trigger Blade securing screw Air inlet Safety lock Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 6: Compressed Air Requirements
COMPRESSED AIR REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND A COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. •... -
Page 7: Before Use
• Never exceed the maximum operating pressure for the air tool. It is recommended that air pressure to this tool does not exceed 90 psi (6.2 bar) at the tool when running. Higher pressures and unclean air will shorten the life of the tool due to faster wear and is a possible safety hazard. - Page 8 • Your sabre saw is now ready for use • You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer.) USEFUL AIRLINE ITEMS FROM THE CLARKE RANGE CAT150 Mini-Oiler:- Part No 3120164 8mm Rubber Whip Hose:-Part No 3120104 CAT58 6mm Recoil Hose with 1/4”bsp connectors (25 feet):-Part No 3110458...
-
Page 9: Operation
OPERATION OPERATING THE SAW 1. Slide the safety lock forward and squeeze the trigger. • Allow the saw to reach full speed before use. 2. Release the trigger to stop the saw. When the blade has stopped remove it from the workpiece. DISCONNECTING THE AIR SUPPLY 1. - Page 10 STORAGE If the saw is to be stored or is idle for longer than 24 hours, run a few drops of Clarke air-line oil into the air inlet and depress the trigger in order to lubricate the internal parts. When not in use, the saw should be disconnected from the air supply and stored in a dry place out of the reach of children.
-
Page 11: Troubleshooting
2. Motor parts worn. 2. Return to Clarke dealer for repair. 3. Worn or sticking 3. Drip air tool lubricating mechanism due to oil into air inlet. Allow oil lack of lubricant. -
Page 12: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Component Parts
COMPONENT PARTS Description No Description Blade Bearing housing Trigger pin Bolt Spring Blade chuck Trigger Spring Bolt Cylinder cap Bolt O-ring Valve stem seat Piston O-ring Piston blade O-ring Spring O-ring Safety nozzle Valve stem Bolt Spring Safety set O-ring Bolt Valve stem housing Housing... -
Page 14: Specification
255 x 41 x 81 mm Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
