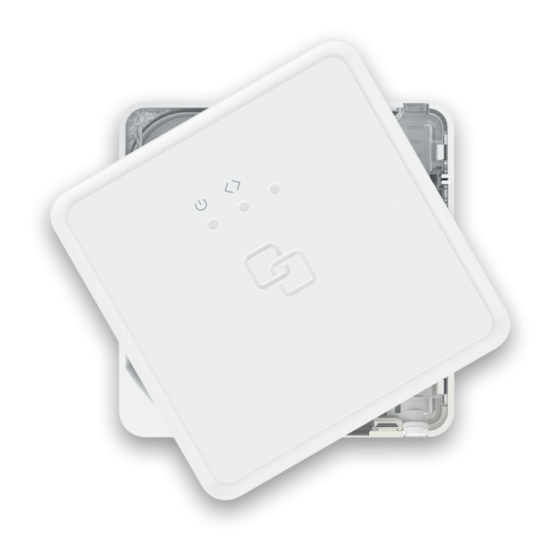

  • Page 1 XGS2310B FiberTwist–Series Installation Guide...

  • Page 2: Button Overview

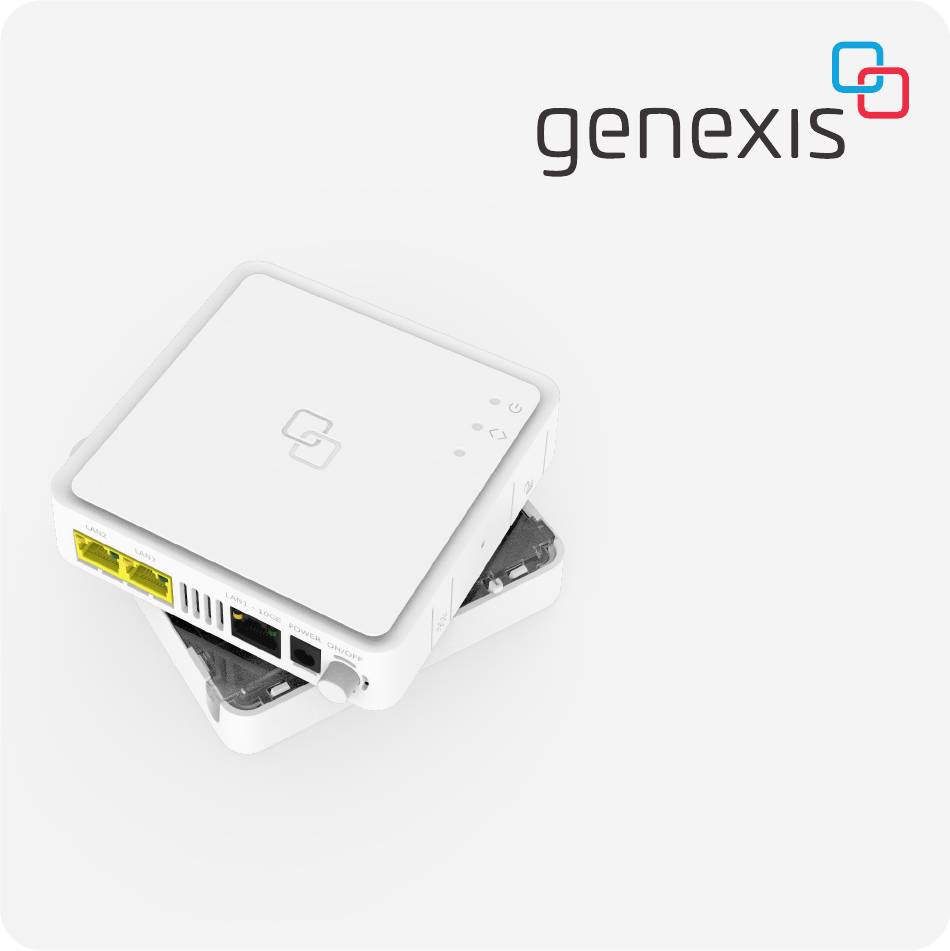

    Button overview Port overview LAN ports ON/OFF button Power port Unlock button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise Reset button (recessed) Reset – press and release LED dim button Dim LEDs – press and release to dim LEDs in steps ON/OFF button Power ON or OFF...

  • Page 3: Led Overview

    LED overview System Green – system ok Green (blinking) – booting / firmware download – power off Uplink Green – link ok Green (blinking) – link establishing – no link...
  • Page 4 2. Rotate the Blind Cover counterclockwise till it blocks. Box contents Important: Instructions need 3. Remove the Blind Cover from the baseplate (FTU) by pulling • Genexis FiberTwist (active device) to be followed precisely and it towards yourself. • Power adapter uninterrupted.
  • Page 5 Remove dust cap Twist! 1. Take the FiberTwist out of the box. 1. Place the FiberTwist on the FTU as shown in the picture below, 2. The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. 2.

  • Page 6: Eu Declaration Of Conformity

    1. If required, connect your personal devices to the LAN ports via an RJ45 network cable. A CAT6 cable or better is recommended. Hereby, Genexis Netherlands B. V . declares that the product FiberTwist-XGS2310B 2. Connect the supplied power adapter to the FiberTwist and plug the adapter is in compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, into a power socket.
  • Page 7 Revision 1.0 - October 2021 - Copyright © 2021 Genexis Netherlands B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
