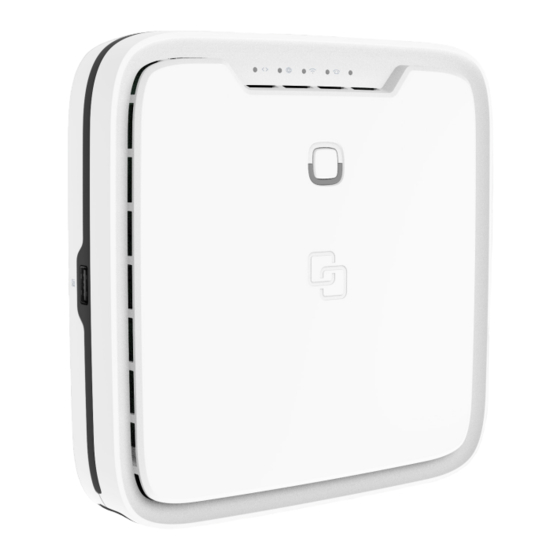

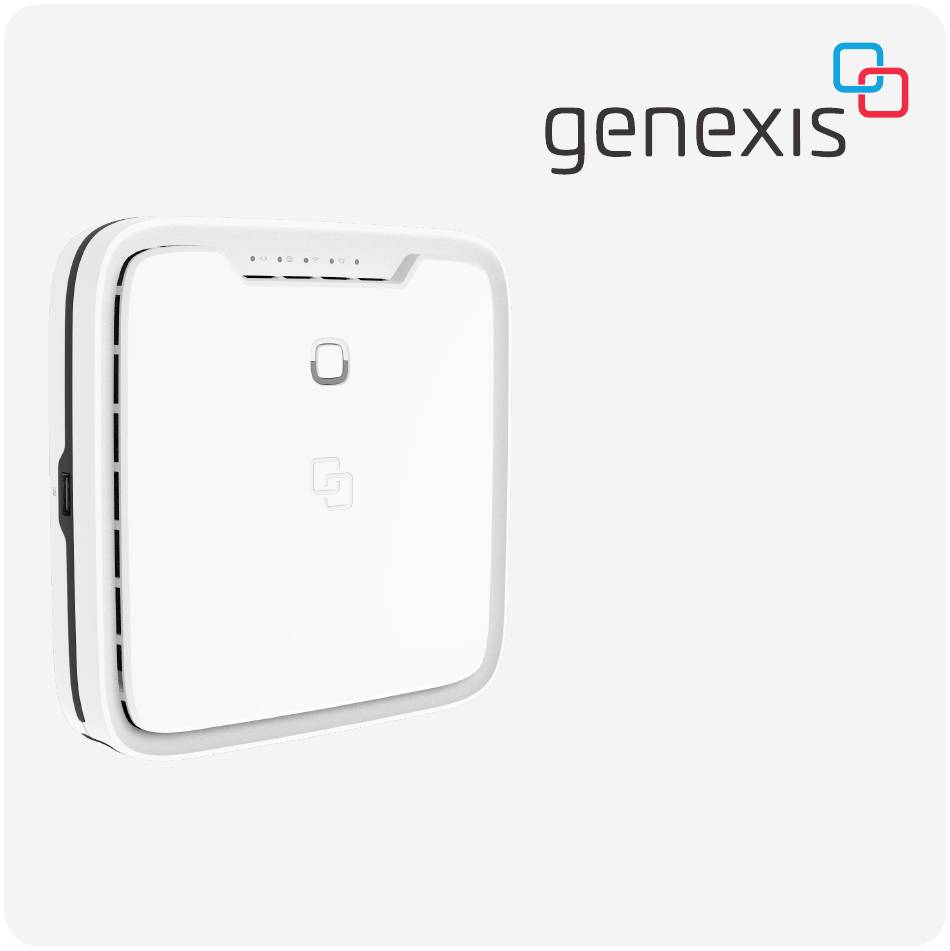

- Page 1 P6414 G6414 FiberTwist Series Installation Guide Wi-Fi EasyMesh™ supported...
- Page 2 Important: Instructions need to be 4. Store the Blind Cover or active device in a safe place. the giftbox: followed precisely and uninterrupted. • Genexis FiberTwist P6414/G6414 This minimizes the risk of damage (a • Power adapter severe degradation of signal quality) •...
- Page 3 Remove dust cap Twist! 1. Take the FiberTwist P6414/G6414 out of the box. 1. Place the FiberTwist P6414/G6414 on the FTU/Bracket as shown in the picture below. 2. The dust cap is connected to the red string 2. Rotate clockwise until it clicks into place. located on the rear of the FiberTwist P6414/G6414.
- Page 4 Setting up the FiberTwist P6414/G6414 Connecting to the wireless network Using the web interface Power saving options 1. If required, connect your telephone to a You can connect your personal device to the You can access the FiberTwist P6414/G6414 Power saving options are available via the telephone port via an RJ11 phone cable.
-
Page 5: Led Overview
LED overview Uplink Green – optical WAN link is established Green (blinking) – optical WAN link is in progress Red (blinking) – insufficient optical input signal – no optical WAN link detected Internet (IP connectivity) Green – connected (DNS available) Green (blinking) –... -
Page 6: Button Overview
Button overview Unlock button Remove FiberTwist P6414/G6414 – press and hold while twisting counterclockwise Mode button Pairing (WPS) – press and release once WiFi ON – press and hold until WiFi LED turns solid green WiFi OFF – press and hold until WiFi LED turns off... -
Page 7: Port Overview
Port overview ON/OFF switch Telephone Reset Power port LAN ports ports button Unlock button LED dim button Dim LEDs – press and release repeatedly USB 2.0 to dim LEDs port Reset button (recessed) ON/OFF switch Reboot – short press once Switch ON –... -
Page 8: Troubleshooting
EU Declaration of Conformity Is the Status LED solid red? Is the Internet LED blinking green for Hereby, Genexis Netherlands B. V . declares that the radio equipment type FiberTwist P6414/G6414 Contact your service provider. 5 minutes? is in compliance with Directive 2014/53/EU, Directive 2009/125/EC, Directive 2011/65/EU and FiberTwist P6414/G6414 does not have a Delegated Directive 2015/863. - Page 9 Revision 1.4 - April 2022 - Copyright © 2022 Genexis Netherlands B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
