Genexis FiberTwist Series Installation Manual
Hide thumbs Also See for FiberTwist Series:

Advertisement

Quick Links

PX2310
FiberTwist–Series
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FiberTwist Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Genexis FiberTwist Series

  • Page 1 PX2310 FiberTwist–Series Installation Guide...

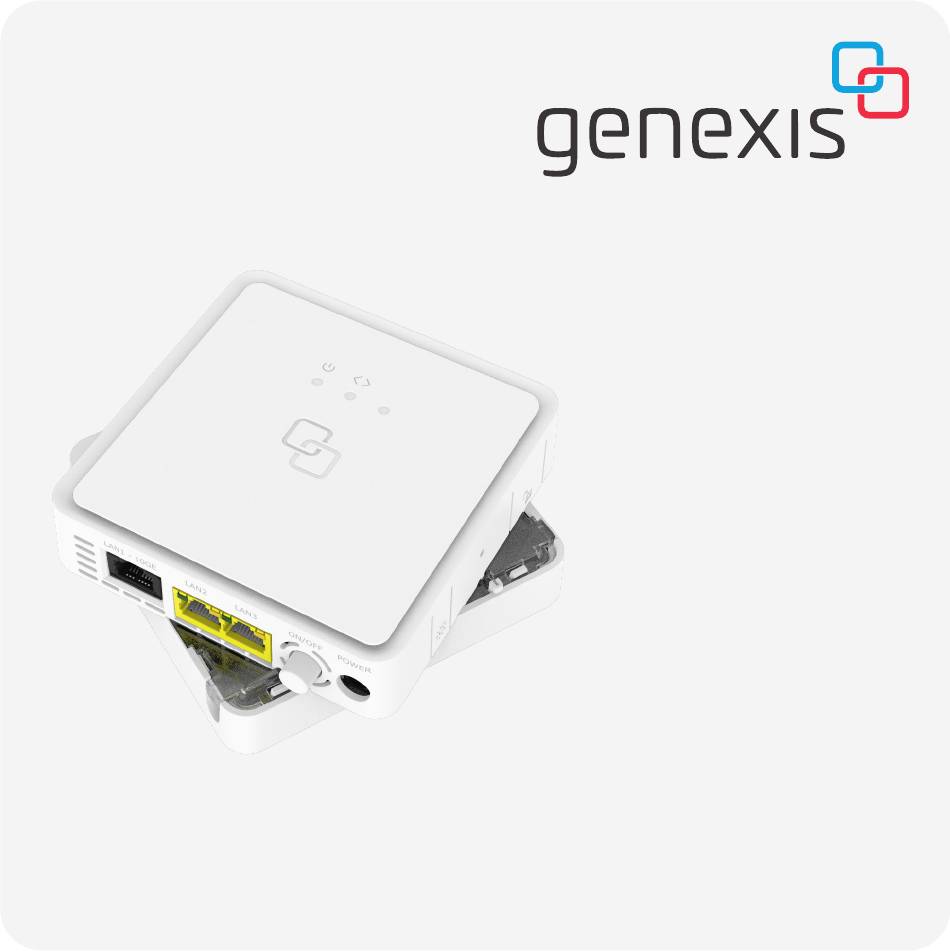

  • Page 2 Button overview Port overview LAN ports Power port ON/OFF Unlock button button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise Reset button (recessed) Reset – press and release LED dim button Dim LEDs – press and release to dim LEDs in steps ON/OFF button Power ON or OFF...
  • Page 3 LED overview System Green – system ok Green (blinking) – booting – system error Red (blinking) – insufficient optical signal – power off Uplink Green – link ok Green (blinking) – link ok, no remote management – no link...
  • Page 4 2. Rotate the Blind Cover counterclockwise till it blocks. Box contents Important: Instructions need 3. Remove the Blind Cover from the baseplate (FTU) by pulling • Genexis FiberTwist (active device) to be followed precisely and it towards yourself. • Power adapter uninterrupted.
  • Page 5 Remove dust cap Twist! 1. Take the FiberTwist out of the box. 1. Place the FiberTwist on the FTU as shown in the picture below, 2. The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. 2.
  • Page 6 1. If required, connect your personal devices to the LAN ports via an RJ45 network cable. A CAT6 cable or better is recommended. Hereby, Genexis Netherlands B. V . declares that the product FiberTwist-PX2310 is 2. Connect the supplied power adapter to the FiberTwist and plug the adapter in compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, Delegated into a power socket.
  • Page 7 Revision 1.1 - May 2021 - Copyright © 2021 Genexis Netherlands B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
