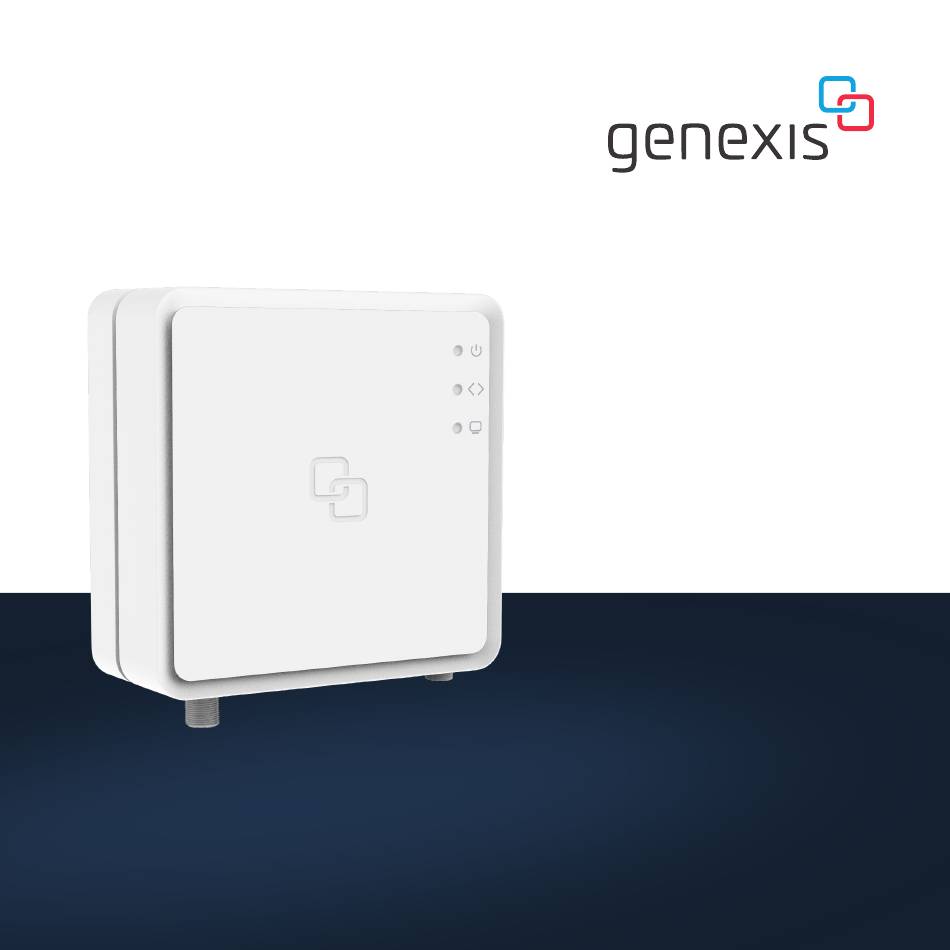

  • Page 1 XGS2120 FiberTwist-Series Installation Guide...
  • Page 2 Button overview Port overview Power port ON/OFF TV port LAN port Unlock button button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise Reset button (recessed) Reset – press and release LED dim button Dim LEDs – press and release to dim LEDs in steps ON/OFF button Power ON or OFF –...
  • Page 3 LED overview System Green – system ok Green (blinking) – booting / firmware download Off – power off Uplink Green – link ok Green (blinking) – link establishing Off – no link Green – TV ok Green (blinking) – insufficient input signal Off –...

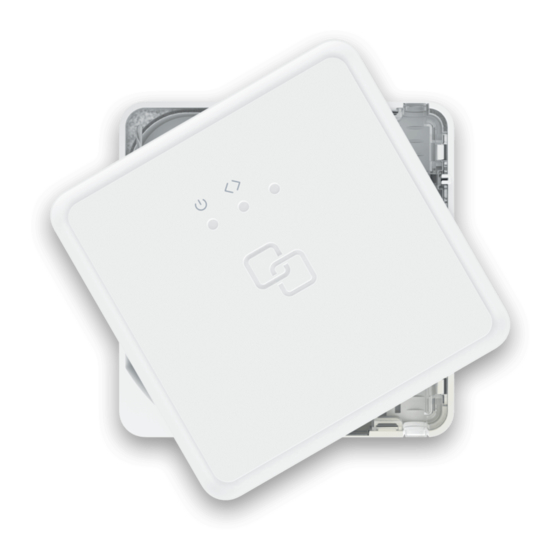

  • Page 4 Installation guide Box contents Remove Blind Cover (if present) • Genexis FiberTwist (active device) Important: Instructions need to be 1. Press and hold the unlock button (see button overview). • Power adapter followed precisely and uninterrupted. 2. Rotate the Blind Cover counterclockwise till it blocks.
  • Page 5 Remove dust cap Twist! 1. Take the FiberTwist out of the box. 1. Place the FiberTwist on the FTU as shown in the picture below, 2. The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. 2.
  • Page 6 1. If required, connect your television / set-top box to the TV port with a coax cable. 2. If required, connect your personal device to the LAN port via an Hereby, Genexis Netherlands B.V. declares that the product FiberTwist-XGS2120 is in RJ45 network cable.
  • Page 7 Revision 1.0 - March 2023 - Copyright © 2023 Genexis Netherlands B.V. All rights reserved. Multiple languages of this document and additional product information are available on https://genexis.eu/product/fibertwist/downloads Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
