XGS2410
FiberTwist Series
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FiberTwist Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genexis FiberTwist Series

Summary of Contents for Genexis FiberTwist Series

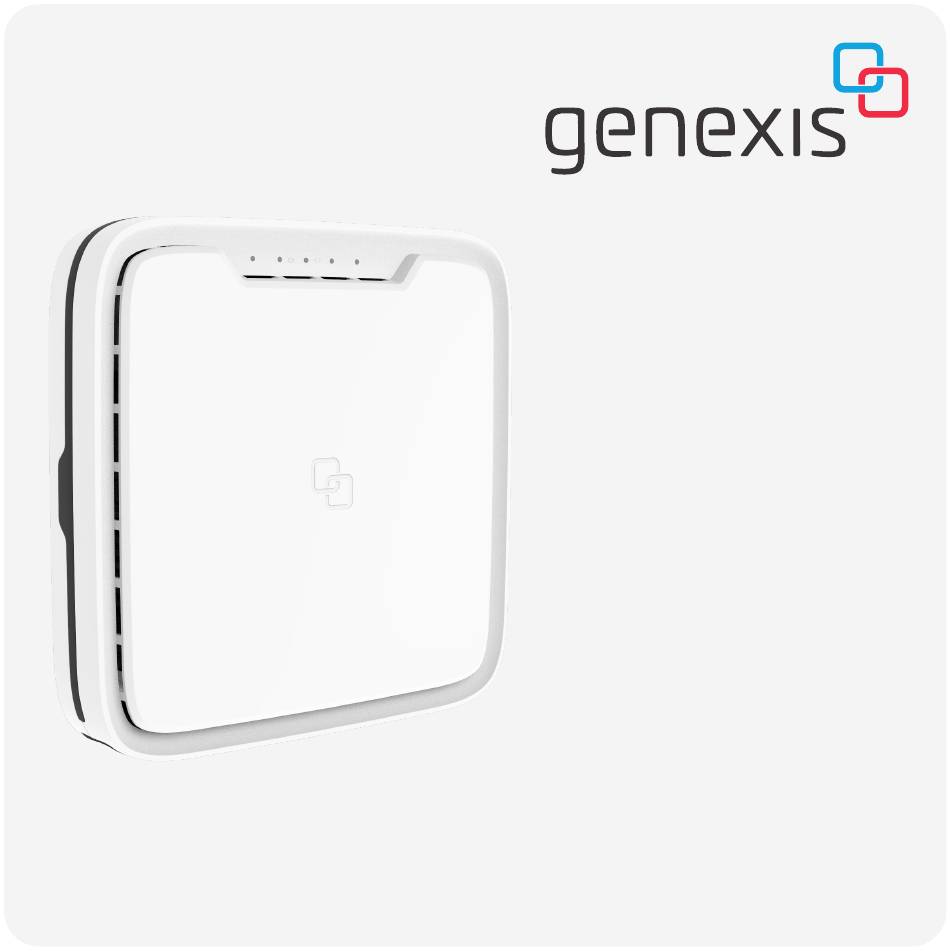

  • Page 1 XGS2410 FiberTwist Series Installation Guide...
  • Page 2 LED overview Power Green – system ok Green (blinking) – booting / firmware download – power off Uplink Green – link ok Green (blinking) – link establishing – no link...
  • Page 3 Button overview Port overview ON/OFF switch Reset Power port LAN ports button Unlock button Remove FiberTwist XGS2410 – press and hold while twisting counterclockwise LED dim button Dim LEDs – press and release repeatedly to dim LEDs Reset button (recessed) ON/OFF switch Reboot –...
  • Page 4 3. Remove the Blind Cover or active device from the baseplate (FTU/Bracket) by pulling Box contents it towards yourself. • Genexis FiberTwist XGS2410 Important: Instructions need to be 4. Store the Blind Cover or active device in a safe place.
  • Page 5 Remove dust cap Twist! 1. Take the FiberTwist XGS2410 out of the box. 1. Place the FiberTwist XGS2410 on the FTU/Bracket as shown in the picture below. 2. The dust cap is connected to the red string 2. Rotate clockwise until it clicks into place. located on the rear of the FiberTwist XGS2410.
  • Page 6 Connecting the FiberTwist 1. If required, connect your personal devices to the LAN ports via an RJ45 network cable. Hereby, Genexis Netherlands B. V . declares that the radio equipment type FiberTwist XGS2410 is A CAT6 cable or better is recommended.
  • Page 7 Revision 1.1 - February 2022 - Copyright © 2022 Genexis Netherlands B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
