G2120B
FiberTwist–Series
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FiberTwist Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genexis FiberTwist Series

Summary of Contents for Genexis FiberTwist Series

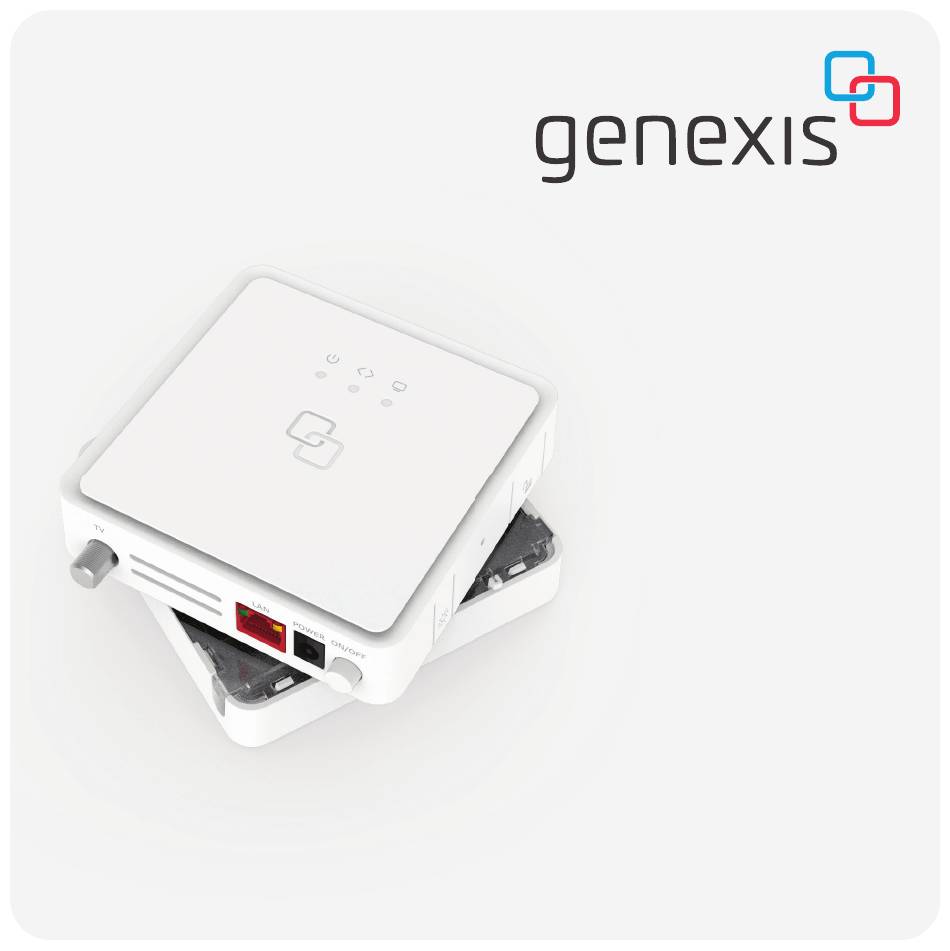

  • Page 1 G2120B FiberTwist–Series Installation Guide...

  • Page 2: Button Overview

    Button overview Port overview CATV port Power port ON/OFF LAN port Unlock button button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise Reset button (recessed) Reset – press and release LED dim button Toggle LEDs – press and release to toggle LEDs ON or OFF ON/OFF button Power ON or OFF...

  • Page 3: Led Overview

    LED overview System Green – system ok Green (blinking) – booting – power off Uplink Green – link ok Green (blinking) – link establishing – no link CATV Green – CATV ok Green (blinking) – insuff icient input signal – no CATV...
  • Page 4 2. Rotate the Blind Cover counterclockwise till it blocks. Box contents Important: Instructions need 3. Remove the Blind Cover from the baseplate (FTU) by pulling • Genexis FiberTwist (active device) to be followed precisely and it towards yourself. • Power adapter uninterrupted.
  • Page 5 Remove dust cap Twist! 1. Take the FiberTwist out of the box. 1. Place the FiberTwist on the FTU as shown in the picture below, 2. The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. 2.

  • Page 6: Eu Declaration Of Conformity

    1. Connect a coax cable to the CATV port. 2. Connect an RJ45 network cable to the LAN port. Hereby, Genexis B. V . declares that the product FiberTwist-G2120B is in compliance 3. Connect the supplied power adapter to the FiberTwist and plug the adapter with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, Delegated Directive into a power socket.
  • Page 7 Revision 1.2 - May 2020 - Copyright © 2020 Genexis B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.

This manual is also suitable for:

Fibertwist g2120b
