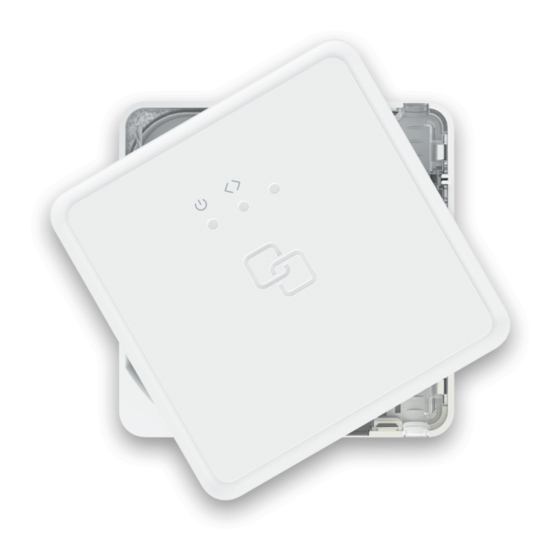

G2172
FiberTwist–Series
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FiberTwist Series and is the answer not in the manual?

Questions and answers

Related Manuals for Genexis FiberTwist Series

Summary of Contents for Genexis FiberTwist Series

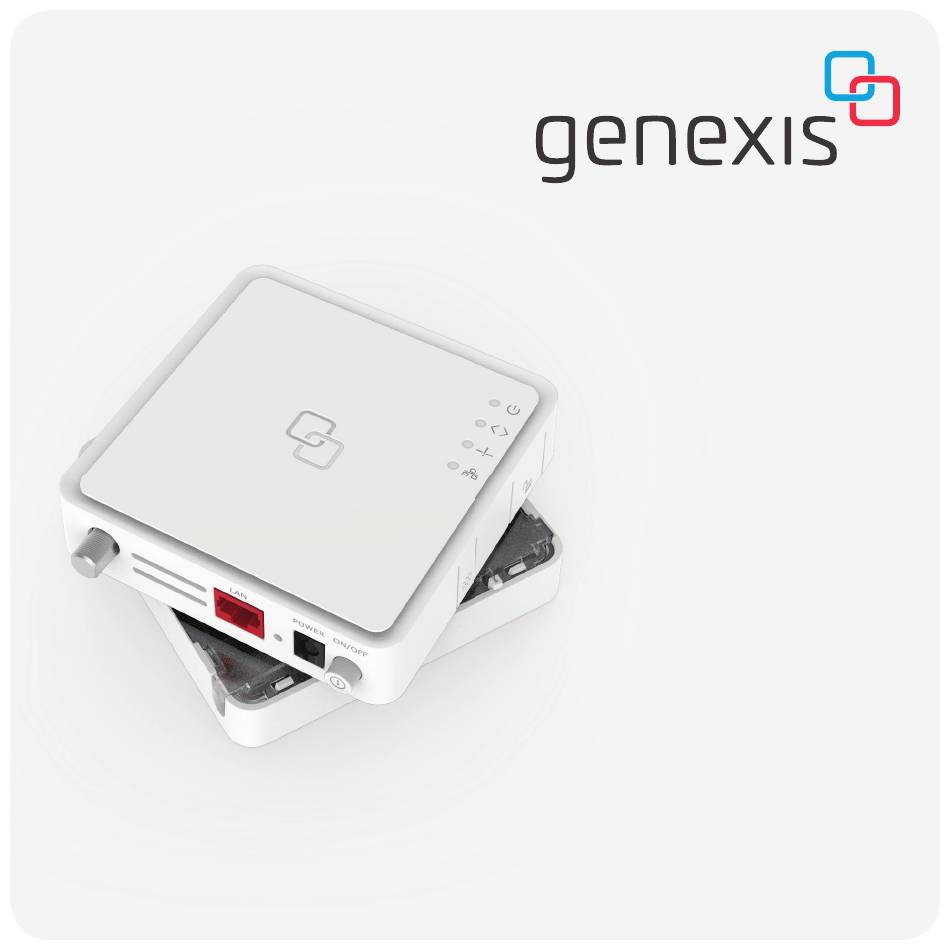

  • Page 1 G2172 FiberTwist–Series Installation Guide...

  • Page 2: Button Overview

    Button overview Port overview CATV port LAN port Power port Reset ON/OFF Unlock button button button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise LED dim button Dim LEDs – press and release to switch LEDs ON or OFF Reset button (recessed) ON/OFF button...

  • Page 3: Led Overview

    LED overview System Green – system ok Green (blinking) – booting – power off Uplink Green – GPON link ok Green (blinking) – GPON link establishing – no GPON link Optical signal – no optical signal Red (blinking) – no CATV signal –...
  • Page 4 • Rotate the Blind Cover counterclockwise till it blocks. Box contents Important: These instructions • Remove the Blind Cover from the baseplate (FTU) by pulling • Genexis FiberTwist (active device) need to be followed precisely and it towards yourself. • Power adapter uninterrupted.
  • Page 5 Remove dust cap Twist! • Take the FiberTwist out of the box. • Place the FiberTwist on the FTU as shown in the picture below, • The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. •...

  • Page 6: Eu Declaration Of Conformity

    • Connect CATV and LAN cable as required. • Connect the supplied power adapter to the FiberTwist and plug the adapter into Hereby, Genexis B. V . declares that the product FiberTwist-G2172 is in compliance a power socket. with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU and Delegated Directive 2015/863.
  • Page 7 Revision 1.0 August 2019, Copyright © 2019 Genexis B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.

This manual is also suitable for:

G2172
