EUROCOM W110ER Service Manual page 36

Disassembly

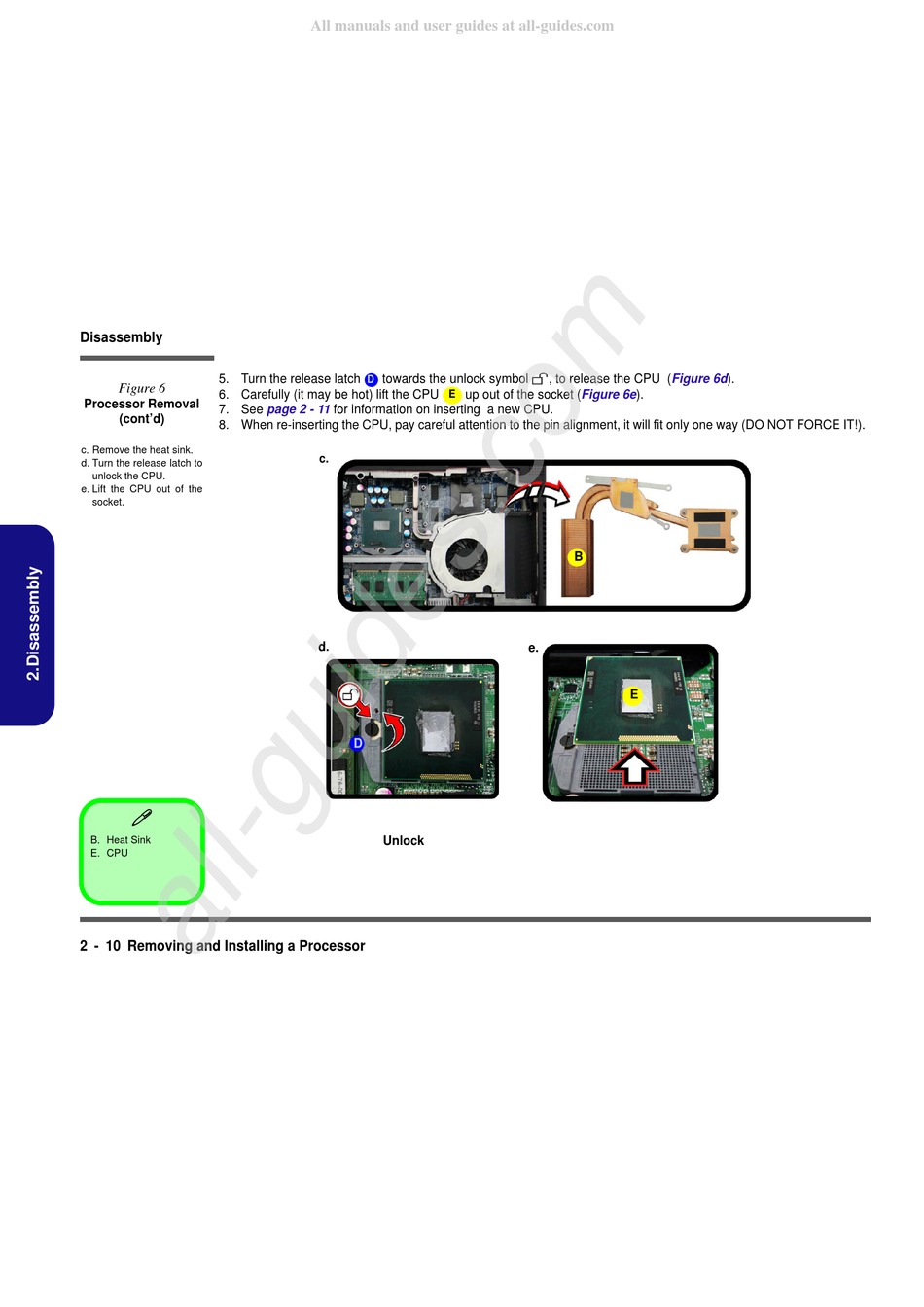

5. Turn the release latch
Figure 6
6. Carefully (it may be hot) lift the CPU
Processor Removal
7. See
(cont'd)
8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
c. Remove the heat sink.
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.

B. Heat Sink
E. CPU
2 - 10 Removing and Installing a Processor
All manuals and user guides at all-guides.com
towards the unlock symbol
D
page 2 - 11 for information on inserting a new CPU.
c.
d.
D
Unlock
, to release the CPU
up out of the socket (Figure 6e).
E
B
e.
(Figure 6d).
E
