EUROCOM W110ER Service Manual page 37

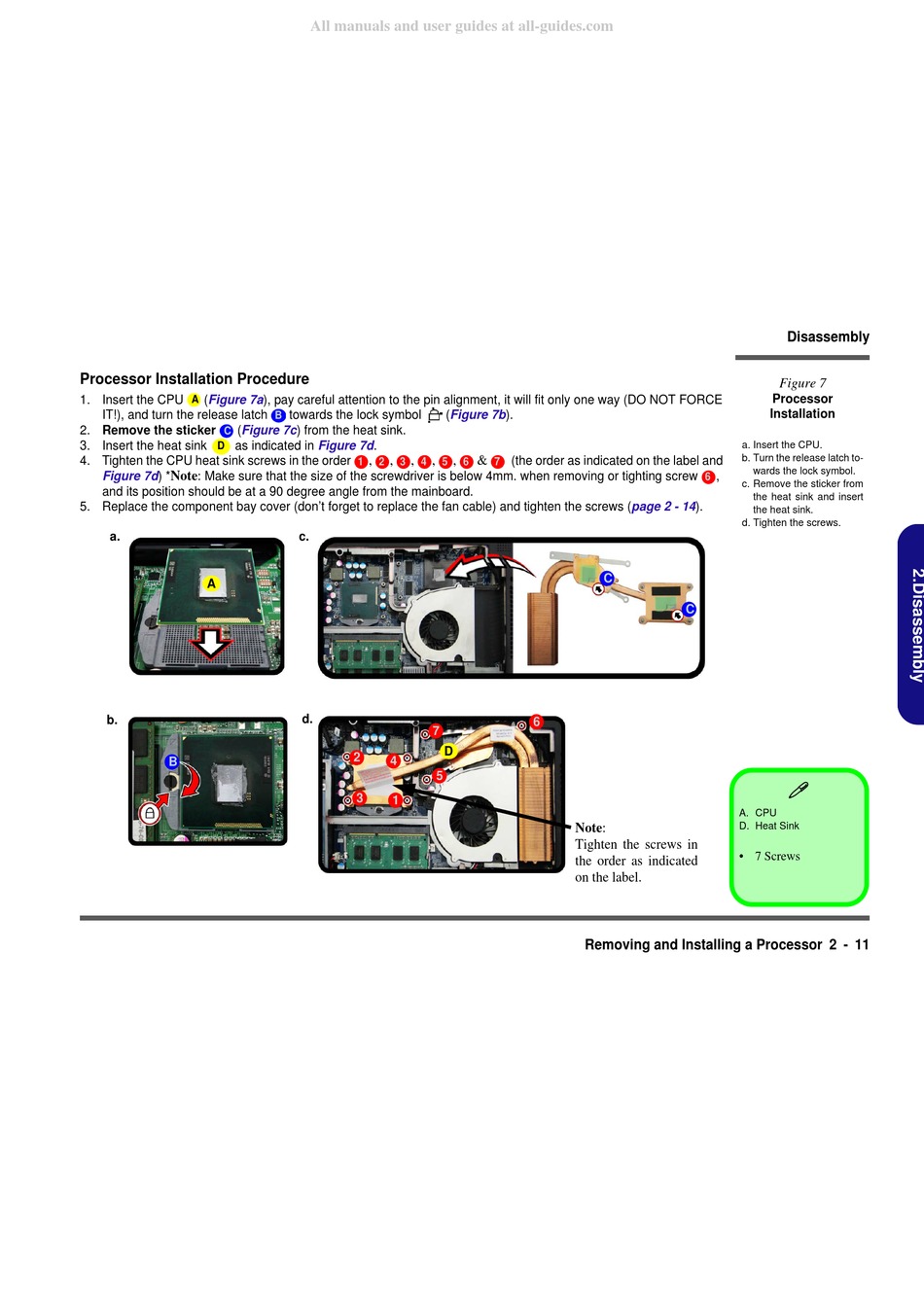

Processor Installation Procedure
1. Insert the CPU (Figure 7a), pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE
A
IT!), and turn the release latch
2. Remove the sticker (Figure
C
3. Insert the heat sink as indicated in
D
4. Tighten the CPU heat sink screws in the order
Figure 7d) * Note: Make sure that the size of the screwdriver is below 4mm. when removing or tighting screw
and its position should be at a 90 degree angle from the mainboard.
5. Replace the component bay cover (don't forget to replace the fan cable) and tighten the screws
a.
A
b.
B
All manuals and user guides at all-guides.com
towards the lock symbol (Figure
B
7c) from the heat sink.
Figure 7d.
, , , ,
1 2 3 4 5
c.
d.
7
D
2
4
5
3
1
7b).
, & (the order as indicated on the label and
6 7
(page 2 -
C
6
Note:
Tighten the screws in
the order as indicated
on the label.
Removing and Installing a Processor 2 - 11
Disassembly
Figure 7
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
,
6
c. Remove the sticker from
the heat sink and insert
14).
the heat sink.
d. Tighten the screws.
C

A. CPU
D. Heat Sink
• 7 Screws
