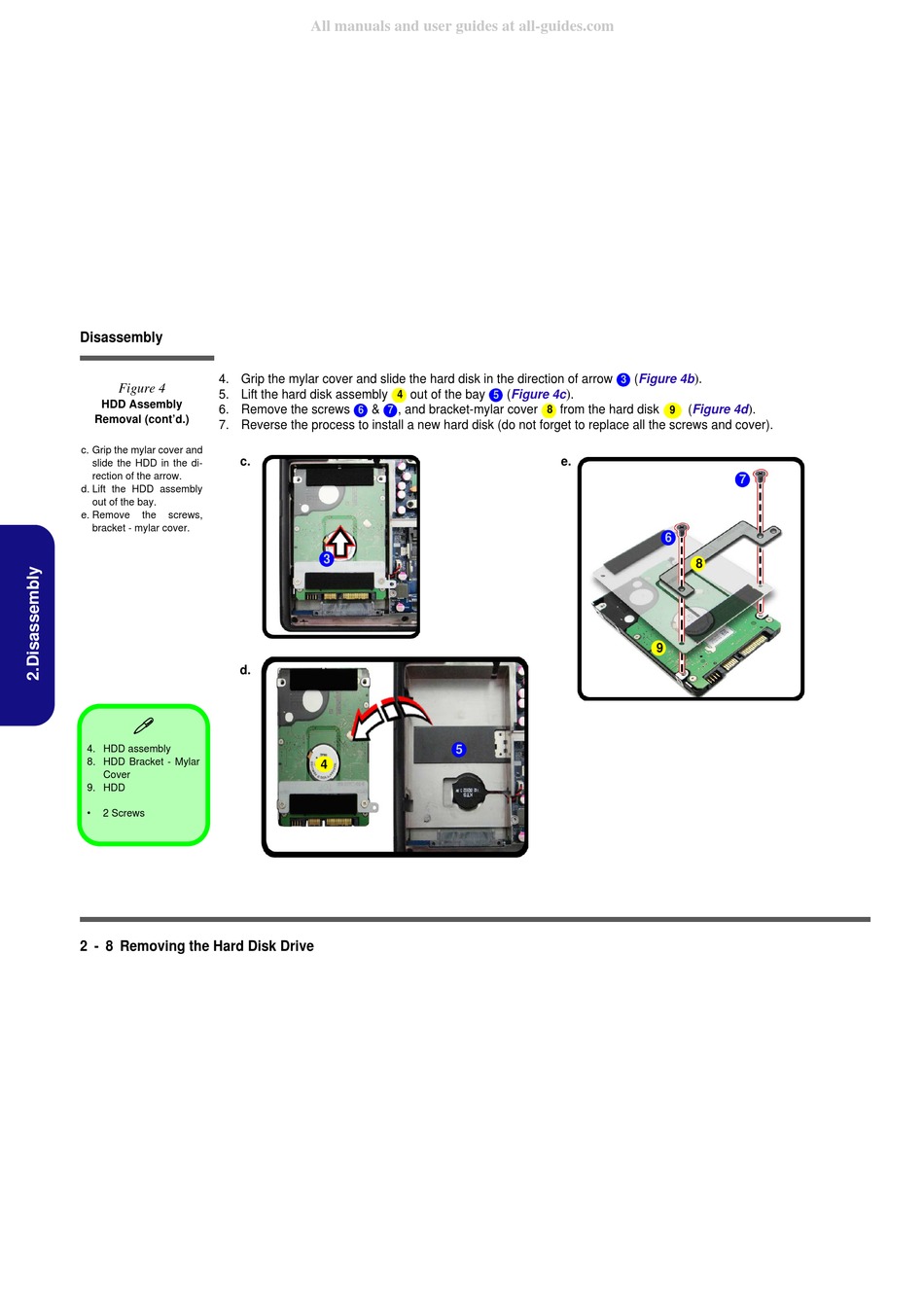

EUROCOM W110ER Service Manual page 34

Disassembly
4. Grip the mylar cover and slide the hard disk in the direction of arrow
Figure 4
5. Lift the hard disk assembly
HDD Assembly
6. Remove the screws
Removal (cont'd.)
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and cover).
c. Grip the mylar cover and
c.
slide the HDD in the di-
rection of the arrow.
d. Lift the HDD assembly
out of the bay.
e. Remove the screws,
bracket - mylar cover.
d.

4. HDD assembly
8. HDD Bracket - Mylar
Cover
9. HDD
• 2 Screws
2 - 8 Removing the Hard Disk Drive
All manuals and user guides at all-guides.com
out of the bay
6 4
& , and bracket-mylar cover
6 7
3
5
4
(Figure 4b
3
(Figure 4c ) .
5
from the hard disk
8
6
e.
6
9
10
).
(Figure 4d ) .
9
7
8
