Disassembly

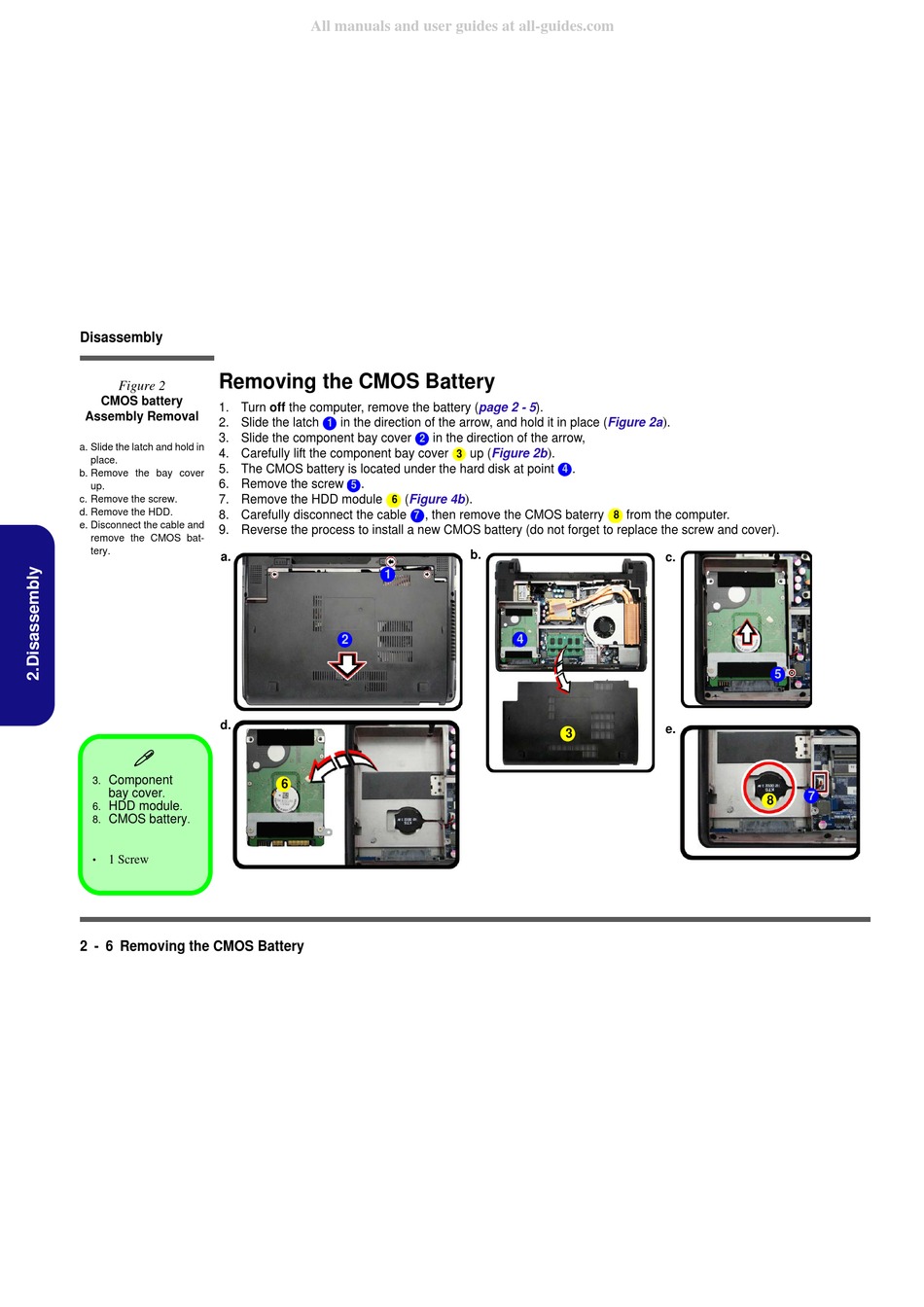

Removing the CMOS Battery

Figure 2
CMOS battery
1. Turn off the computer, remove the battery
Assembly Removal
2. Slide the latch
3. Slide the component bay cover
a. Slide the latch and hold in
4. Carefully lift the component bay cover
place.
5. The CMOS battery is located under the hard disk at point
b. Remove the bay cover
6. Remove the screw
up.
7. Remove the HDD module
c. Remove the screw.
d. Remove the HDD.
8. Carefully disconnect the cable
e. Disconnect the cable and
9. Reverse the process to install a new CMOS battery (do not forget to replace the screw and cover).
remove the CMOS bat-
tery.
a.
d.

Component
3.
bay cover
.
HDD module
6. .
CMOS battery
8. .
1 Screw
•
2 - 6 Removing the CMOS Battery
All manuals and user guides at all-guides.com
in the direction of the arrow, and hold it in place
1
in the direction of the arrow,
2
.
5
(Figure 4b
6
6
, then remove the CMOS baterry
7
1
2
6
(page 2 - 5).
(Figure 2a
up (Figure 2b ) .
3
.
4
).
from the computer.
8
6
b.
4
3
)
.
c.
5
e.
7
8
