Furuno 1724C Installation Manual

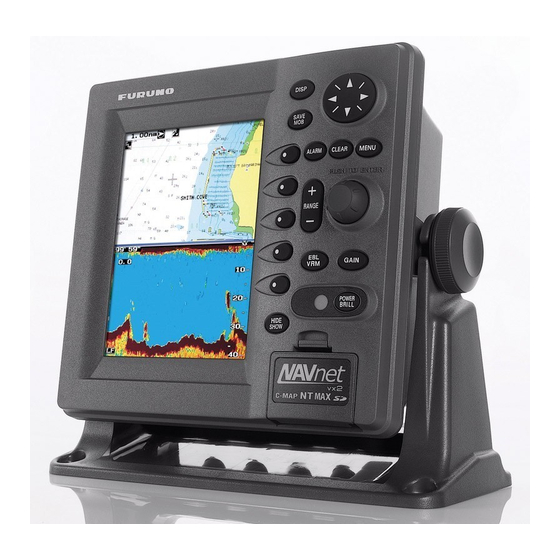

Marine radar and color video plotter

Hide thumbs Also See for 1724C:

Operator's manual (247 pages)

Installation manual (58 pages)

Specifications (10 pages)

Need help?

Do you have a question about the 1724C and is the answer not in the manual?

Questions and answers

Максим

May 22, 2025

Добрый день. Подскажите пожалуйста. Как подключить цифровой гирокурсоуказатель? Как его прописать в настройках?

Summary of Contents for Furuno 1724C

Page 1: Table Of Contents
3.2 Checking Magnetron Heater Voltage... 33 3.3 Remote Controller Setting ... 34 PACKING LISTS... A-1 OUTLINE DRAWINGS... D-1 INTERCONNECTION DIAGRAMS... S-1 All brand and product names are trademarks, registered trademarks or service marks of their respective holders. Installation Manual www.furuno.co.jp Back...
Page 2 : +81-(0)798-65-4200 All rights reserved. Printed in Japan Pub. No. IME-35550-E (HIMA ) MODEL1704C_GD-1720C The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer A : APR E : JUL . 16, 2009 *00015180914* *00015180914* *00015180914* *00015180914*...
Page 3: Safety Instructions
Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible - Ask your FURUNO representative or dealer to provide this feature. MODEL 1724C 1734C 0.35 m...
Page 4: Equipment Lists
For MODEL 1734C Remote controller, vinyl case, 000-089-885 battery, labels 000-089-887 For display unit For MODEL 1724C antenna unit, 000-089-848 5 m signal cable S03-87-5 For MODEL 1724C antenna unit, 000-089-849 10 m signal cable S03-87-10 For MODEL 1724C antenna unit,...
Page 5 Optional supply Name Type Rectifier PR-62 External OP03-136 buzzer MJ-A6SPF0014-010C MJ-A6SPF0014-050C MJ-A6SPF0014-100C MJ-A6SPF0014-200C MJ-A6SPF0014-300C MJ-A6SPF0012-050C MJ-A6SPF0012-100C Cable assy. MJ-A6SPF0003-050C MJ-A6SPF0009-100C MJ-A6SPF0007-100C MJ-A7SPF0007-050C MJ-A6SRMD/TM11AP 8-005 Remote RMC-100 controller set Mounting OP03-92 bracket (1) Mounting OP03-93 bracket (2) AIS Interface IF-1500AIS Code No. 000-013-484 For 100 VAC 000-013-485...
Page 6: System Configurations
AIS Interface AIS transponder IF-1500AIS* * Not required for AIS Transponder FA-150. Controller RMC-100 Other NavNet unit (GD-1720C, etc.) NavNet2 system MODEL 1724C/MODEL 1734C Antenna Unit (ex. MODEL 1724C) Display Unit RDP-148 Remote Network sounder ETR-6/10N ETR-30N 12-24 VDC GPS receiver...
Page 7 AIS Interface AIS transponder IF-1500AIS* * Not required for AIS Transponder FA-150. Display unit RDP-148 Other NavNet Unit (Model 1724C, etc.) : Standard : Option : Local supply GPS receiver GP-320B/330B Weather station Remote Controller RMC-100 Network Sounder ETR-6/10N 12 - 24 VDC...
Page 8 GP-320B/330B, Antenna Unit WS-200 Radar data Plotter data Sounder data Note: The picture disappears 10 seconds after the NavNet cable is disconnected from a "sub" NavNet display unit. Network Sounder Network Sounder ETR-6/10N ETR-6/10N ETR-30N ETR-30N (option) (option) Figure 2 (a) NavNet2 system, three-unit connection GP-320B/330B, Antenna Unit WS-200...
Page 9: Mounting
1. MOUNTING 1.1 Installation of Display Unit The display unit can be installed on a tabletop, on the overhead or flush mounted in a console or panel. Hard Cover Tabletop, overhead mounting method When selecting a mounting location for the display unit keep the following in mind: •...
Page 10 1.1.1 Mounting procedure Tabletop, overhead mounting Follow the procedure below to mount the display unit on a tabletop or the overhead. 1. Fix the hanger by four tapping screw. 2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts. 3.
Page 11 Flush mounting Note: Use supplied pan head screws when the thickness of the bulkhead is from 11 to 14 mm. For bulkhead which exceeds 14 mm in thickness the length of the pan head screws should be bulkhead thickness (A) plus 7.3±1.5 mm. Also the length of B should be max.
Page 12: Mounting Of Antenna Units
1.2 Mounting of Antenna Units 1.2.1 Mounting considerations When selecting a mounting location for the antenna unit keep in mind the following points. • Install the antenna unit on the hardtop, radar arch or on a mast on an appropriate platform.
Page 13 1.2.2 Mounting antenna unit of MODEL 1724C 1. Remove mounting hardware at the bottom of the antenna unit; four each of hex bolts (M10X20), spring washers and flat washers. Save the spring washers and flat washers to use them to fix the radome base to the platform, at step 3. If the thickness of the mounting platform is 5 mm or less also save the bolts.
Page 14 4. Unfasten four screws to remove the cover. Discard the packing material in the radome. Remove and discard the packing material. The mounting base is fitted with a snap holder, which may be used to hang the cover after removal. Use the hole next to screw hole inside the cover to hang it. a) Unfasten the snap assy.
Page 15 5. Unfasten the cable of the rotation detector from the cable clamps. 6. Unfasten 11 screws to dismount the shield plate. Discard screw marked with figure shown below. Shield plate Caution Caution: Be careful not to pinch the rotation detector cable when remounting the shield plate.
Page 16 Rubber gasket 8. Referring to the figure shown below, fasten the shield cable with screw (M4x10) on the chassis to ground the unit. Connect 10 pin connector here (J811). How to connect the antenna cable to the antenna unit Gasket Cable Gland Sectional view Rubber gasket...
Page 17 9. Attach EMI core (supplied) to antenna cable between cable ties. Set the fixing band to the EMI core. 10. Referring to the figure of "How to connect the antenna cable to the antenna Unit" on the previous page connect the 9-pin (J801) and 10-pin (J811) connectors of the antenna cable to the INT Board.
Page 18 1.2.3 Mounting antenna unit of MODEL 1734C 1. Open the antenna unit packing box carefully. 2. Unbolt the four bolts at the base of the radome to remove the radome cover. Radome cover The mounting surface must be parallel with the waterline and provided with five holes (four fixing holes and one cable entry) whose dimensions are shown in the outline drawing attached at the end of this manual.
Page 19 Effective thread length 25 mm Flat washer Spring washer How to fasten the radome base to the mounting platform Wiring and final preparation 4. Drill a hole of at least 20 millimeters diameter through the deck or bulkhead to run the signal cable between the antenna unit and the display unit.
Page 20 to one of the screws of the cable clamping plate Signal cable, antenna unit side J802 J801 J611 RF unit 9-pin connector: to J801 on MD-9208 4-pin connector: to J802 on MD-9208 13-pin connector: to J611 on IF-9215...
Page 21 10. Attach the EMC core supplied as shown below. Cable entrance Cable clamping plate EMC core E04SS251512 (Above cable clamping plate) 11. Fix the shield cover. Do not pinch the cable. 12. Attach the radome cover, aligning triangle mark on radome cover with that on radome base.
Page 22 03-018-9001-0 Support plate (1) 03-018-9005-0 Support plate (2) 03-018-9006-0 Bracket (1) 03-018-9002-1 Bracket (2) 03-018-9003-1 Fixing plate 03-018-9004-1 Mounting bracket 2 (for MODEL 1724C) Type: OP03-93 Code No.: 008-445-080 Part Hex. bolt M4X12 Hex. bolt M8X20 Mounting plate 03-018-9001-0 Support plate (1)
Page 23 Support plate (A) Assembling the mounting bracket (B) Fastening antenna to mounting bracket How to assemble and mount the optional mounting bracket...
Page 24: Wiring
2. WIRING 2.1 Standard Wiring All wirings are terminated at the rear of the display unit. The power cable is shipped with a 10A fuse (5A on GD-1720C) inserted in its fuse holder. This fuse is for use with a 12 VDC power supply. If you are using a 24 VDC power supply, replace the fuse with a 5A fuse (3A fuse on GD-1720C).
Page 25 Signal cable connection 1. Remove the waterproofing cover from the DJ-1 at the back of the display unit. 2. Connect the signal cable to DJ-1 on the rear panel of the display unit. Rubber cover DJ Connector Cable Boot-band DJ-1 Display unit 3.
Page 26 DATA1 to DATA3 ports These ports connect to the equipment shown in the table below. DATA1 (7P) GPS receiver GP-310B/320B, NMEA equipment Note: No sensor can be directly connected to the DATA3 port. This equipment can receive the following NMEA 0183 format sentences from other equipment.
Page 27: External Buzzer (Op03-136, Option) Connection
2.2 External Buzzer (OP03-136, option) Connection The optional external buzzer provides a louder alert when the guard alarm is violated. External buzzer Type: OP03-136 Code no.: 000-086-443 Further, you need the optional cable assy MJ-A7SPF0007-050C (w/7P connector, 5 m, code no. 000-154-028-10). 1.
Page 28: How To Connect With A Pc
2.3 How to Connect with a PC When connecting with the personal computer, prepare the optional cable assy MJ-A7SPF0007-050C and D-sub 9 pins plug (local supply), and connected them as follows. This function is not available with the GD-1720C. SHIELD D-SUB 9PIN MJ-A7SPF0007-050C cable connection for PC BLUE...
Page 29: Setting Up The Equipment
3. SETTING UP THE EQUIPMENT 3.1 Setting up with the Installation Wizard After you have installed the equipment, set up the equipment with the installation wizard. The wizard allows you to easily set up the NavNet network (choose source of radar, sounder and auxiliary), GPS, ports, etc.
Page 30 CAUTION: Ensure that the settings to be loaded are compatible with this NavNet unit. Improper settings will damage the equipment. 7. The screen for set up of units of measurement appears. RANGE UNIT nm, kt DEPTH UNIT TEMPERATURE UNIT °F WIND UNIT LOCAL TIME OFFSET +00:00...
Page 31 11. Choose DEVICE NUMBER, RADAR SOURCE or SOUNDER SOURCE as appropriate and then press the EDIT soft key. One of the following displays appears depending on your selection. DEVICE NUMBER ▲ 1 (IP:172.031.003.001) 2 (IP:172.031.003.002) 3 (IP:172.031.003.003) 4 (IP:172.031.003.004) ▼ 12.
Page 32 HEADING ADJUST 14. Choose ANTENNA TYPE and then press the EDIT soft key. ANTENNA TYPE (MODEL 1724C) (MODEL 1734C) 15. Choose the appropriate antenna type and then press the ENTER soft key. 16. Choose HEADING DATA and then press the EDIT soft key.
Page 33 20. Choose TUNING and then press the EDIT soft key. TUNING ▲ ▼ 21. Choose ON and then press the ENTER soft key. Then, the radar’s video and tuning are automatically adjusted. 22. After tuning has been completed, choose TIMING ADJUST and then press the EDIT soft key.
Page 34 25. The next step is to choose navigation data sources and calibrate navigation data. Press the NEXT soft key to show the NAV SETUP menu. POSITION SOURCE FURUNO BB GPS SPEED (STW) SOURCE TEMPERATURE SOURCE DETPH SOURCE...
Page 35 001-600 s, 001 s S180°-P180°, S000.0° -50 to +50%, 00% FURUNO BB GPS, NMEA: Select FURUNO BB GPS to show wind data fed from the WS-200. FURUNO BB GPS, NMEA: Select FURUNO BB GPS to show air temperature data fed from the WS-200.
Page 36 28. After setting up navigation equipment, press the NEXT soft key, and the GPS SETUP menu appears. This menu sets ups the FURUNO GPS receiver GP-320B/330B. If you do not have this equipment, press the NEXT soft key and go to step 31.
Page 37 GPS SETUP menu description (con’t from previous page) Item Spd/Cse During position fixing, ship’s velocity Smoothing (speed and course) is directly measured by receiving GPS satellite signals. The raw velocity data may change randomly depending on receiving conditions and other factors. You can reduce this random variation by increasing the smoothing.
Page 38 GPS SETUP menu description (con’t from previous page) Item Description Fix Mode Choose position fixing method: 2D (three satellites in view), 2D/3D (three or four satellites in view whichever is greater). Cold Start Clears the Almanac to receive the latest Almanac.
Page 39 32. Choose item and press the EDIT soft key. Choose appropriate setting and then press the ENTER soft key. Refer to the table and sentence description on the next page for details. 33. Press the NEXT key, and the DATA3 (PC/NMEA/EXT BUZZ) port setup menu appears. Set up this port similar to how you set up the DATA1 port.
Page 40 $GPGLL,3415.2345,N,13520.5301,E,152500.00 ,A*E7<CR><LF>$GPGLL,3415.2345,N,135 20.5301,E,152500.00,A*E7<CR><LF>$GPGLL ,3415.2345,N,13520.5301,E,152500.00,A* E7<CR><LF>$GPGLL,3415.2345,N,13520.530 1,E,152500.00,A*E7<CR><LF>$GPGLL,3415. 2345,N,13520.5301,E,152500.00,A*E7<CR> <LF>$GPGLL,3415.2345,N,13520.5301,E,15 2500.00,A*E7<CR><LF Installation wizard, port monitor display 34. Press the NEXT soft key, and the NMEA sentence selection window appears. Installation wizard, NMEA sentence selection window 35. Choose sentence to process and press the ON/OFF soft key to show ON (to output data) or “- -“...
Page 41: Checking Magnetron Heater Voltage
2. Turn on the power. Do not transmit the radar. 3. Connect a multimeter, set to 10VDC range, to appropriate test point on the MD Board (MODEL 1724C) or PTU Board (MODEL 1734C) Board in the antenna unit, referring to the table below for test points.
Page 42: Remote Controller Setting
3.3 Remote Controller Setting A remote controller can be set exclusively for use with a specific display unit, in the case of multiple NavNet display units. Set the remote controller ID mode desired on the menu and attach appropriate label (supplied with accessories) to the remote controller and display unit.
Page 50 Y. Hatai...
